be quiet! Pure Wings 2 80mm PWM BL037

Спецификации на be quiet! Pure Wings 2 80mm PWM BL037 socket: n/a 80 mm (вентилатори вентилатори)

80mm be quiet! Pure Wings 2 PWM, 4260052184387, BL037

PURE WINGS 2 80mm PWM
Outstanding price-performance ratio

Pure Wings 2 80mm PWM fans bring famous be quiet! silent cooling to entry level computing, yet are also appropriate for gaming and multimedia systems.

• 7 airflow-optimized fan blades reduce noise-generating turbulence
• Long life rifle-bearing gives an operating lifetime of 80,000 hours
• Even at maximum speed, operates at only 19.2 dB(A)
• PWM controlled fan speed through the motherboard
• German product conception, design and quality control
• 3-years manufacturer’s warranty

Pure Wings 2 80mm PWM fans offer outstanding reliability and quiet operation at great price-for-performance ratio. They are the ultimate reason to put well-known be quiet! silent cooling in your PC.

VERY QUIET OPERATION
Achieves a great price-for-performance ratio

The Pure Wings 2 80mm PWM fan operates at only 19.2dB(A) even at maximum speed. The perfect choice for silent home and office PCs as well as gaming and multimedia systems.

SILENCE-OPTIMIZED FAN BLADES
For even better cooling

Thanks to its surface-optimized fan blades the airflow is enhanced, noise-generating turbulences are minimized and the air pressure is increased. This feature is the key to effective cooling.

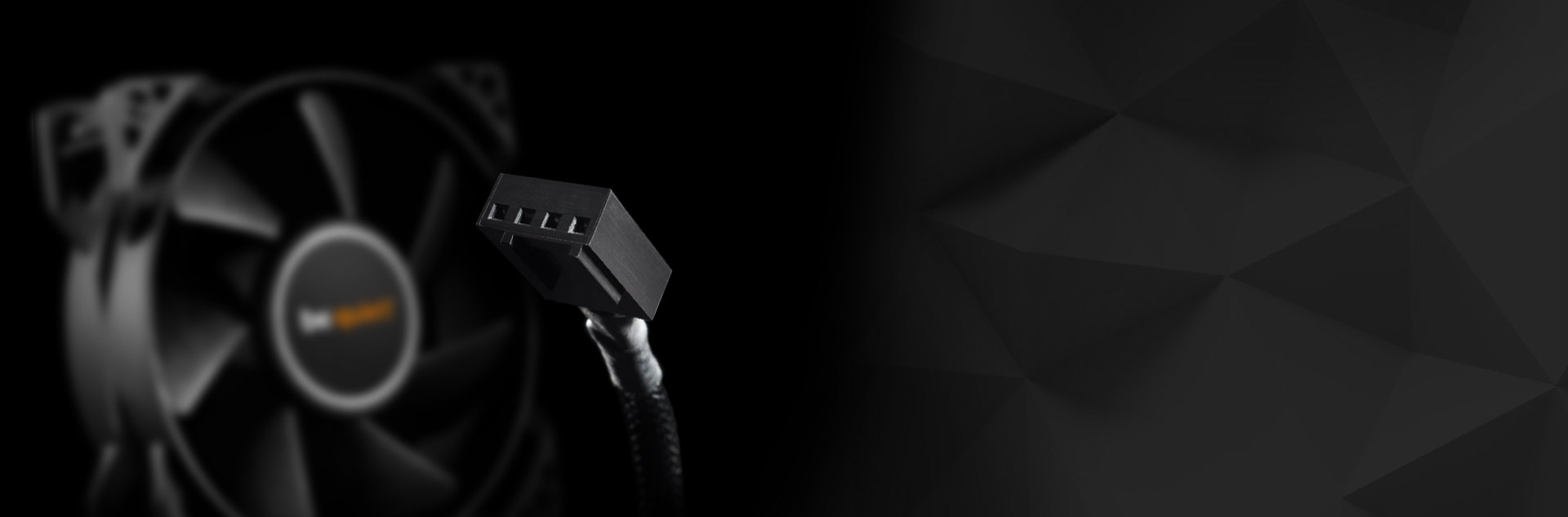

VARIABLE FAN SPEED FUNCTION
Varies the fan speed and noise level of the fan

Pulse Width Modulation (PWM) allows compatible 4-pin controllers - including those built into many motherboards - to intelligently vary the speed and thus the noise level of the fan. With PWM your system can ramp up the cooling when it’s needed, or operate in maximum quiet mode when it’s not.

General data

• Model: Pure Wings 2 80mm PWM
• Dimensions (mm) 80
• Color option: Black
• Lighting: -
• Fan speed at 100% PWM / 12V (rpm): 1900
• Noise level at 100% PWM / 12V (dB(A)): 19.2
• Airflow at 100% PWM / 12V (CFM / m3/h): 26.3 / 44.45
• Air Pressure at 100% PWM / 12V (mm H2O) 1.85

Mechanical specifications

• Dimensions (L x W x H), (mm): 80 x 25 x 80
• Weight incl. fixed cables (g): 72
• Bearing technology: Rifle
• Motor technology: 4-pole fan motor
• Push pin fixing -
• Screw fixing: ✓

Cables / Connectors

• Daisy-chain compatible: -
• Lighting connector: -
• Connector: 4-pin PWM
• Cable length (mm): 460
• Cable sleeve: -

Performance / Noise

• Airflow at 100% PWM / 12V (CFM / m3/h): 26.3 / 44.45
• Air Pressure at 100% PWM / 12V (mm H2O) 1.85
• Noise level at 100% PWM / 12V (dB(A)): 19.2
• Lifespan (h / 25°C) 80,000
• Zero RPM mode: -

Electrical specifications

• Rated Voltage DC (V): 12
• Operating Voltage DC (V): 5 - 12
• Input current (A): 0.08
• Safety current (A): 0.14
• Input power (W) 1.68
• Rated Current LED (A): -

Accessories

• 3-pin to 4-pin 12V-connector: -
• 12V to 7V adapter: -
• 12V to 5V adapter: -
• Screws: 4
• Push pins: -
• hard plastic washer -
• Others: -

Safety certification

• Approvals: CE / TÜV / UL

Environmental directives

• RoHS: ✓
• WEEE: ✓
• Triman: ✓

Service

• Warranty (Years): 3
• International hotline / free of charge: ✓ / DE, FR

Logistics data and RRP

• Article number: BL037
• EAN code: 4260052184387
• Dimensions, package (L x W x H), (mm): 115 x 27 x 82
• Gross weight, package (kg): 0.088
• Pieces per packaging unit: 153
• Dimensions, shipping box (L x W x H), (mm): 640 x 390 x 300
• Gross weight, shipping box (kg) 23.4
• RRP (€) 10.50
