be quiet! SILENT WINGS PRO 4 White 140mm PWM

Спецификации на be quiet! SILENT WINGS PRO 4 White 140mm PWM socket: n/a 140 mm (вентилатори вентилатори)

140mm be quiet! SILENT WINGS PRO 4 White PWM, 4260052191101, BL119

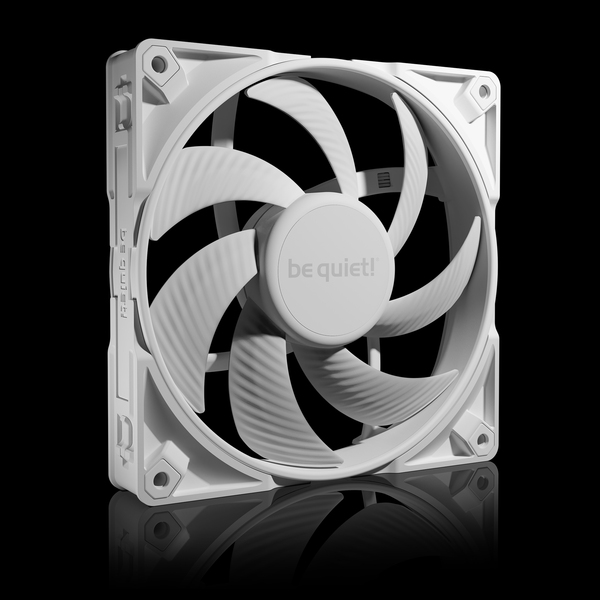

SILENT WINGS PRO 4 140mm PWM White
Legendary silence, epic performance and features

Silent Wings Pro 4 140mm PWM White is the most progressive, performant and versatile fan by be quiet!

• Optimized fan blades for the highest performance on radiators and heat sinks
• Speed switch allows changing maximum PWM speed between medium-speed, high-speed and ultra-high-speed (up to 2400 rpm)
• Small tip clearance and a fan frame with a funnel-shaped air outlet for extremely high air pressure
• Virtually inaudible operation at regular speed
• 6-pole fan motor and fluid-dynamic bearing for less vibration and very smooth operations
• Individual mounting systems for use as a case fan or with a radiator

IMPROVED ON ALL LEVELS
Altered blade arrangement for new generation performance

The fan blades are what makes a fan. It is for this reason that the fan blades of Silent Wings Pro 4 140mm PWM White have been developed newly from scratch.

The new blade arrangement enables a performance second to none for all possible operations. Be it in a case, on radiators or heat sinks.

OPTIMIZED FOR HIGH-END PERFORMANCE
Minimum distance for maximum air pressure

Silent Wings Pro 4 140mm PWM White makes for extraordinary air pressure and therefor, significantly increases the system’s performance.

The decreased distance between the fan blades and the frame enables an extraordinarily high air pressure. By that, the Silent Wings Pro 4 140mm PWM White allows the user to run even the most demanding applications.

SPEED SWITCH
3 speed options for any possible application

The speed switch makes switching between medium, high-speed and ultra-high-speed of maximum RPM levels quick and easy.

The Silent Wings Pro 4 140mm PWM White alters its application with a simple slide to the right. Medium-speed is suitable for any operation that requires regular cooling performance. High-speed lets the fan spin faster, providing more cooling power.

Ultra-high-speed ultimately offers enough rpm to cool even the most demanding hardware in high-end PC builds

General data

• Model: Silent Wings Pro 4 140mm PWM White
• Dimensions (mm) 140
• Color option: White
• Lighting: -
• Fan speed at 100% PWM / 12V (rpm): 2400
• Noise level at 100% PWM / 12V (dB(A)): 36.8
• Airflow at 100% PWM / 12V (CFM / m3/h): 97.4 / 165.5
• Air Pressure at 100% PWM / 12V (mm H2O) 3.64

Infographics

• Mechanical specifications
• Dimensions (L x W x H), (mm): 140 x 25 x 140
• Weight incl. fixed cables (g): 258
• Bearing technology: FDB
• Motor technology: 6-pole fan motor
• Push pin fixing ✓
• Screw fixing: ✓

Cables / Connectors

• Daisy-chain compatible: -
• Lighting connector: -
• Connector: 4-pin PWM
• Cable length (mm): 500
• Cable sleeve: ✓

Performance / Noise

• Airflow at 100% PWM / 12V (CFM / m3/h): 97.4 / 165.5
• Air Pressure at 100% PWM / 12V (mm H2O) 3.64
• Noise level at 100% PWM / 12V (dB(A)): 36.8
• Lifespan (h / 25°C) 300,000
• Zero RPM mode: ✓

Electrical specifications

• Rated Voltage DC (V): 12
• Operating Voltage DC (V): 7 - 13.2
• Input current (A): 0.50
• Safety current (A): 0.50
• Input power (W) 6.0
• Rated Current LED (A): -

Accessories

• 3-pin to 4-pin 12V-connector: -
• 12V to 7V adapter: -
• 12V to 5V adapter: -
• Screws: 4
• Push pins: 4
• hard plastic washer 4
• Others: Rubber & hard plastic & radiator mountings

Safety certification

• Approvals: CE / RoHS / RU / UKCA / TÜV / WEEE
• Environmental directives
  • RoHS: ✓
  • WEEE: ✓
  • Triman: ✓

Service

• International hotline / free of charge: ✓ / DE, FR, US
