Coolermaster ELITE GOLD 750FM 750W (80 plus Gold)

Още за Coolermaster ELITE GOLD 750FM 750W

CoolerMaster PSU ELITE GOLD 750FM 750Watt, 4719512162361, MPX-7505-AFAG-BEU

Essential Gold Power for Everyday Gaming Builds
Elite Gold 750

• Supports ATX 3.1 and PCIe Gen 5.1 standards
• Ideal for RTX 50 GPUs
• Stable performance under high loads at up to 40°C
• Quiet rifle bearing fan for efficient cooling and low noise
• 750W output with 80 Plus Gold-certified efficiency
• Fully modular embossed cable design

ESSENTIAL GOLD POWER FOR EVERYDAY GAMING BUILDS

Cooler Master Elite Gold 750 is designed for reliable everyday gaming builds. With full ATX 3.1 and PCIe 5.1 support, it ensures stable performance and compatibility with the latest and upcoming mid-range GPUs. Offering 80 Plus Gold efficiency, dependable operation at up to 40°C, and a quiet rifle bearing fan, it delivers efficient and quiet power.

A compact 140mm form factor makes installation easy across a wide range of cases, while fully modular embossed cables simplify cable management. Backed by a 10-year warranty, the Elite Gold 750 provides lasting confidence and stability for your system.

HIGH TEMPERATURE RESILIENCE

Operates reliably at up to 40°C, perfect for extended gaming, rendering, and overclocking.

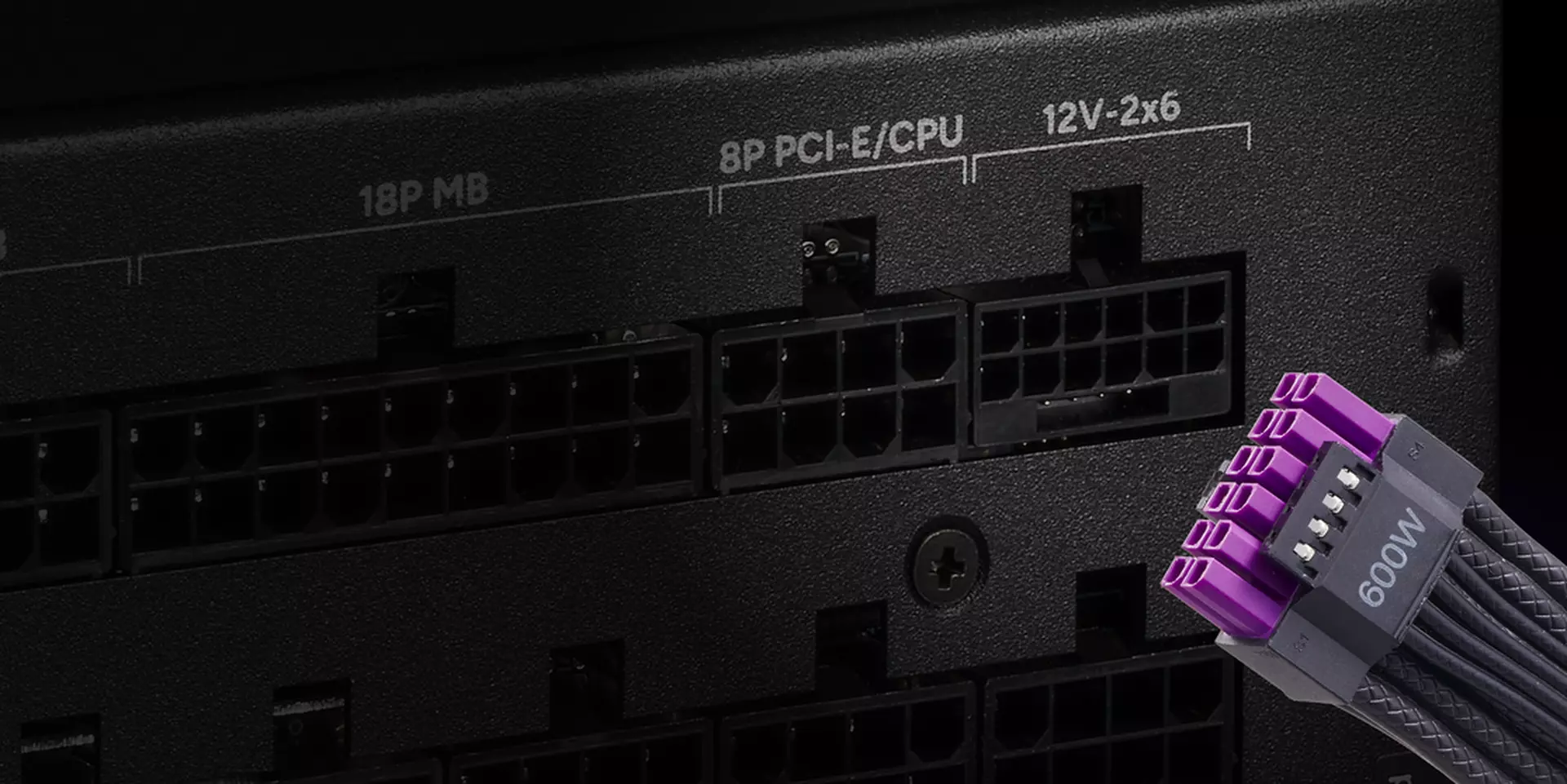

Compatible with ATX 3.1 and PCIe Gen 5.1

ATX 3.1 delivers tighter voltage and current regulation with peak power support up to 200% of its rated output, making the Elite Gold 750 ready for the latest and upcoming mid-range GPUs.

*All performance stats confirmed in 25°C ambient temperature testing.

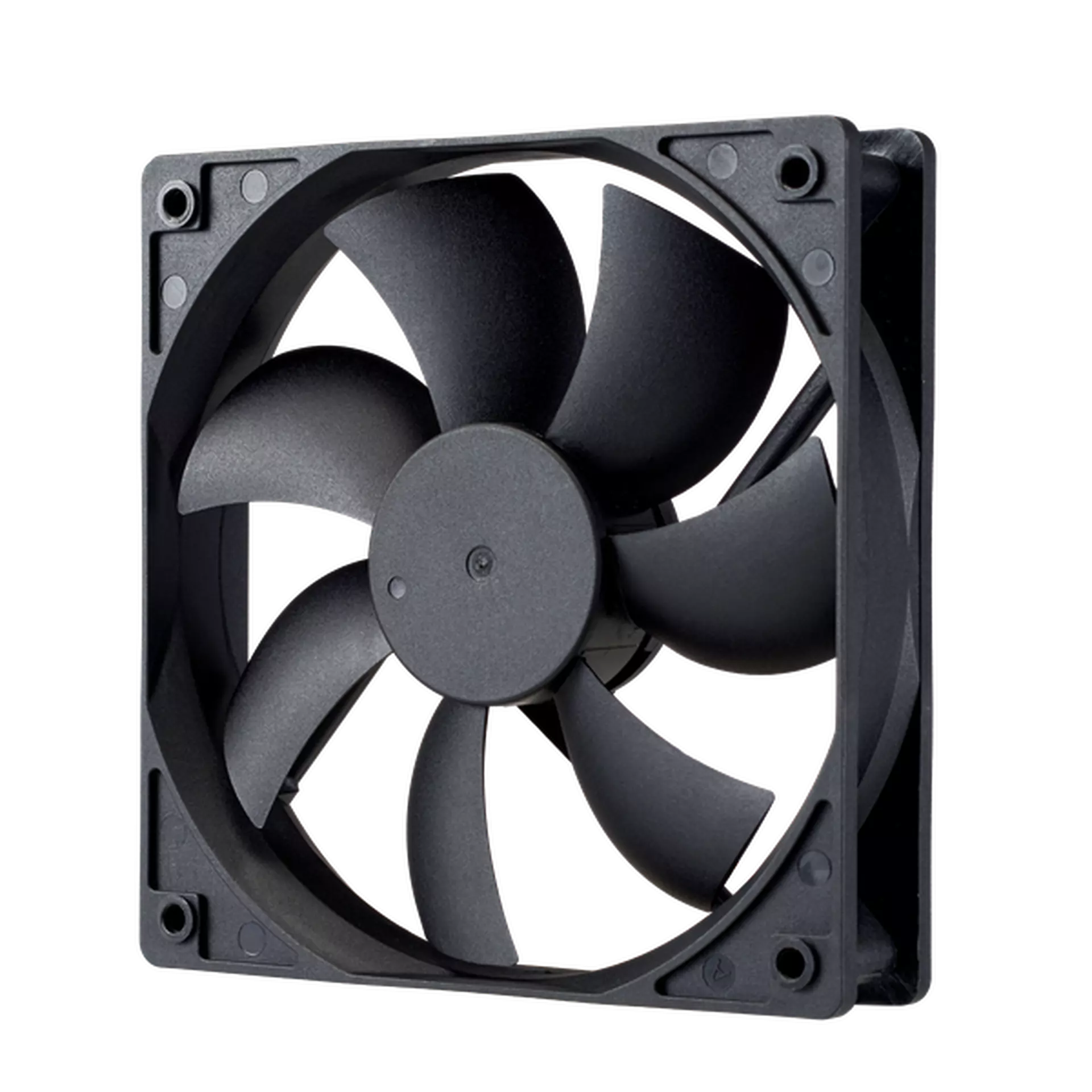

RIFLE BEARING FAN

The rifle bearing fan offers a longer lifespan while providing better noise reduction for consistent, reliable cooling.

*All performance stats confirmed in 25°C ambient temperature testing.

80 PLUS GOLD CERTIFIED EFFICIENCY

Cooler Master Elite Gold 750 achieves over 90% efficiency at typical loads, helping reduce energy waste and minimize heat generation.

*All performance stats confirmed in 25°C ambient temperature testing.

COMPACT FORM FACTOR

Unlike typical high-wattage PSUs that extend beyond 150mm, the Elite Gold’s compact design at 150mm or less ensures easy installation across a wide range of cases, making it ideal for space-conscious PC builds.​

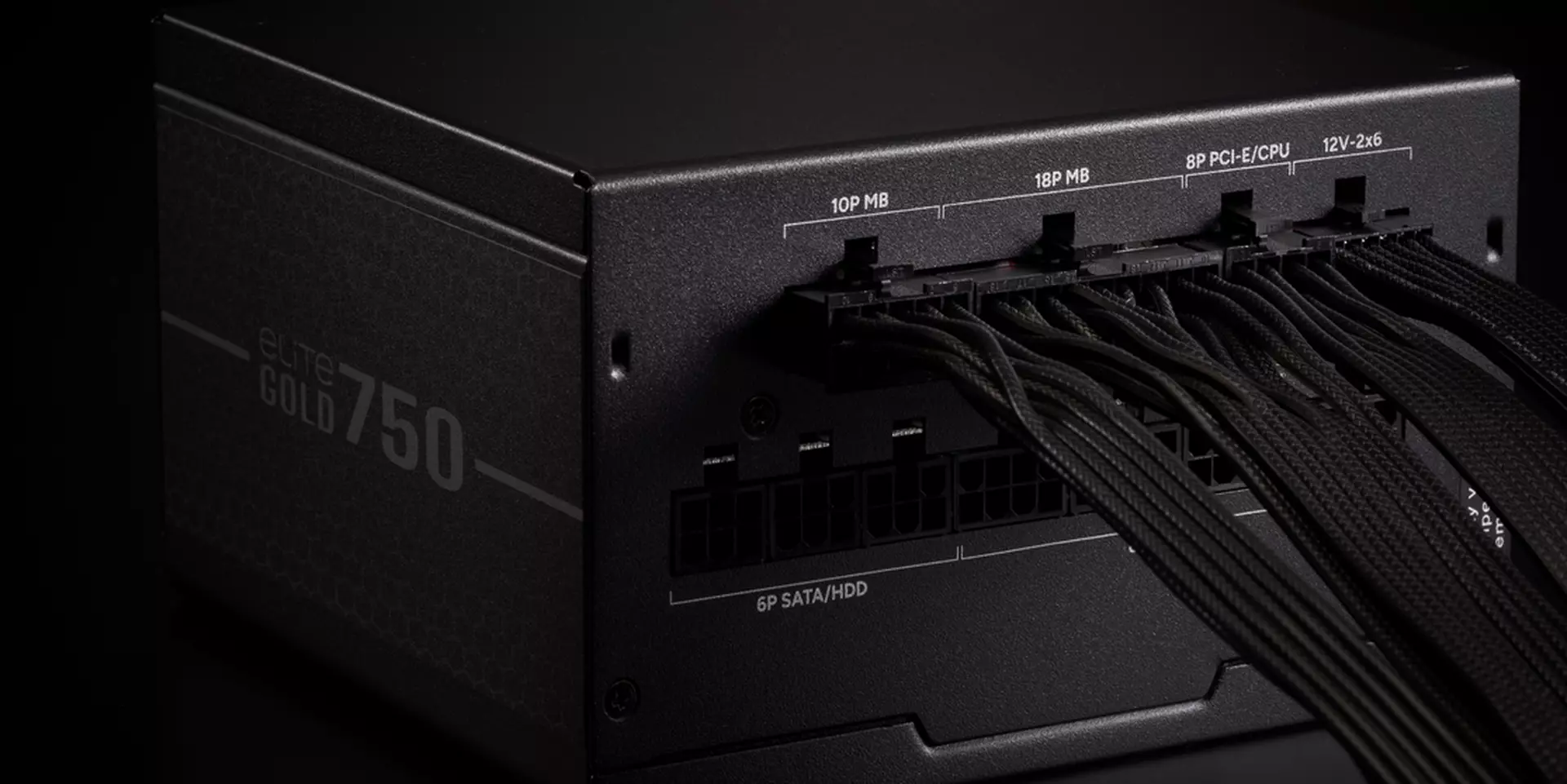

Fully Modular Embossed Cable Design

The fully modular design comes with flat black cables that can be tailored to each build, offering enhanced grip and a premium look for easier management and a cleaner overall setup.

*All performance stats confirmed in 25°C ambient temperature testing.

Specifications

• Product Name ELITE GOLD 750
• Model MPX-7505-AFAG
• ATX Version ATX 12V Ver. 3.1
• PFC Active PFC
• Input Voltage 100-240V
• Input Current 5 ~ 10A
• Input Frequency 50-60Hz
• Dimensions (L x W x H) 140 x 150 x 86 mm
• Fan Size 120mm
• Fan Bearing Rifle bearing
• Efficiency ≥90% @ Typical Load
• 80 PLUS Rating 80 PLUS Gold
• ErP 2014 Lot 3 Yes
• Operating Temperature 0-40°C
• Power Good Signal 100 - 150 ms
• Hold Up Time ≥ 11ms @ 100% Load
• MTBF >100,000 hours @ 25℃ ambient
• Protections UVP / OVP / OPP / OTP / SCP
• Regulatory cTUV us, CB, CE, FCC, BSMI, CCC, RCM, UKCA, BIS, RoHS2.0
• ATX 24 Pin Connectors x1 = 1 (550mm)
• EPS 4+4 Pin / EPS 8 Pin Connectors x2 = 1 (600+120mm)
• SATA & Peripheral 4 Pin Connectors X4(s) + x2(p) = 2 [400(s)+120(s)+120(p) mm]
• PCI-e 6+2 Pin Connectors x2 = 1 (500+120mm)
• 12+4 Pin Connectors x1 = 1 (650mm)
• Series Elite Series
• Form Factor ATX
• Watts 750W
• Modular Fully Modular
• 80 Plus Efficiency Gold

Гаранционен срок: 60 месеца
* Ако производителя дава по-голям гаранционен срок, гаранцията се поема от производителя, след изтичането на гаранцията дадена от София Компютърс.
