be quiet! PURE POWER 13 M 750W BP026EU FM 80+ Gold 750W (80 plus Gold)

Още за be quiet! PURE POWER 13 M 750W BP026EU FM 80+ Gold 750W

750W be quiet! PURE POWER 13 M 750W BP026EU 80+ Gold, 4260052192184

Exceptional quiet, superior features

Pure Power 13 M 750W is an ATX 3.1 compliant and PCIe 5.1 compatible power supply with semi-passive cooling. It offers peerless dependability with best-in-class features. Pure Power 13 M 750W offers the best combination of features with outstanding compatibility.

• 80 PLUS® Gold efficiency (up to 94.2%)
• ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors

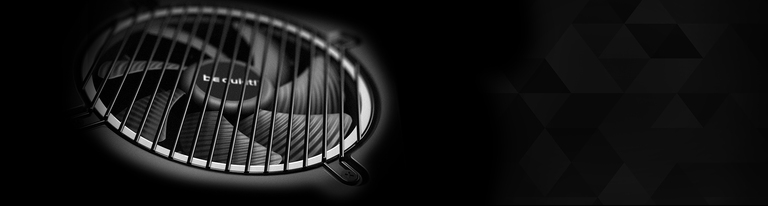

• Exceptionally silent semi-passive 120mm be quiet! fan
• Semi-passive construction for quiet and energy-saving operation
• LLC technology for advanced stability and voltage regulation
• One massive high-performance 12V-rail
• One PCIe 5.1 12V-2x6 600W and 4 PCIe 6+2 connectors for high-end GPUs

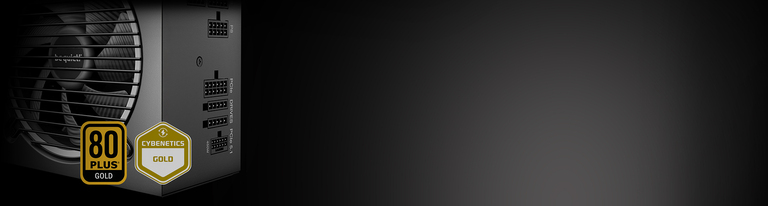

80 PLUS® GOLD CERTIFIED
Very high operating efficiency

Pure Power 13 M 750W is certified 80 PLUS Gold with an outstanding efficiency rating of up to 94.2%. The most compelling benefit: lower power consumption, consequently lower costs, and above all a cooler as well as quieter operation. Pure Power 13 M 750W is always the correct choice for quiet systems and gaming PCs!

FUTURE-PROOF YOUR SYSTEM
Fulfills all ATX 3.1 specifications

Pure Power 13 M 750W is an ATX 3.1 PSU and comes with both native integration of the 12V-2x6 connector for next-generation PCIe 5.1 graphics cards, and 2 PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful systems of today and the ones to come.

THE NEW STANDARD OF POWER
For massive transient loads

Pure Power 13 M offers 750W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Pure Power 13 M 750W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.

General data

• Model: PURE POWER 13 M | 750W
• Continuous power (W): 750
• Peak power (W): 820
• Form factor ATX 3.1
• Form factor EPS 12V Version 2.92
• Topology: LLC + SR + DC/DC
• Digitally controlled: -
• Voltage (Vac): 100 - 240
• Frequency (Hz): 50 - 60
• Input current (A): 10 / 5
• Power factor at 100% load: >0.98
• Modern standby: да
• Power consumption in standby (W): <0.1
• Average life time (h / 25°C): >100,000
• Operating temperature up to (°C): 40

Efficiency

• 80 PLUS certification: Gold
• Cybenetics ETA: -
• Efficiency (%) at 230V, 2% load 71.9
• Efficiency (%) at 230V, 10% load: 90.6
• Efficiency (%) at 230V, 20% load: 93.4
• Efficiency (%) at 230V, 50% load: 94.3
• Efficiency (%) at 230V, 100% load: 92.6

Fan and cooling technology

• Cybenetics LAMBDA: -
• Fan Silence-optimized be quiet! fan
• Fan size (mm): 120
• Bearing technology: Rifle
• Motor technology: 4-pole fan motor
• Max. fan speed (rpm): 1800
• dB(A) at 10% load: 7.2
• dB(A) at 20% load: 7.2
• dB(A) at 50% load: 8.5
• dB(A) at 100% load: 16.5

Output

• Multi-rail operation (12V rails): -
• 12V single rail operation: да
• Overclocking key: -
• +3.3V (A): 20
• +5V (A) 20
• +12V1 (A): 62.5
• +12V2 (A): N/A
• +12V3 (A): N/A
• +12V4 (A): N/A
• +12V5 (A): N/A
• +12V6 (A): N/A
• -12V (A): 0,3
• +5Vsb (A): 3
• Max. combined power 12V (W) 750
• Max. combined power 12V-2x6 (W) 600
• Max. combined power 3.3V + 5V (W): 120
• Hold-up time at 100% load (ms): 20.9
• Hold-up time at 80% load (ms): 28.62
• Power good signal (ms): 100 - 150

Cables and connectors

• Modular cables: да
• Sleeved cables: да
• Flat cables да
• Maximum cable length (cm): 95
• Cable length to motherboard (cm): 55
• No. of cables: 8
• ATX-Motherboard (20+4-pin): 1
• P4+4 (CPU): 1
• P8 (CPU): 1
• P4 (CPU): -
• 12V-2x6 cables: 1
• PCI-e 6+2-pin (GPU) 4
• PCI-e 6-pin (GPU): -
• SATA: 6
• PATA: 2
• FDD (Floppy): -

Protection

• OTP (over temperature protection): да
• OCP (over current protection): да
• OPP (over power protection) да
• SCP (short circuit protection): да
• OVP (over Voltage protection): да
• UVP (under Voltage protection): да
• SIP (Surge & Inrush protection) да

Safety certification

• BSMI: да
• CB: да
• CCC да
• CE: да
• cRUus: -
• cTUVus: да
• CU: да
• FCC да
• RCM да
• TÜV да
• UKCA: да
• IRAM: -

Environmental directives

• Energy Star 8.0
• ErP да
• WEEE: да
• RoHS: да
• Triman: -

Scope of delivery

• Thumb screws: -
• Screws: да
• Cable ties: да
• Velcro cable ties: -
• User manual languages: CN, DE, EN, ES, FR, JP, PL, RU, TW
• OCK slot bracket with switch / OCK jumper: -
• SFX-to-ATX adapter bracket: -

Casing

• Dimensions without cable (L x W x H), (mm): 160 x 150 x 86
• Weight (kg) 2.46
• Color: Black

Service

• Warranty (Years): 10
• Express replacement service in first year: -
• International hotline / free of charge: да / DE, FR

Logistics data and RRP

• Article number: BP026EU
• EAN code: 4260052192184
• Dimensions, package (L x W x H), (mm): 320 x 210 x 133
• Gross weight, package (kg): 3.2
• Pieces per packaging unit: 6
• Dimensions, shipping box (L x W x H), (mm): 580 x 325 x 233
• Gross weight, shipping box (kg) 21.5
• RRP (€) 109.90

Гаранционен срок: 36 месеца
* Ако производителя дава по-голям гаранционен срок, гаранцията се поема от производителя, след изтичането на гаранцията дадена от София Компютърс.
