Logitech Sight Tabletop 960-001510

Спецификации на конферентни системи Logitech Sight Tabletop 960-001510 8.3Mpx

Logitech Sight Tabletop companion camera 960-001510 GRAPHITE, 97855181596, WW-9004

Logitech Sight

Tabletop companion camera with intelligent multi-participant framing. Get the best front-and-center view of the room, from anywhere.

TAKE A SEAT AT THE TABLE

AI-powered meeting room camera that helps remote attendees feel like they’re actually seated at the table.

FRONT AND CENTER

Add a tabletop perspective to your front-of-room camera to deliver a better, more inclusive hybrid meeting experience.

Explore Logitech Sight

While the camera is capable of framing individuals, it encounters difficulty when people block the view of those behind them, and is unable to maintain a head-on perspective when participants turn their faces away from the front camera.

While the camera is able to capture in-room participants talking to each other around the table, it’s unable to maintain a head-on perspective when participants turn their faces back to the front of the room.

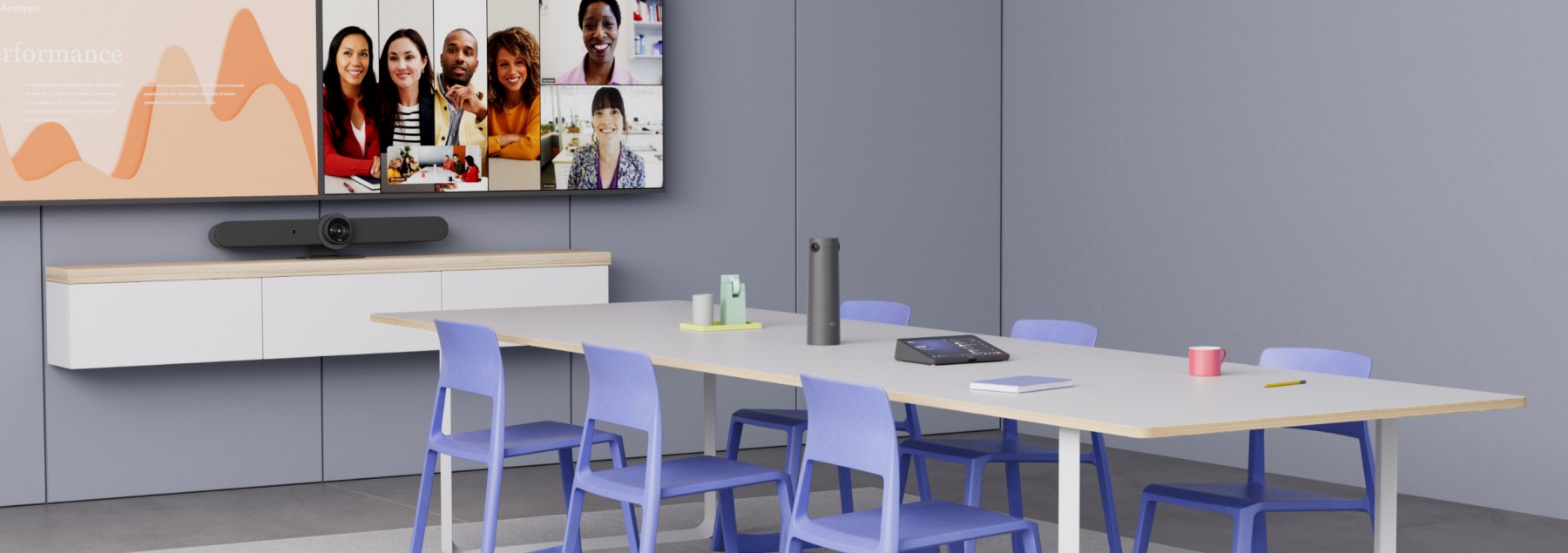

With Rally Bar at the front of the room, and Sight at the center of the table, you maintain a consistent front-facing view of in-person interactions as the conversation flows between in-room and remote participants.

TWO VIEWPOINTS.
A BETTER PERSPECTIVE.

A new approach combines Sight at the table with the front-of-room video bar to show the best angle of meeting room interactions.

WORKS WITH YOUR PLATFORM OF CHOICE

Sight integrates with leading video conferencing platforms to enable even better hybrid meetings.2

Dimensions

• Table-mounted
• Height: 299.0 mm
• Width: 169 mm
• Depth: 169 mm

Grommet-mounted

• Height: 291.2 mm
• Width: 93.4 mm
• Depth: 93.4 mm
• Grommet hole 25 mm or larger
• Weight: 1.5 kg

Compatibility

• Power type: 802.3at Type 2 "PoE+" power or equivalent power supply (user supplied)
• CAT Cable: Cat6 or greater
• Maximum CAT Cable Length: Between Sight Dongle and Sight: 40 m
• USB Mode: Windows 10, Windows® 11 or later, macOS (two most recent versions)
• Appliance Mode: Room solution software license (not included), Rally Bar or Rally Bar Mini
• Latest version of Logitech Collab OS

PORTS AND INTERFACES

• 1 x RJ45 (audio/video data over USB)
• 1 x RJ45 (Power Over Ethernet)
• 1 x RJ45 (Daisychain - Rally Mic Pods)

Technical Specifications

Video Platform Compatibility

• Integration and feature compatibility will vary by platform. For more details, see www.logitech.com/prosupport/sight-compatibility.

General Specifications

• Built-in Components
  • 7 beamforming microphones, dual lens camera, Logitech Collab OS platform
• Device Management
  • Logitech Sync
• Camera
  • Sensor resolution: 4K
  • Zoom: X1
  • Horizontal Field of View: 315°
  • Vertical Field of View: 97°
  • Diagonal Field of View: 180°
  • Focal Length: 1.87 mm
  • Depth of Field: 50 cm-5 m
  • Frame Rate (max): 60 fps
• Microphone Specifications
  • Beamforming Elements: 7 omnidirectional digital MEMS microphones forming six adaptive acoustic endfire beams
  • Pickup Range: 2.3 m radius
  • Microphone Type: digital MEMS microphones with 72 dB SNR and 130 dB AOP, dirt and water resistant to IP57 spec
  • Frequency Response: 90Hz – 16 kHz
  • Sensitivity: >-36 dBFS +/-1 dB @ 1 Pa
  • Audio processing: AEC (Acoustic Echo Cancellation), Machine Learning VAD (Voice Activity Detector)
  • Noise suppression: Artificial Intelligence Machine Learning to attenuate both stationary and non-stationary noises
  • Additional mic pods
    • Rally Bar: Supports up to 3 Mic Pods and 2 Mic Pod Hubs
    • Rally Bar Mini: Supports up to 2 Mic Pods and 2 Mic Pod Hubs
    • Rally/Rally Plus: Supports up to total of 6 Mic Pods and/or Mic Pod Hubs

ENVIRONMENTALS

• Operating Temperature: 0 to 40°C @ 10% - 90% RH (Non-condensing)
• Storage Temperature: -40 to 70°C @ 10% - 90% RH (Non-condensing)

Package Contents

• Sight camera
• Sight dongle
• Mic pod dongle
• Privacy shade
• Grommet mount
• Table mount
• Tripod mount
• User documentation

Warranty Information

• Standard: 2-year limited hardware warranty included
• Extended: Additional one- and three-year extended warranties available at the time of hardware purchase.
• Contact your reseller for availability.

Part Number

• Graphite : 960-001510
• White : 960-001503
