4TB (4000GB) Samsung 9100 PRO M.2 PCIe Gen5x4 2280

Спецификации на SSD твърд диск Samsung 9100 PRO M.2 PCIe Gen5x4 2280 4TB (4000GB) M.2 PCI-E 14800r / 13400w

SSD Samsung 9100 PRO M.2 4TB PCIe Gen5x4 2280, MZ-VAP4T0BW, 8806095811703

Overview

Top 3 features

PCIe® 5.0 Performance: Max 14,800/13,400 MB/s sequential speeds,two times faster than 990 PRO.

Advance your gameplay:Mega capacity with exceptional compatibility.

*8TB variant not available until Q3 ‘25.

Innovative Power & Thermal Control: Up to 49% enhanced power efficiency with advanced thermal control.

*compared to the 990 PRO

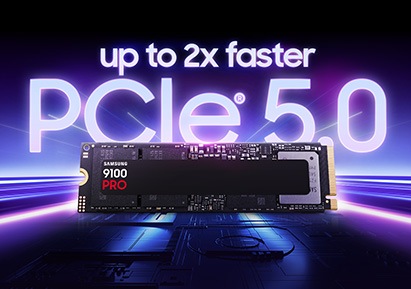

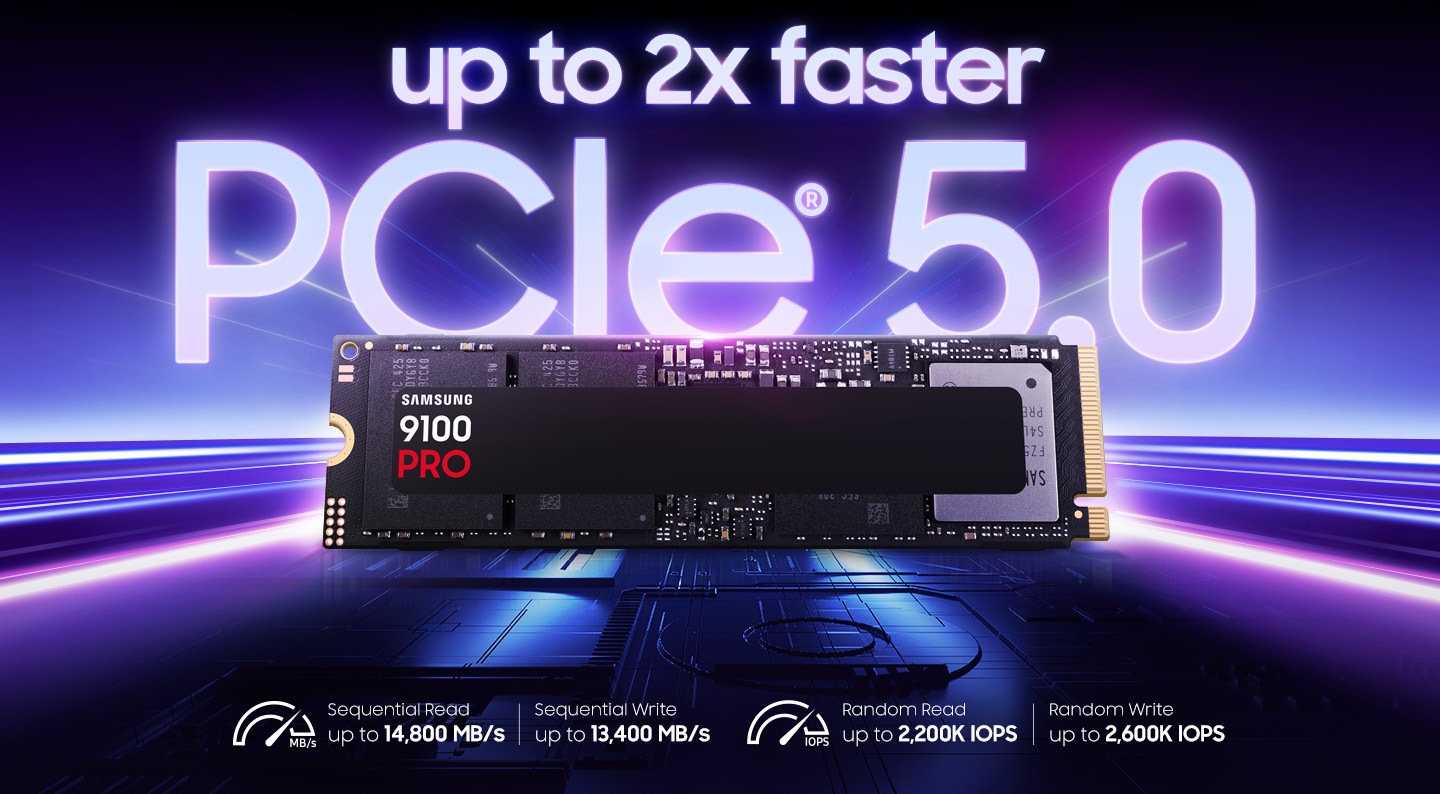

Breakthrough PCIe® 5.0 performance

Push PCIe® 5.0 performance to the max. 9100 PRO achieves lightning-fast sequential read/write speeds up to 14,800/13,400 MB/s, two times faster than 990 PRO. Leave Gen4 limits behind with random read/write speeds up to 2,200K/2,600K IOPS, only possible by Gen5.

*Sequential and random write performance was measured with Intelligent Turbo Write technology activated, which only operates within a specific data transfer size. Performance may vary depending on SSD’s firmware, system hardware & configuration and other factors. For detailed information, please contact your local service center.*To maximise the performance of the 9100 PRO, please check whether your system supports PCIe® 5.0 on Intel or AMD website.

Impressive processing power

Speed past productivity limits. Exhilarating random read/write speeds enable ultra-fast parallel processing for countless fragmented data, at up to 2,200K/2,600K IOPS. Experience superior output and instant loads for huge games, high-performance tasks, and even AI applications.

Rapid AI creation

Intelligence redefines performance. Defy your limits in work and play with an on-board AI PC and AI content generation, fuelled by 9100 PRO’s exhilarating random read/write speeds up to 2,200K/2,600K IOPS. Swift loads, smooth gameplay, seamless performance.

*Performance may vary depending on SSD's firmware, system hardware & configuration and other factors.

Exceptional performance at your fingertips

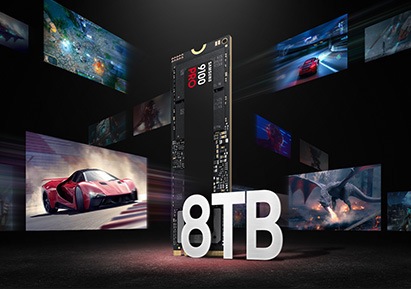

Elevate your competitive edge. Breeze through video editing, 3D art, and even long streaming sessions with the latest PCIe® 5.0 interfaces. Experience cutting-edge performance anytime, anywhere, on any device, and choose the storage you need with expansive capacity up to 8TB.

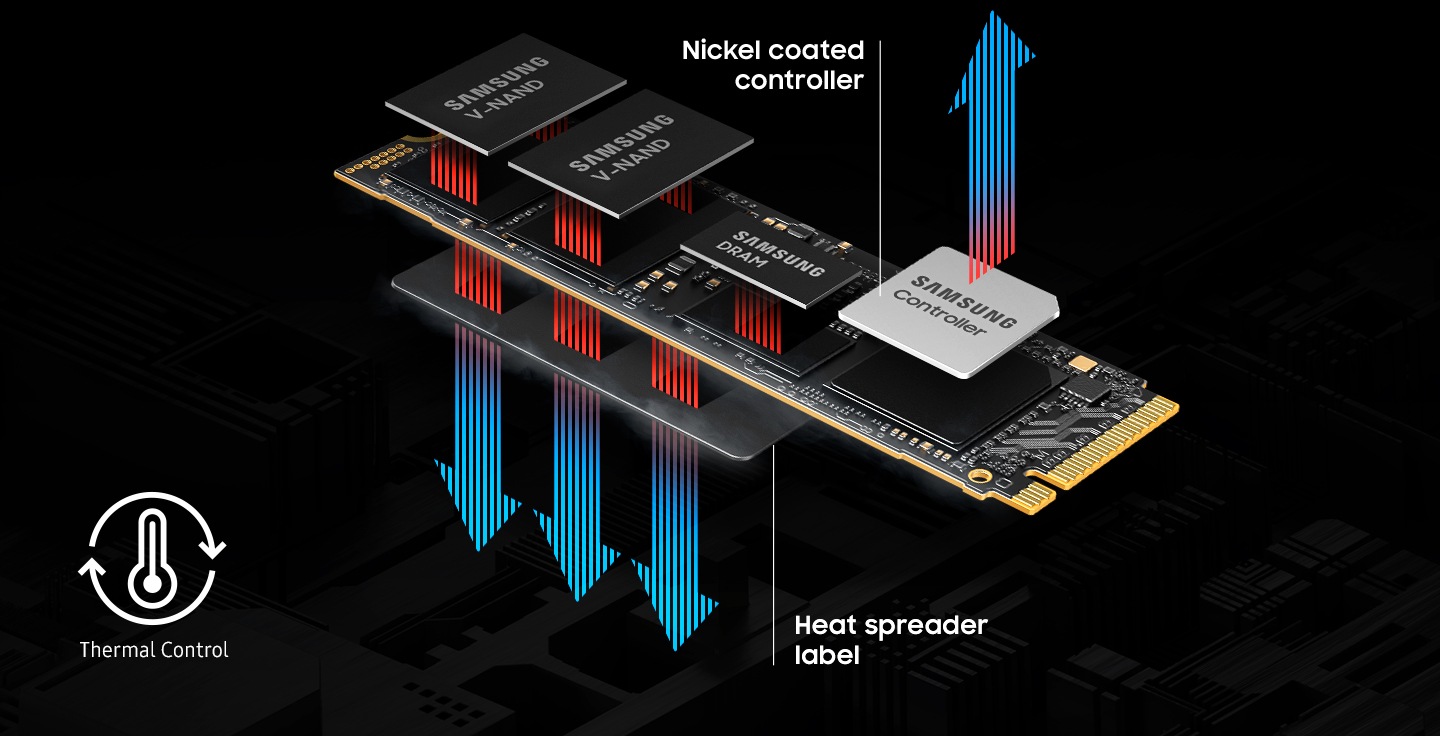

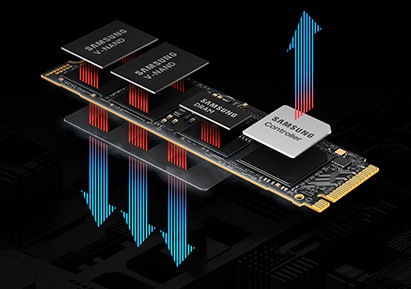

Extraordinary thermal efficiency

Peak performance, uninterrupted. The advanced 5nm controller power architecture enhances power efficiency up to 49% over 990 PRO. Exceptional thermal control ensures nothing disrupts your flow, so you can keep the most demanding programs running with the max possible power of PCIe® 5.0.

Samsung Magician software

Make your SSD work like magic. Samsung Magician software's optimisation tools ensure the best SSD performance. It's a safe and easy way to migrate all your data for a Samsung SSD upgrade. Protect valuable data, monitor drive health, and get the latest firmware updates.

*For detailed information, please visit Samsung Magician software website.https://semiconductor.samsung.com/consumer-storage/magician/

Bringing innovations to life

For decades, Samsung’s NAND flash memory has powered groundbreaking technologies that have changed every part of our daily lives. This NAND flash technology also powers our consumer SSDs, making room for the next big push of innovation.

Specifications

General Features

• Application: Client PCs, Game Consoles
• Capacity: 4,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
• Form Factor: M.2 (2280)
• Interface: PCIe® 5.0 x4, NVMe™ 2.0
• Dimension (WxHxD): Max 80.15 x Max 22.15 x Max 2.38 mm
• Weight: Max 9.0g Weight
• Storage Memory: Samsung V-NAND TLC
• Controller: Samsung in-house Controller
• Cache Memory: Samsung 4GB Low Power DDR4X SDRAM

Special Features

• TRIM Support: Supported
• S.M.A.R.T Support: Supported
• GC (Garbage Collection): Auto Garbage Collection Algorithm
• Encryption Support: AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
• WWN Support: Not supported
• Device Sleep Mode Support: Yes

Performance

• Sequential Read: Up to 14,800 MB/s * Performance may vary based on system hardware & configuration
• Sequential Write: Up to 13,400 MB/s * Performance may vary based on system hardware & configuration
• Random Read: Up to 2,200,000 IOPS * Performance may vary based on system hardware & configuration
• Random Write: Up to 2,600,000 IOPS * Performance may vary based on system hardware & configuration

Environment

• Average Power Consumption (system level): Average: Read 9.0 W / Write 8.2 W* Actual power consumption may vary depending on system hardware & configuration
• Power consumption (Idle): Typical 6.5 mW * Actual power consumption may vary depending on system hardware & configuration
• Power Consumption (Device Sleep): Typical 5.7 mW * Actual power consumption may vary depending on system hardware & configuration
• Allowable Voltage: 3.3 V ± 5 % Allowable voltage
• Reliability (MTBF): 1.5 Million Hours Reliability (MTBF)
• Operating Temperature: 0 - 70 ℃ Operating Temperature
• Shock: 1,500 G & 0.5 ms (Half sine)

Accessories

• Installation Kit: Not Available

Software

• Management SW: Magician Software for SSD management
