be quiet! Silent LOOP 3 240mm

Спецификации на be quiet! Silent LOOP 3 240mm socket: (1150, 1151, 1155, 1156, 1200), (1700, 1851) / (754, 939, AM2, AM3, AM4, AM5) 240 mm (охладители за процесори водно охлаждане)

Cooler be quiet! Silent LOOP 3 240mm, 4260052192535, BW024

SILENT LOOP 3
Superior technology and cooling

You do not settle for less than the best. Neither does Silent Loop 3.

This All-in-One water cooling unit series represents our passion for technological innovations, all packed up in one AiO, ultimately leading to the pinnacle of what we are capable of when it comes to water cooling.

Silent Loop 3 also lives up to our brand’s name “be quiet!”. It was our goal from scratch to provide you with a virtually inaudible experience. Each and every model in this series can be considered a love letter to German engineering.

Features

Virtually inaudible operation

• 6-pole motor with 3 phases and a 3-chamber design ensure the pump causes less vibration
• Adjustable pump speed to fit individual needs of silence and performance
• The effective dampening of the pump reduces noise even when the pump is at maximum speed
• Up to 3 Silent Wings 4 PWM high-speed fans for a virtually inaudible operation at regular speeds

Immensely High Cooling Performance

• A powerful pump ensures an immensely high cooling performance
• Radiators up to 240mm
• High-density fin stack on the cold plate enhances the cooling performance
• Radiator corners on the fan frame minimize air leakage

Easy and Convenient Handling

• An easy-to-access refill port simplifies the refilling process and makes handling very convenient
• Flexible sleeved tubes guarantee a simple mounting

Outstanding Service and Support

• Refill port with a coolant bottle included, ensuring a long lifespan
• 3-year manufacturer's warranty
• Product conception, design and quality control in Germany

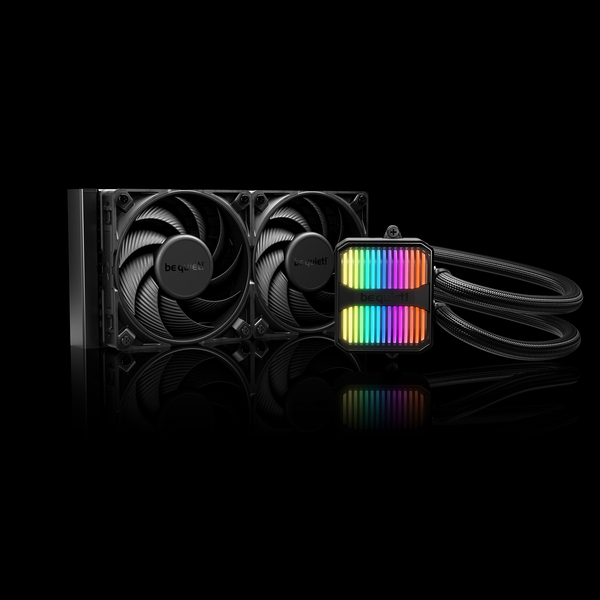

SILENT LOOP 3 240mm
Superior technology and cooling

Silent Loop 3 240mm is the virtually inaudible and incredibly high performing All-in-One water cooling unit with state-of-the-art technology.

• Highly engineered cooling block design
• Powerful 3-chamber pump design significantly reduces turbulences and noise
• Dampened and adjustable pump with 6-pole motor
• 2 Silent Wings 4 120mm PWM high-speed fans with radiator corners for virtually inaudible operation
• Incredibly high cooling performance
• Elegant premium design with discreet ARGB lighting
• Easy-to-access refill port and included coolant bottle for a long lifespan
• Flexible sleeved tubes and a convenient mounting ensure easy handling

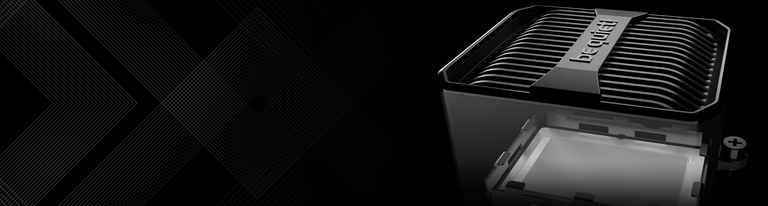

WHAT A COOL(ING) BLOCK
Obsession with details

The cooling block of Silent Loop 3 240mm is undisputed. The explanation may look complicated, but we owe it to our most loyal fans and all the enthusiasts out there:

The cooling block boasts a 1,800 mm² fin area, which is an increase of up to 2x compared to many other AiO's in this class.

This greatly improves heat transfer and makes sure to cover all hot spots on the CPU. The large fin area could only be achieved by a specially developed screwless design for attaching the heat plate.

The internal design of the flow path takes care that all areas are flowed to evenly to achieve high performance regardless of the CPU platform.

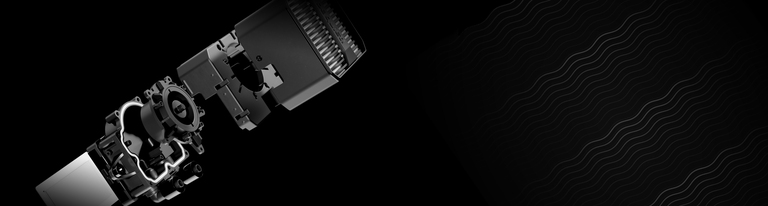

SUPERIOR PUMP DESIGN
Enjoy the silence

A powerful PWM pump with 3-chamber design ensures the very high-performance of Silent Loop 3 240mm and is whisper-quiet at the same time.

The second of its 3 chambers acts as a reservoir and offers enough space for the coolant to spread out and thus reduces turbulences before the liquid leaves the pump unit.

In combination with the 6-pole 3-phase motor this results in a smooth and consequently silent operation.

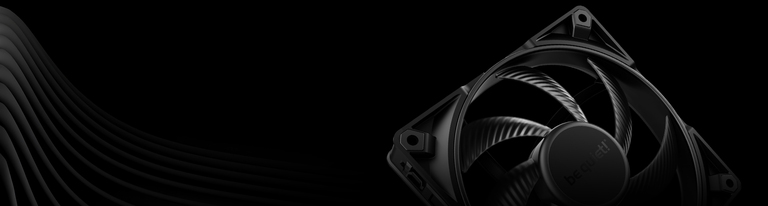

SILENT WINGS 4 FANS
Virtually inaudible operation - period

Silent Loop 3 240mm features 3 Silent Wings 4 140mm PWM high-speed fans.

These fans feature silence-optimized fan blades and a funnel shaped air outlet, making Silent Wings 4 140mm PWM high-speed a fan that makes no compromises between very quiet operation and highest performance.

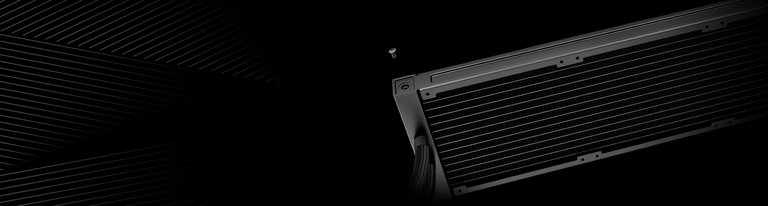

The corners of the frame are designed to minimize air leakage on radiators.

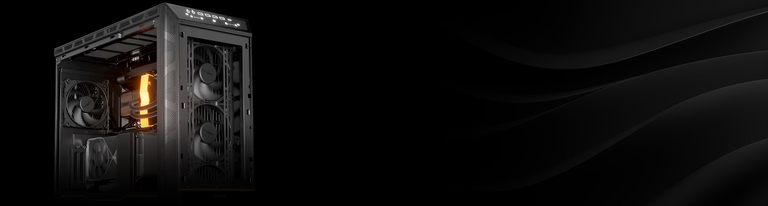

INCREDIBLY HIGH COOLING PERFORMANCE
Be ready for any setup

Silent Loop 3 240mm is a meticulously crafted masterpiece of German engineering.

All parts integrated are of highest quality and work as precise as a clockwork, ultimately leading to a cooling performance ready for virtually any situation.

EASY TO REFILL
Simplified refilling process for a long lifespan

An easy-to-access refill port makes for convenient handling, safe refilling and comfortable maintenance. The coolant bottle included extends the lifespan.

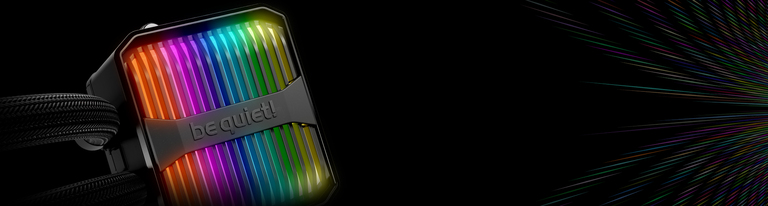

S-TIER DESIGN
The perfect mix between power and elegance

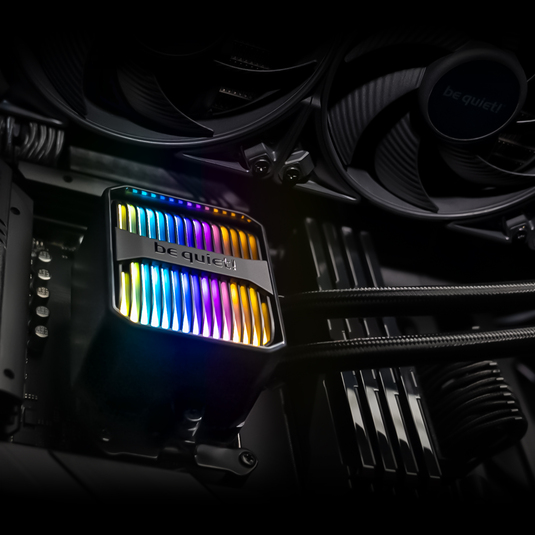

The cooling block’s design is iconic and unmistakable. We kept it all-black and elegant to represent the sheer cooling power Silent Loop 3 240mm offers, despite being barely audible.

Optionally, you can turn on ARGB LEDs. Silent Loop 3 240mm is a statement in your PC case: you strive for the maximum in any discipline.

Model	Silent Loop 3 240mm
Color option	Black
Dimensions radiator, incl. fan (H x W x D), (mm)	277 x 120 x 52
Dimensions cooling block (H x W x D), (mm)	93.5 x 80 x 56
Total weight (kg)	1.38
Socket compatibility Intel	1851 / 1700 / 1200 / 1150 / 1151 / 1155
Socket compatibility AMD	AM5 / AM4
Noise level at 50% / 75% /100% rpm	18.7 / 29.9 / 36.9
Number of fans	2
Lighting connector	3 Pin 5V Adressable
Tube length (mm)	400
Refill port	да

Pump specifications

Pump speed (rpm)	3500
Pump adjustable (rpm)	1700 - 3500
Pump connector	4-pin

Radiator specifications

Dimensions (L x W x H), (mm)	277 x 120 x 27
Radiator material / finish	aluminum / black spray painted
Base material / finish	copper / nickel plating

Fan specifications

Fan model	PWM
Fan dimensions (mm)	120 x 120 x 25
Speed at 100% PWM (rpm)	2500
m3/h	76,7 / 130.3
mm H2O	3.96
Bearing technology	FDB
Motor technology	6-pole fan motor
Rated Voltage (V)	12
Input current (A)	0.30
Safety current (A)	0.40
Input power (W)	3.6
Connector	4-pin PWM
Cable length (mm)	500
Lifespan (h / 25°C)	300,000

Accessories

Thermal grease (Type)	Included
Mounting set	Intel, AMD
Adapter cables	Y-cable
Bottle of coolant (ml)	да / 100
ARGB controller with SATA cable	-
ARGB-PWM-Hub	-
User manual languages	CN, DE, EN, ES, FR, JP, PL, RU, TW, UA

Safety certifications

Approvals

FCC, UKCA

Environmental directives

RoHS	да
WEEE	да
Triman	да

Service

Warranty (Years)	3
International hotline / free of charge	да/ DE, FR, US

Logistics data and RRP

Article number	BW024
EAN code	4260052192535
Dimensions, package (L x W x H), (mm)	321 x 240 x 140
Gross weight, package (kg)	2.4
Pieces per packaging unit	8
Dimensions, shipping box (L x W x H), (mm)	658 x 286 x 508
Gross weight, shipping box (kg)	20.5
RRP (€)	139.90
