TP-Link Комутатор TL-SG1006PP 6-порта Gigabit 3x PoE+

Спецификации на Суичове 6 port - TP-Link Комутатор TL-SG1006PP 6-порта Gigabit 3x PoE+

TP-Link Комутатор TP-LINK TL-SG1006PP 6-порта Gigabit 3 x PoE+ и 1 x PoE++, метален

TL-SG1006PP: 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++

• 6× 10/100/1000 Mbps RJ45 ports
• With one PoE++ port and three PoE+ ports, transfers data and power on one single cable
• Works with IEEE 802.3af/at/bt compliant PDs
• 802.1p/DSCP QoS enable smooth latency-sensitive traffic
• Supports PoE Power up to 30 W for each PoE+ port and 60W for PoE++ port
• Supports PoE Power up to 64 W for all PoE ports*
• Up to 250m data and power transmitting range under Extend Mode**
• PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
• Plug and Play, no configuration and installation required

Quick info

• 64 W PoE Budget*
• 1-Port PoE++ (Up to 60 W)
• Transmission Distance up to 250 m**
• PoE Auto Recovery
• Plug and Play
• Durable Metal Casing
• Silent Operation

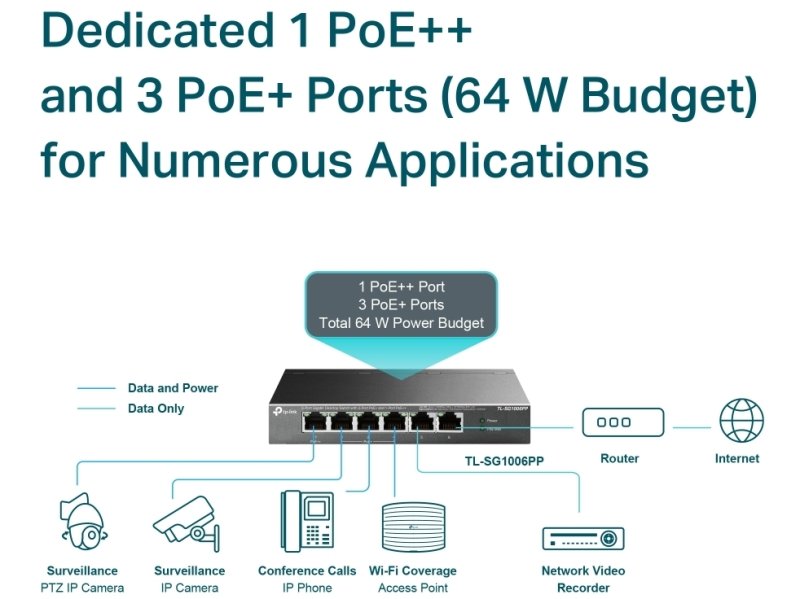

Dedicated 1 PoE++ and 3 PoE+ Ports (64 W Budget) for Numerous Applications

Port 1 complies with the 802.3af/at/bt PoE++ to supply ample power up to 60 W, and ports 2-4 compliance with 802.3af/at PoE+ support up to 30 W on each PoE+ port.

The total 64 W PoE power budget* for all PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

HARDWARE FEATURES

• Interface:
  • 6× 10/100/1000Mbps RJ45 Ports
  • AUTO Negotiation
  • AUTO MDI/MDIX
• Network Media
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
• Fan Quantity: Fanless
• External Power Supply: External Power Adapter (Output: 53.5 VDC / 1.31 A)
• Packet Forwarding Rate: 8.928 Mpps
• PoE Ports (RJ45)
  • Port 1 compliances with 802.3af/at/bt; Ports 2-4 compliance with 802.3af/at
  • Power Supply: 64 W
• Mac Address Table: 4K
• Switching Capacity: 12 Gbps
• Dimensions ( W x D x H ): 6.2x4.0x1.0 in (158x101x25 mm)
• Max. Power Consumption
  • 4.75 W (220/50 Hz. no PD connected)
  • 71.46 W (220/50 Hz. with 64 W PD connected)
• Max. Heat Dissipation
  • 16.20 BTU/h (220/50 Hz. no PD connected)
  • 243.68 BTU/h (220/50 Hz. with 64 W PD connected)

SOFTWARE FEATURES

• Advanced Features
  • Compatible With IEEE 802.3af/at/bt Compliant PDs
  • Mac Address Auto-Learning And Auto-Aging
  • IEEE 802.3x Flow Control
  • 802.1p/DSCP QoS
  • IGMP Snooping
  • Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission)
  • PoE Auto Recovery (Ports 1-4)
• Transmission Method: Store-And-Forward

OTHERS

• Certification: FCC, CE, RoHS
• Package Content
  • TL-SG1006PP
  • Power Adapter
  • Installation Guide
• Environment
  • Operating Temperature: 0–40 ℃ (32–104 ℉);
  • Storage Temperature: -40–70 ℃ (-40–158 ℉)
  • Operating Humidity: 10–90% RH non-condensing
  • Storage Humidity: 5–90% RH non-condensing
