Mimosa Точка за достъп Mimosa B5x, 5GHz, 30 dBm, 1.5xGbE, PTP, GPS Sync, без PoE адапт., 100-00109-HW

B5x: Unmatched Performance and Versatility

The Mimosa B5x is one of the industry’s fastest unlicensed, point-to-point (PTP), backhaul solutions.

It’s ideal for short to medium range relay and tower links, custom-engineered co-location, and licensed 4.9 GHz spectrum.

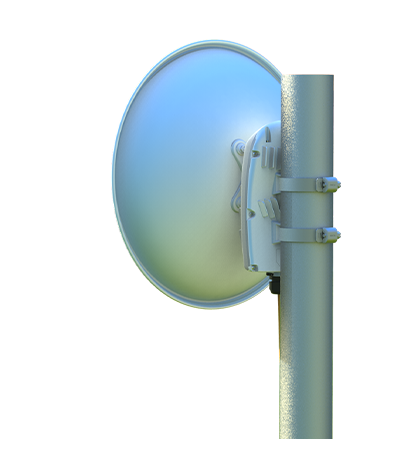

It’s modular, with the ability to connect X-series compatible twist-on antennas (12 dBi horn, 16 dBi horn, 20 dBi dish, 25 dBi dish, or 30 dBi dish).

Value
Exceptional Speed and Flexibility

The Mimosa B5x stands out as one of the industry's fastest unlicensed backhaul solutions, capable of delivering up to 1.5 Gbps (IP). With 160 MHz of aggregate channel capacity and GPS Sync mode, it offers unparalleled flexibility and performance for short to medium-range relay and tower links, as well as licensed 4.9 GHz spectrum applications. This makes it an ideal choice for high-capacity, reliable connections in various network environments at a fraction of the cost of fiber.

Technical Specifications

Performance

• Max Throughput: Up to 1.5 Gbps IP aggregate UL/DL (1.7 Gbps PHY)
• Low Latency: <1 ms in auto mode
• Wireless Protocols: Fixed TDMA and TDMA-FD (Frequency Diversity) with 75:25, 67:33, or 50:50 traffic ratios with 2, 4, or 8 ms timeslots; Auto-TDMA

Radio

• MIMO & Modulation: 4x4:4 MIMO OFDM up to 256QAM
• Bandwidth:
  • Single or dual 20/40/80 MHz channels;
  • Regulations vary by region
• Frequency Range:
  • 4.90–6.40 GHz;
  • Restricted by country of operation
• Max Output Power:
  • 30 dBm (1x mode, i.e. single freq)
  • 27 dBm (2x mode, i.e. dual freq)
• Sensitivity (MCS 0):
  • -87 dBm @ 80 MHz
  • -90 dBm @ 40 MHz
  • -93 dBm @ 20 MHz
• Integrated Antenna Gain: 8 dBi (with no optional antenna accessory attached)
• Additional Flexible Antenna Options (not included):
  • N5-X compatible twist on antennas—
  • 12 dBi horn; 16 dBi horn; 20 dBi dish; 25 dBi dish

Power

• Max Power Consumption: 20 W
• System Power Method: 48 VDC passive isolated PoE injector
• System Lightning & ESD Protection: 6 kV
• Recommended Power Supply (not included): 50 VDC passive Gigabit PoE injector

Physical

• Dimensions:
  • Height: 241 mm (9.5”)
  • Width: 139 mm (5.5”)
  • Depth: 76 mm (3.0”)
• Weight: 1.4 kg (3.1 lbs) without mount
• Enclosure Characteristics: Die-cast aluminum
• Wind Survivability: 200 km/h (125 mph)
• Mounting:
  • 2 standard pole straps required (not included);
  • Compatible with FlexiMount XL

Environmental

• Outdoor Ingress Protection Rating: IP67
• Operating Temperature: -40°C to +55°C (-40°F to 131°F)
• Operating Humidity: 5 to 100% condensing
• Operating Altitude: 4,420 m (14,500’) maximum
• Shock and Vibration: ETS 300-019-2-4 class 4M5

Features

• Gigabit Ethernet: 10/100/1000-BASE-T
• Dual Link Operation:
  • 2 independent dual-stream radios operating on non-contiguous frequencies; Automatic load balancing of traffic across 4 total MIMO streams with individual stream encoding up to 256 QAM
• Management Services:
  • Mimosa management; SNMPv2 & Syslog legacy monitoring; HTTPS; HTML 5 based Web UI
• Smart Spectrum Management:
  • Active scan monitors/logs ongoing RF interference across channels (no service impact); Dynamic auto-optimization of channel and bandwidth use
• Security: 128-bit AES PSK with hardware acceleration
• QoS: 4 classes of QoS, with user configurable priority queuing, weighted fair queuing, MIR, CIR, and rate limiting
• GPS Location: GNSS-1 (GPS + GLONASS)
• Collocation Synchronization: 1PPS GPS TX/RX synchronization for collocated co-channel radios; Adjustable up/downstream bandwidth ratio

Regulatory and Compliance

• Approvals:
  • FCC Part 15.407, IC RSS210, CE,
  • ETSI 301 893/302 502
• RoHS Compliance: Yes
• Safety: EN 62638-1, CAN/CSA C22.2 No. 62368-1
