Mimosa C5x IP67 5GHz 27 dBm

Спецификации на access point AP - Mimosa C5x IP67 5GHz 27 dBm

Mimosa Точка за достъп Mimosa C5x IP67, 5GHz, 27 dBm, 1xGbE, PTP, PTMP, без PoE адаптер, 100-00101-HW

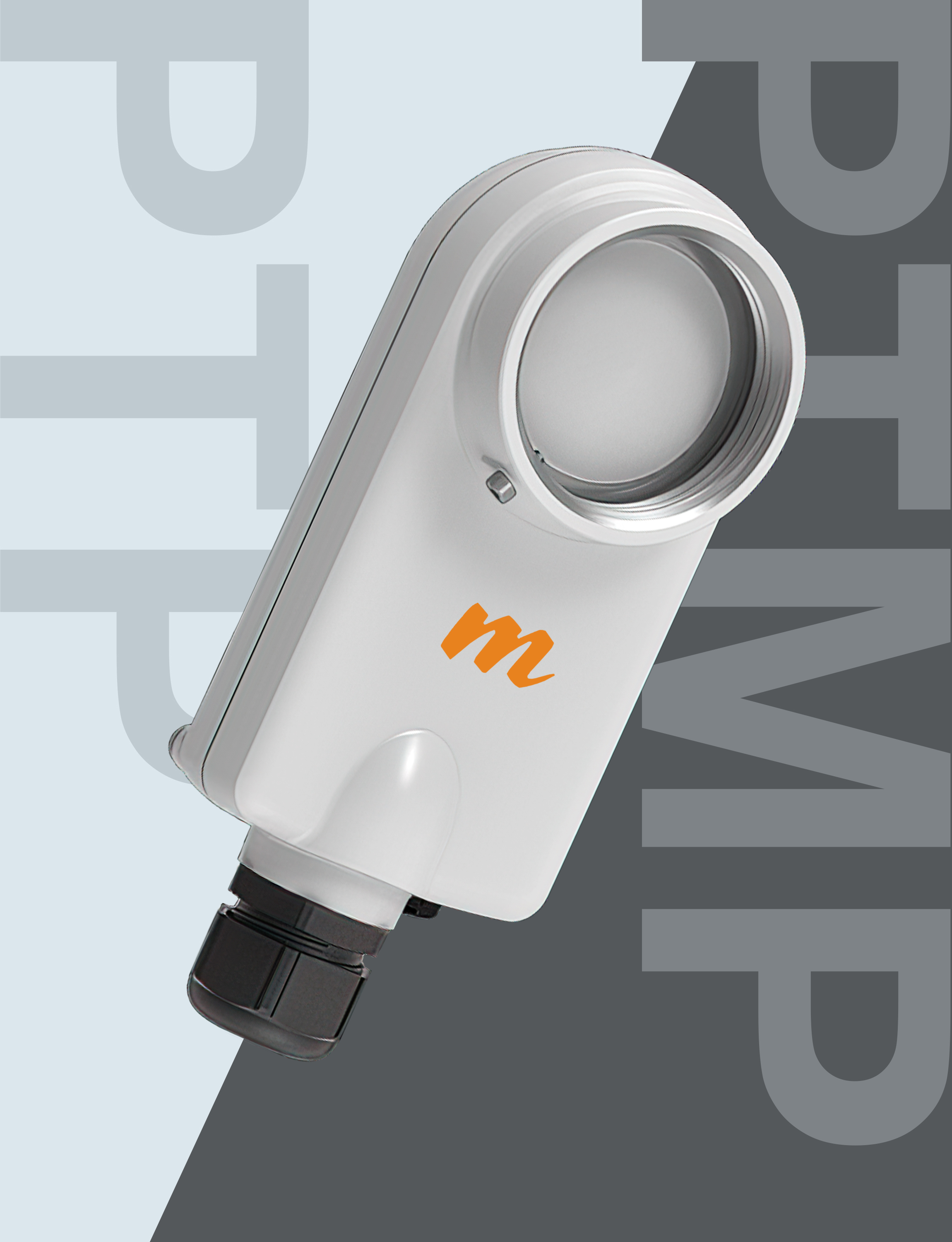

C5x
Small But Mighty Client and Backhaul Radio

The Mimosa C5x is the industry’s most versatile, integrated radio with five modular twist-on antenna options. The ultra-rugged solution provides extended frequency operation from 4.9–6.4 GHz, with best-in-class noise immunity.

Delivering the ultimate in flexibility and cost efficiency, the C5x is the go-to PTP or PTMP solution for 5 GHz deployments.

Value
Ultimate Flexibility and Performance

This ultra-rugged solution offers extended frequency operation from 4.9 to 6.4 GHz, providing best-in-class noise immunity. With speeds up to 500 Mbps (PTMP)/700 Mbps (PTP), the C5x delivers exceptional flexibility and cost efficiency for both Point-to-Multipoint and Point-to-Point Solutions.

Technical Specifications

Performance

• Max Throughput: PTP/PTMP: 700 Mbps IP (866 PHY)
• Wireless Protocols: Mimosa SRS (GPS Sync); WiFi Interop
• Modes: PTP Backhaul; PTMP Client

Radio

• MIMO and Modulation: 2x2:2 MIMO OFDM, up to 256 QAM
• Bandwidth:
  • 20/40/80 MHz channels, tunable to 5 MHz
  • increments for Mimosa SRS and WiFi Interop mode
• Frequency Range: PTP/PTMP: 4900–6400 MHz (restricted by country of operation)
• Max Output Power: 27 dBm
• Sensitivity (MCS0):
  • -87 dBm @ 80 MHz
  • -90 dBm @ 40 MHz
  • -93 dBm @ 20 MHz

Power

• Max Power Consumption: 9.2 W average; 12.9 W max
• System Power Method: Passive POE (24-56 VDC)
• PoE Power Supply: Passive POE compliant, 24-56 V Power over Ethernet supply (not included)

Physical

• Dimensions:
  • Height: 175 mm (6.89”)
  • Width: 70 mm (2.75”)
  • Depth: 61 mm (2.40”)
• Weight: 0.37 kg (0.82 lbs)
• RF Connector Type: Mimosa N5-X twist-on
• Enclosure Characteristics: Outdoor, die-cast aluminum, UV stabilized paint
• Mounting: Dual attached pole mount straps
• Grounding: Ground lug
• Wind Survivability: 200 km/h (125 mph)

Environmental

• Outdoor Ingress Protection Rating: IP67
• Operating Temperature: -40°C to +55°C (-40°F to 131°F)
• Operating Humidity: 5 to 100% condensing
• Operating Altitude: 4,420 m (14,500’) max
• Shock & Vibration: ETS 300-019-2-4 class 4M5

Regulatory and Compliance

• Approvals: FCC Part 15.405 and Part 90Y CE/ETSI
• EMI/Safety:
  • FCC Part 15 Class B
  • EN 55022 Class B
  • IEC61000
  • UL/IEC 60950-2
  • IEC/EN 60905-1
• WEEE/ROHS Compliance: Yes C5x with No Antenna

Features

• Gigabit Ethernet: 10/100/1000-Base-T
• Management Services: Mimosa cloud monitoring and management; SNMPv2 & Syslog monitoring; HTTPS; HTML5-based web UI
• Smart Spectrum Management:
  • Active scan monitors/logs ongoing RF interference across channels with no service impact;
  • Dynamic auto-optimization of channel and bandwidth use
• Security: WPA2 PSK and Enterprise 802.1x, Radius provisioning, COA, DM (from A5); 128-bit AES with hardware acceleration
• VLANs: Per subscriber, VLAN, Q-in-Q, triple tagging, management VLAN
• QoS: Supports 4 pre-configured QoS levels

Гаранционен срок: 24 месеца
