LG CreateBoard 98TR3DK-BM

Спецификации на LG CreateBoard 98TR3DK-BM 98’’ 3840x2160 8 ms

LG CreateBoard 98TR3DK-BM 98" Display UHD Touch EDLA, 8806091860132

Key Features

• Internal Memory: 64GB (Storage) / 8GB (RAM)
• Brightness (w/o Glass): 440 nit (Max.), 390 nit (Typ.)
• Resolution: 3,840 × 2,160 (UHD)
• Multi-Touch Point: 40 Points (Max.)

A New Level of Classroom with LG CreateBoard

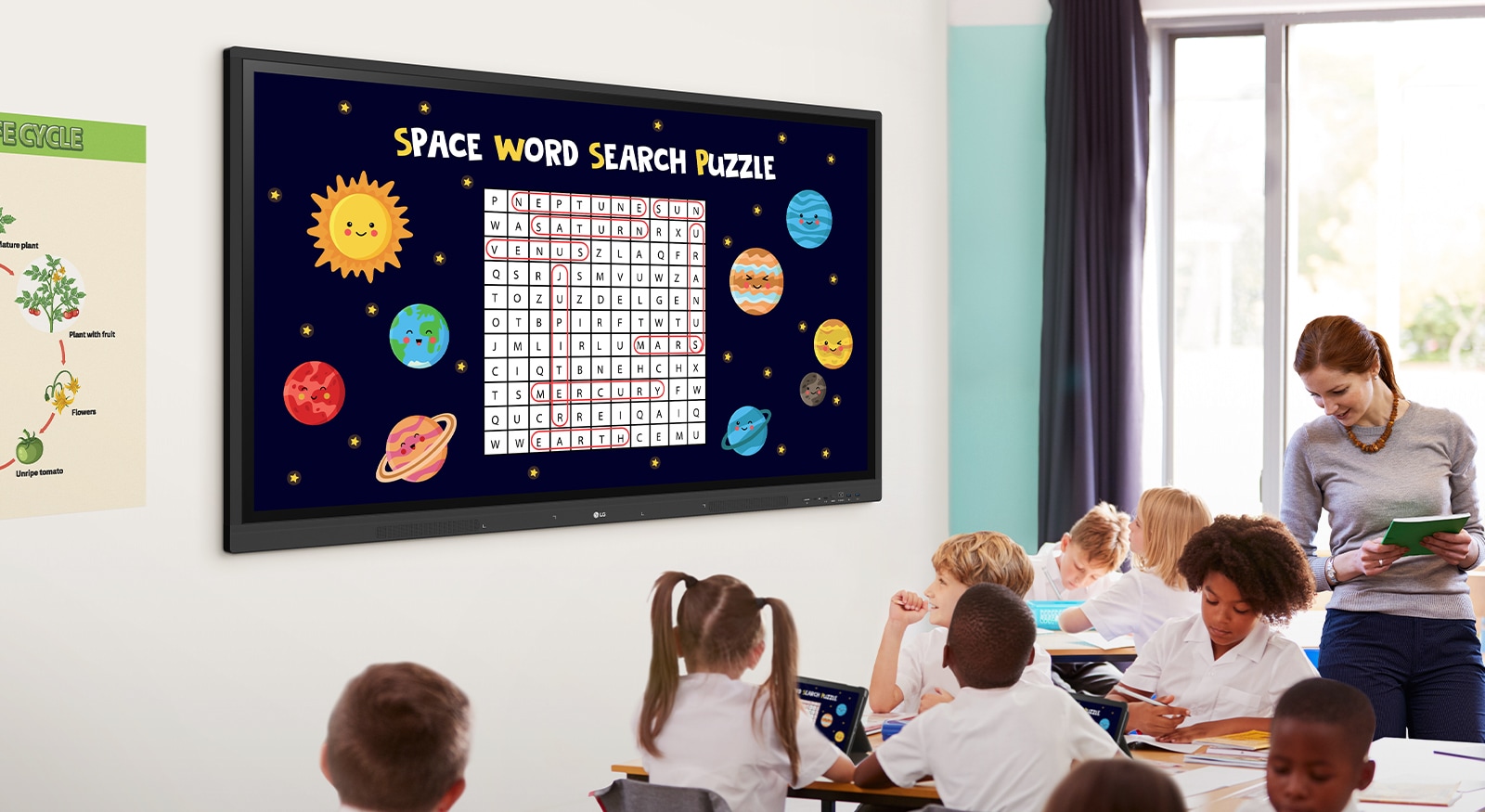

Class is being conducted in the classroom, and the class material screen which is displayed on the classroom wall's LG CreateBoard is being shared on the students' tablets.

* All images in this page are for illustrative purposes only.

Various Teaching Templates

LG CreateBoard offers a variety of educational templates and teaching tools such as a ruler, table, and sticky notes, allowing for active engagement by students and enabling intuitive classes. Editing images and videos becomes easy with LG CreateBoard, and created resources can be easily shared with others through QR codes.

Students are solving problems using various ruler models on the LG CreateBoard menu.

Multi-touch

LG CreateBoard can simultaneously detect up to 40 points for multi-touch functionality. This creates a lifelike board touch experience, helping students easily become accustomed and truly engage in classes. This leads to the maximum concentration and organic engagement of students.

In the classroom, several students are simultaneously writing on the LG CreateBoard screen.

* A max of 32 points are recognized in the Android environment, and a max of 40 points are detected in the Windows environment.

* Up to 10 points can be recognized in the writing app.

Easy to Save / Import / Export

LG CreateBoard includes simple import and export functionality. Resources can be saved and imported directly to and from Google Drive or OneDrive, and files can be imported from a USB drive (Users can browse resources saved on USB storage).

Materials used to conduct class can be shared through the LG CreateBoard's import and export function after class.

LG CreateBoard Lab

LG’s proprietary whiteboarding software

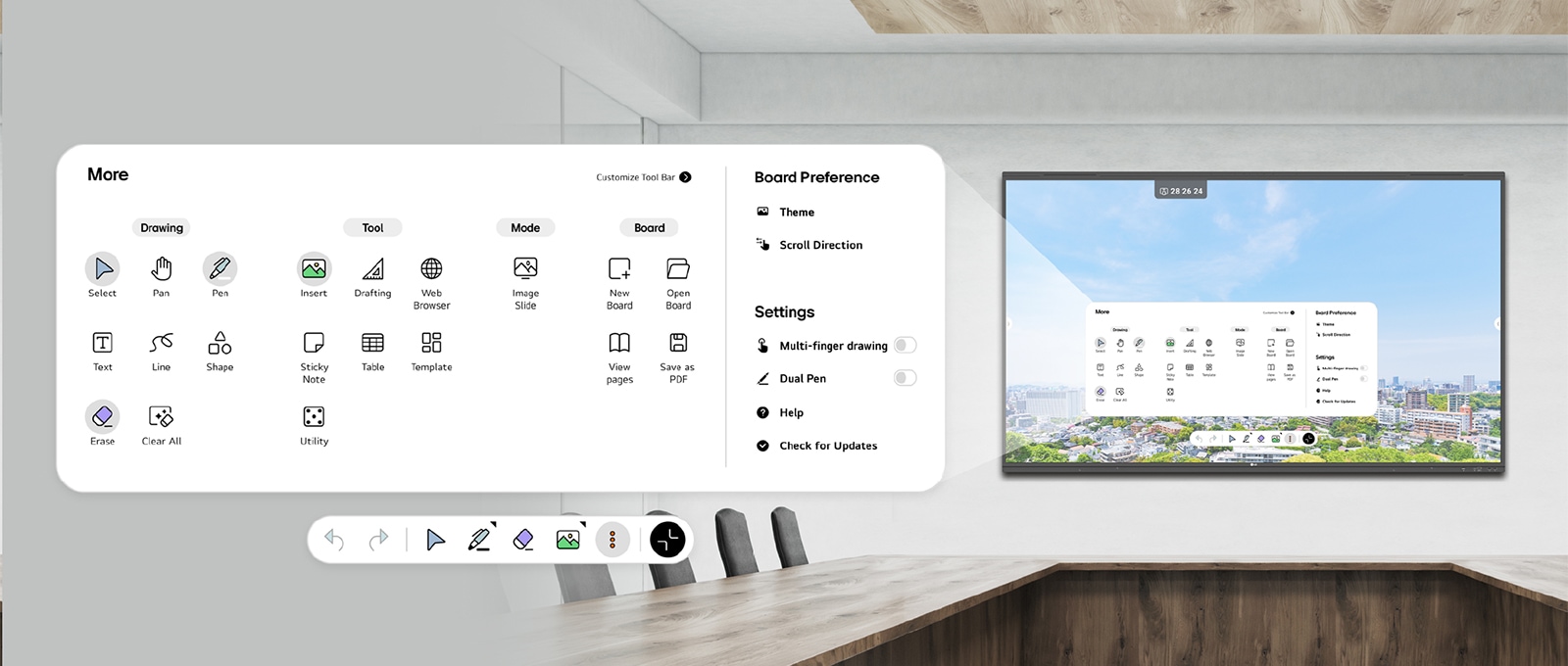

An interactive whiteboard is mounted on the wall of the conference room, with the intuitive menu bar displayed on the screen.

Tools for Fluid Collaboration

A variety of tools such as a calculator, clock, and sticky note are available to facilitate smooth discussions and ensure seamless idea sharing and communication. Also, users can personalize the menu bar with their most frequently used tools, thereby improving their work efficiency

Web Browser

When you need a reference during a discussion, you can access various information in real time with the simple click of a web browser. The necessary information found on the internet can be easily dragged and dropped into the material you’re creating, enhancing the productivity of your meetings.

Attention Effect

By simply double-tapping the LG CreateBoard screen with 4-5 fingers, an attention sign will pop up with a sound. This feature makes it easy to capture the participants’ attention during moments when you need them to focus.

Wireless ScreenShare

LG CreateBoard Share enables users to show up to 9 shared screens or a file on a screen in real-time when the LG CreateBoard Share app is installed on the device. Also, files from the host can be easily sent to any devices connected to the LG CreateBoard Share app, and several quick controls by the host are available.

Spec

PANEL

• Screen Size: 98"
• Panel Technology: IPS
• Back Light Type: Direct
• Aspect Ratio: 16:9
• Native Resolution: 3840x2160 (UHD)
• Refresh Rate: 60Hz
• Brightness: 440nit(wo Glass, max), 390nit (wo Glass, typ) 400nit(w Glass, typ), 350nit (w Glass, typ)
• Contrast Ratio: 1200:1
• Dynamic CR: 3000:1
• Color gamut: NTSC 72%
• Viewing Angle(H x V): 178°(H/V)
• Color Depth: 1.07B(10bit)
• Response Time: 8ms
• Surface Treatment(Haze): 25%
• Life time: 50,000hrs (L30)
• Operation Hours (Hours/Day): 16/7
• Portrait / Landscape: No / Yes

CONNECTIVITY(JACK INTERFACE)

• Input: HDMI (3, HDCP2.2), RGB (1, VGA), Audio In, RS232C IN, RJ45(LAN), USB3.0 Type A (4), USB2.0 Type A(1), USB Type-C(1, USB-PD, DP-Alt,)
• Output: DP Out (HDMI Out), Audio Out (1, Optical 1(SPDIF)), Touch USB (2), RJ45(LAN)

MECHANICAL SPECIFICATION

• Bezel Color: Black
• Bezel Width: T/R/L/B : 30/27/27/45mm
• Weight(Head): 103.6Kg
• Packed Weight: 133.2Kg
• Monitor Dimension(W x H x D): 2244 × 1323 × 91mm
• Carton Dimensions(W x H x D) (Box outer size): 2406 × 1474 × 280mm
• Handle: Yes
• VESA™ Standard Mount Interface: 800×600mm

KEY FEATURE

• HW: Internal Memory (64GB), Built-in Wi-Fi (Slot type), Auto Brightness sensor, Power Indicator
• SW: Android 13, Background Image (Booting Logo Image), Multi-screen (PIP (1 external source), PBP(1 external source)), Screen Share (LG CreateBoard Share), Power (Smart Energy Saving (Energy Saving))

ENVIRONMENT CONDITIONS

• Operation Temperature: 0 ~ 40 °C
• Operation Humidity: 10 ~ 90 % RH

POWER

• Power Supply: 100-240V~ 50/60Hz 5.5A
• Power Type: Built-In Power

POWER CONSUMPTION

• Typ.: 395W
• Max.: 610W
• BTU (British Thermal Unit): 1348 BTU/Hr(Typ.), 2081 BTU/Hr(Max)
• DPM: ≤0.5W
• Power off: ≤0.5W

SOUND
Speaker: Yes (15W x 2)

CERTIFICATION

• Safety: CB / NRTL
• EMC: FCC Class "A" / CE / KC
• ErP / Energy Star: Yes / Yes

OPS COMPATIBILITY

• OPS Type Compatible: Yes (Slot)
• OPS Power Built In: Yes

SOFTWARE COMPATIBILITY

• LG ConnectedCare: Yes
• LG ConnectedCare DMS: Yes (DMS)

LANGUAGE

• OSD: English, Denmark, Finnish, German, Korean, Norwegian, Polski, Portugues(Europe), Portugues(Brazil), Romanian, Spanish, Swedish, Hungarian, Thai

ACCESSORY

• Basic: Power Cord 3 M*1, USB Cable(Type A-Type B) 5 M*1, USB Type-C Cable(C to C) 1.8 M*1, HDMI Cable 3 M*1, Writing Pen*2pcs, User Manual, QSG, Carton Box, Remote Controller(include battery 2ea), Wifi module: Optional
• Wall Mount(WM-L000S), Floor Stand(ST-000F)

SPECIAL FEATURE

• Touch - Available object size for touch: Ø2 mm ↑ .
• Touch - Reponse Time: ≤5ms
• Touch - Accuracy: ±1.5mm
• Touch - Interface: USB2.0
• Touch - Protection Glass Thickness: 4T (Anti-Glare)
• Touch - Protection Glass Transmission: 88%
• Touch - Operating System Support: Windows 7/8/10/Linux/Mac/Android (Linux/Mac Support one point touch)
• Touch - Multi touch point: Max 40 points (Windows), Max 32 points (Android)

ANDROID SYSTEM

• SoC: Quad core A55
• GPU: Mali G52MP2
• Internal Memory - Storage: 64GB
• Internal Memory - RAM: 8GB
• Wi-Fi: 802.11a/b/g/n/ac/ax (WiFi 6)
• LAN: Gigabit LAN
• Bluetooth: Bluetooth 5.0
