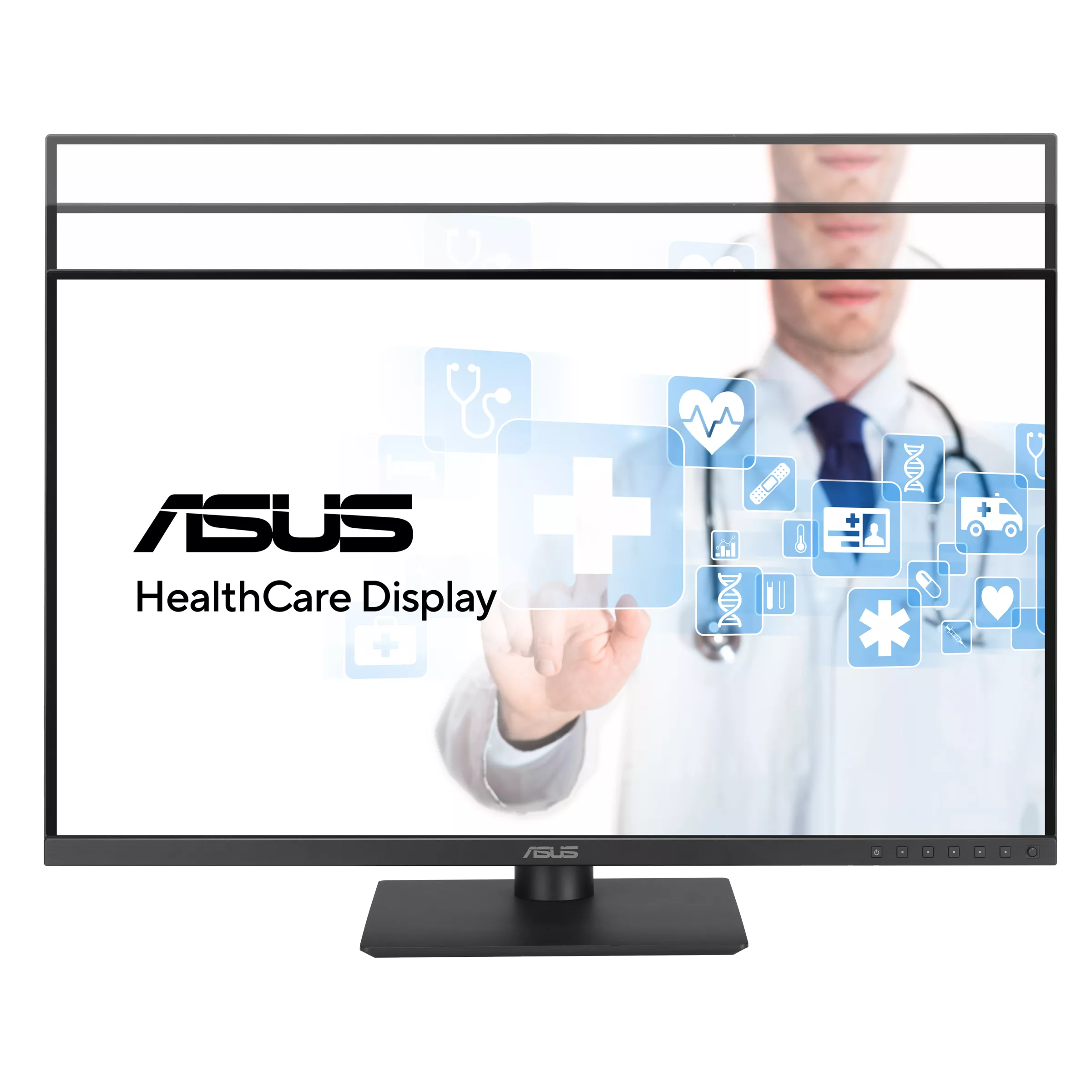

Asus HealthCare HA2441A

Спецификации на Asus HealthCare HA2441A 23.8’’ 2560x1440 5ms

ASUS HA2441A - LED-Monitor - QHD - 3.6MP - 61 cm (24") - HDR, 4711387308189, 90LM0900-B01M70

ASUS HA2441A HealthCare Monitor – 24-inch (23.8-inch viewable), 3.6MP (2560 x 1440), AGLR, DICOM Part 14 GSDF, DICOM Preset, Auto Calibration, JND < 10%, Antibacterial Treatment, USB-C, HDMI, DisplayPort Daisy-chain, Ergonomic Stand

• 23.8-inch 3.6MP (2560 x 1440) frameless design with IPS 178° wide viewing angle panel
• Anti-Glare, Low-Reflection (AGLR) with Eye Care+ to protect eyes from long time use
• Compliant with DICOM Part 14 GSDF standard
• DICOM Preset and auto compensation of DICOM curve for ambient light changing
• ASUS exclusive Auto calibration to ensures DICOM accuracy
• Factory calibrated to ensures JND < 10%
• Multiple I/O for flexibility: DisplayPort with Daisy-chain, HDMI, USB-C and USB hub
• Ergonomic design with tilt, swivel, pivot and height adjustments for a comfortable viewing experience
• Proprietary long-lasting antibacterial treatment inhibits the growth of bacteria and fungi on the monitor head
• IEC 62368-1, IEC 60601-1-2, AAPM TG270, IEC62563-1 and ISO13485 Compliance

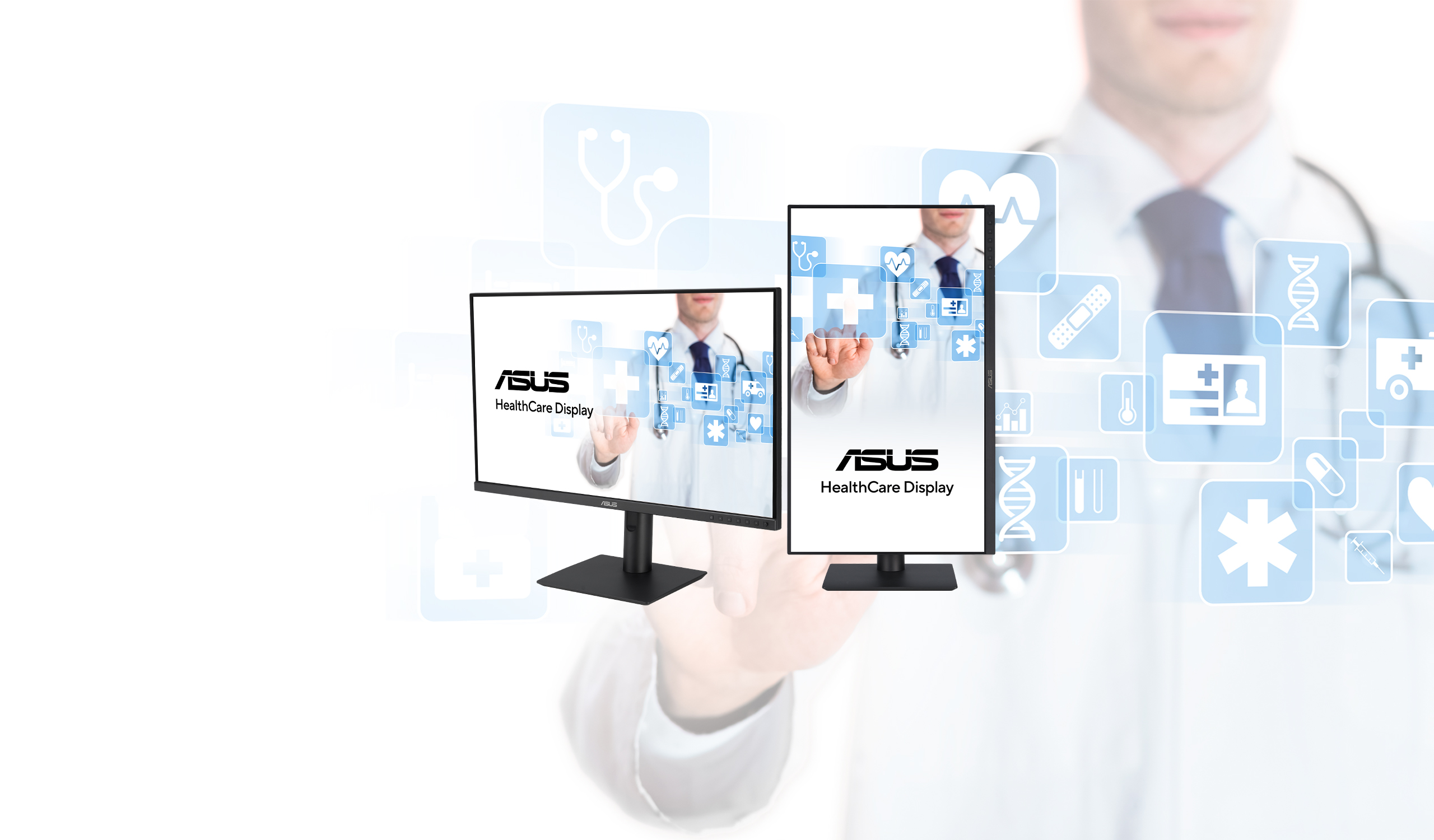

HealthCare Monitor

ASUS HealthCare Displays provides comprehensive line-up targeting for every HealthCare institutions needs. ASUS HealthCare Displays are factory calibrated with DICOM® Part 14 GSDF (Grayscale Standard Display Function) compliance to ensure visual accuracy and consistency in finest details.

ASUS HA2441A features 23.8-inch 3.6MP Anti-Glare, Low-Reflection (AGLR) IPS panel, ASUS exclusive Hardware Calibration Technology supports auto calibration to keep DICOM long term accuracy.

ASUS HealthCare Displays delivers high-performance, precise and stable capabilities to fit any scenario.

• 3.6MP IPS Frameless Panel: 23.8-inch, 3.6MP (2560 x 1440)
• AGLR: Anti-Glare, Low-Reflection panel
• DICOM Part 14 GSDF: AAPM TG270, IEC62563-1
• DICOM Preset: Fit any screnario
• <10% Just-Noticeable Difference (JND)
• Antibacterial Treatment: On monitor head and hotkeys
• Auto Calibration: For long-term DICOM accuracy
• Comprehensive Connectivity: USB-C®, HDMI®, DisplayPort™ (Daisy-chain) and USB hub
• Ergonomic Stand: Tilt, swivel, pivot, and height adjustment
• Compliance Standard: IEC60601-1-2 / ISO13485

Advanced Panel Solution

• 178° Wide View Angle
• 3.6MP High Resolution
• AGLR - Protect Your Eyes
• Multi-display Setups

Lifelike Views Vith 178° Wide View Angle

ASUS HA2441A IPS panel provides 178° viewing angles, both horizontally and vertically, so you can reproduce excellent contrast, ensuring the accurate and clear medical images from almost any direction.

3.6MP High Resolution

ASUS HealthCare Displays offers high resolution displaying up to 3.6 megapixels images, displays 77% more pixels than conventional Full HD monitors, offering superior picture quality and sharp imagery for a superbly detailed viewing experience.

On top of that, with so much extra screen space, you can multitasking more easily and comfortably with less scrolling and zooming.

Anti-Glare, Low-Reflection - Protect Your Eyes

ASUS HealthCare Displays is always take care of your eyes. Made with AGLR (Anti-glare, Low-reflection) coating, and undergone stringent performance tests and has been certified by TÜV Rheinland laboratories, a global provider of technical, safety, and certification services, to be flicker-free and to emit low blue light levels.

Frameless Design

Makes it perfect for almost-seamless multi-display setups that give you an even greater degree of immersion.

Factory-Precise for DICOM Excellence

To provides reliable images and stable grayscale, ASUS HealthCare Displays compliant with the Digital Imaging and Communications in Medicine (DICOM) Part 14 GSDF standard, and also pass AAPM TG270 and IEC62563-1 compliance test.

Each ASUS HealthCare display is factory calibrated to guarantee DICOM color accuracy. The display then undergoes stringent testingto ensure smoother color gradations, better uniformity with Just-Noticeable Difference (JND) < 10%.

• <10% JND
• DICOM Part 14 GSDF

Display

• Panel Size (inch) : 23.8
• Aspect Ratio : 16:9
• Resolution : 2560x1440
• Pixel Pitch : 0.2058mm
• Display Viewing Area (H x V) : 526.85 x 296.35 mm
• Display Surface : AGLR (Anti-Glare, Low-Reflection)
• Panel Type : IPS
• Viewing Angle (CR≧10, H/V) : 178°/ 178°
• Brightness (Typ.) : 300cd/㎡
• Contrast Ratio (Typ.) : 900:1
• Display Colors : 16.7M
• Response Time : 5ms(GTG)
• Flicker-free : Yes

Video Inputs

• USB-C x 1 (DP Alt Mode)
• HDMI(v2.0) x 1
• DisplayPort 1.4 x 2 (Daisy Chain)
• USB-C Power Delivery : 15W
• USB Hub : 3x USB 3.2 Gen 1 Type-A
• USB Hub : 1x USB 3.2 Gen 1 Type-C
• Earphone Jack : Yes

Features

• Preset Mode : Native
• Preset Mode : sRGB
• Preset Mode : DICOM_0 lux
• Preset Mode : DICOM_50 lux
• Preset Mode : DICOM_100 lux
• Preset Mode : DICOM_Auto
• Preset Mode : User Mode 1
• Color Temp. Selection : Yes(5000K, 5500K, 6500K, 7500K, 9300K, 12000K)
• Monochrome : Off / Positive / Negative
• Gamma adjustment : Yes (Support Gamma 2.0/2.2/2.4)
• Aspect Control : Full / Dot to Dot / 1:1 Ratio
• Pixel : 4MP / 3MP
• PIP(PbP) Technology : Yes
• ASUS Hardware Calibration : Yes
• HDCP : Yes, 2.2
• Low Blue Light : Yes
• Eye Care+ Technology : Yes

Sensor

• Ambient Light Sensor : Yes

Power Consumption

• Power Consumption : < 14.5W
• Power Saving Mode : < 0.5W
• Power Off Mode : <0.3W
• Voltage : 100-240V, 50/60Hz

Mechanical Design

• Tilt : Yes (+23° ~ -5°)
• Height Adjustment : 0~130mm
• Pivot : Yes (+90° ~ -90°)
• Swivel : Yes (+30° ~ -30°)
• Antibacterial treatment : Yes
• VESA Wall Mount : 100x100mm
• Kensington Lock : Yes

Dimensions (Esti.)

• Phys. Dimension with Stand (W x H x D) : 53.96 x 51.51 x 19.72 cm (21.24" x 20.28" x 7.76")
• Phys. Dimension without Stand (W x H x D) : 53.96 x 32.22 x 4.46 cm (21.24" x 12.69" x 1.76")
• Box Dimension (W x H x D) : 62.0 x 39.0 x 12.7 cm (24.41" x 15.35" x 5.00")

Weight (Esti.)

• Net Weight : 5.4 kg (11.90 lbs)
• Net Weight without Stand : 3.7 kg (8.16 lbs)
• Gross Weight : 8.2 kg (18.08 lbs)

Reliability

• Operation Temperature : 0°C ~ 40°C
• Operation Humidity : 5% ~ 90%

Compliance Standard

• Energy Star
• TÜV Flicker-free
• TÜV Low Blue Light
• FSC MIX
• ISO 13485
• IEC 60601-1-2
• AAPM TG270
• IEC 62563-1

Accessories (vary by regions)

• Color pre-calibration report
• DisplayPort cable
• HDMI cable
• Power adapter
• Power cord
• Quick release stand
• Quick start guide
• USB-C cable
• Warranty Card
• Ergonomic Stand
