Samsung VH55C-E

Спецификации на Samsung VH55C-E 55’’ 1920x1080 8 ms

Samsung VH55C-E VHB-E Series - 138 cm (55") LCD-Display - Full HD Digital Signage, 8806095363905, LH55VHCEBGBXEN



55 Inch VHC-E Extreme Narrow Bezel Video Wall: LH55VHCEBGBXEN

• An extreme narrow 1.74mm bezel-to-bezel design creates seamless visual experience.
• 700 nit brightness and non-glare panel provide high visibility 24/7.
• Wide viewing angles enable clear image presentation for more viewers in large spaces.
• Picture enhancement technology delivers optimized visuals.

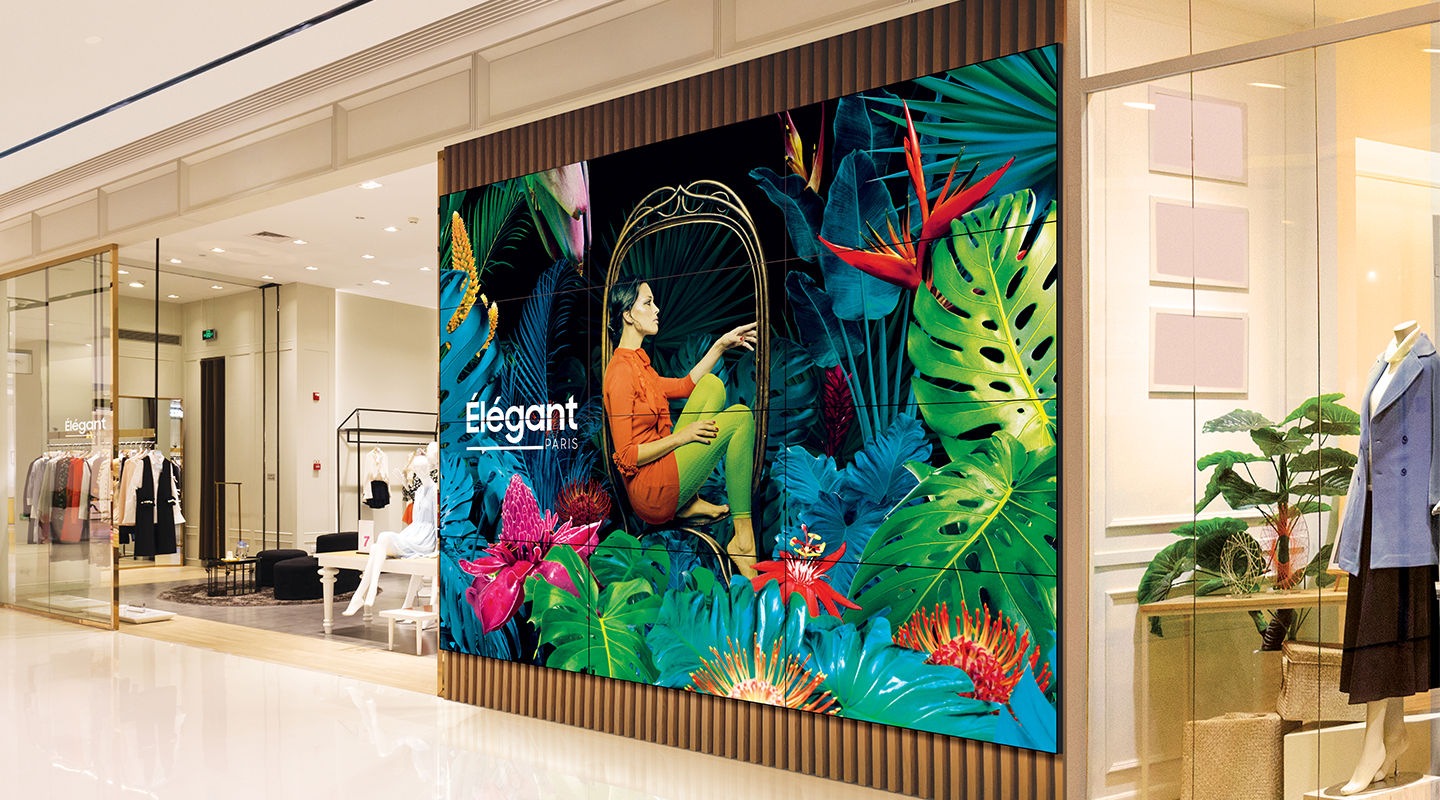

Always-on, space-saving solution with extreme-narrow bezels

See an immersive and dependable viewing experience, 24/7 with Samsung’s VHC-E series. The display’s slim depth and 700 nit brightness ensures highly visible images and legible messages in a wide range of locations from shopping malls to lobbies, meeting rooms, control rooms and more.

Transform any space with high impact visuals

The slender design and 70.4mm cabinet depth provide flexibility for installation and an extreme-narrow 1.74mm bezel-to-bezel width creates a seamless picture opening endless possibilities for designing a captivating visual experience.

*Exact depth varies by display size.*B-to-B means “Panel Bezel to Panel Bezel”.*“Active area to Active area” may vary depending on the model and actual installation environment.

View content from any angle

Wide viewing angles mean content is easily visible even if viewers aren’t standing directly in front of the display. Audiences can get clear details and vivid colors regardless of where the screen is located.

Vibrant images in any light

Non-glare panels evenly distribute light across the screen to maintain vibrant and accurate content. Combined with a high contrast ratio and 24/7 operation, visuals are vivid and eye-catching any time of the day or night — regardless of ambient light.

Image enhancement technology

Samsung’s powerful picture enhancement technology ensures all content is vibrant and clear. With Picture Enhancer mode, color saturation and contrast are improved by adjusting the gamma curve.

Using Black Equalizer mode, dark images are lightened, making details easier to see.

Specifications

Display

• Diagonal Size: 55"
• Panel Type: IPS
• Resolution: 1,920 x 1,080
• Pixel Pitch (HxV): 0.63x0.63
• Brightness (Typ): MAX 700 nit
• Contrast Ratio: 1,000:1
• Viewing Angle (H/V): 178/178
• Response Time: 8ms
• Colour Gamut: 72 %
• Glass Haze: 28 %
• H-Scanning Frequency: 57.3kHz ~ 70kHz
• Maximum Pixel Frequency: 78MHz
• V-Scanning Frequency: 47Hz ~ 63Hz
• Contrast Ratio (Dynamic): 140,000:1
• Operation Time Support: 24/7

Connectivity

• HDMI In: 2
• DP In: 1
• DVI In: 1
• Version of HDMI: 2
• Version of DP: 1.2
• Version of HDCP: 2.2
• USB: 1
• IR In: Yes
• Audio In: Yes
• Audio Out: Stereo Mini Jack
• Video Out: Yes
• Power Out: No
• RS232 In: Yes
• RS232 Out: Stereo Mini Jack
• RJ45 In: Yes
• WiFi: No

Power

• Power Supply: AC100-240V 50/60Hz
• Power Consumption (On Mode): 250 W
• Power Consumption (Sleep Mode): 0.5 W

Dimension

• Set Dimension (WxHxD): 1212.2 x 683.0 x 70.4 mm
• Package Dimension (WxHxD): 1398 x 844 x 257 mm

Weight

• Set Weight with Stand: 19.5 kg
• Package Weight: 27.1 kg

Operation Conditions

• Temperature: 0℃~ 40℃
• Humidity: 10 ~ 90%

Mechanical Specification

• VESA Mount: 600 x 400 mm
• Bezel Width: B2B : 1.74mm (Panel Bezel to Panel Bezel), 1.3mm(U/L), 0.44mm(R/B) A2A : 2.49mm (Active area to Active area), 1.75mm(U/L), 0.74mm(R/B)
• Bezel Color: Black
• Frame Material: Glossy

Optional Feature

• Mount: Yes
• Stand: No

Eco

• Energy Efficiency Class: G

Certification and Compliance

• EMC: FCC (USA) Part 15, Subpart B Class B CE (Europe) : EN 55032:2015+A11:2020 / EN 55035:2017+A11:2020 / EN IEC 61000-3-2:2019 / EN 61000-3-3:2013+A1:2019 VCCI (Japan) : VCCI-CISPR32 : 2015 KC (Korea) : KS C 9832 / KS C 9835 RCM (Australia/ Newzealand) : AS/NZS CISPR32:2015 CCC (China) : GB/T 9254-2008, GB 17625.1-2012 BSMI (Taiwan) : CNS 13438
• Safety: CB (Europe) : IEC62368-1/EN62368-1 CCC (China) : GB 4943.1-2011 (Singapore ) : PSB+IEC62368-1NOM (Mexico ) : Tunerless : NOM-019-SCFI-1998IRAM (Argentina ) : IRAM+IEC62368-1 SIRC (Saudi Arabia ) : SASO+IEC62368-1 BIS (India) : IEC60950-1 / IS13252KC (Korea) : K 60950-1EAC (Russia) : EAC+IEC60950-1 BSMI (Taiwan) : BSMI+IEC60950-1 RCM(Australia) : IEC62368-1/AS/NZS 62368-1 UL (USA) : cUL62368-1 CSA (Canada) : cUL
