Samsung Video Wall VH55C-R

Спецификации на Samsung Video Wall VH55C-R 55’’ 1920x1080 8 ms

Samsung Video Wall VH55C-R VHR-R Series - 138 cm (55") LCD-Display LED Digital Signage, 8806095363912, LH55VHCRBGBXEN



Video Wall VH55C-R LH55VHCRBXEN

• Ultra-thin frame (picture to Figure 0.88mm)
• Matte display with 24/7 operating system
• IP5X certified

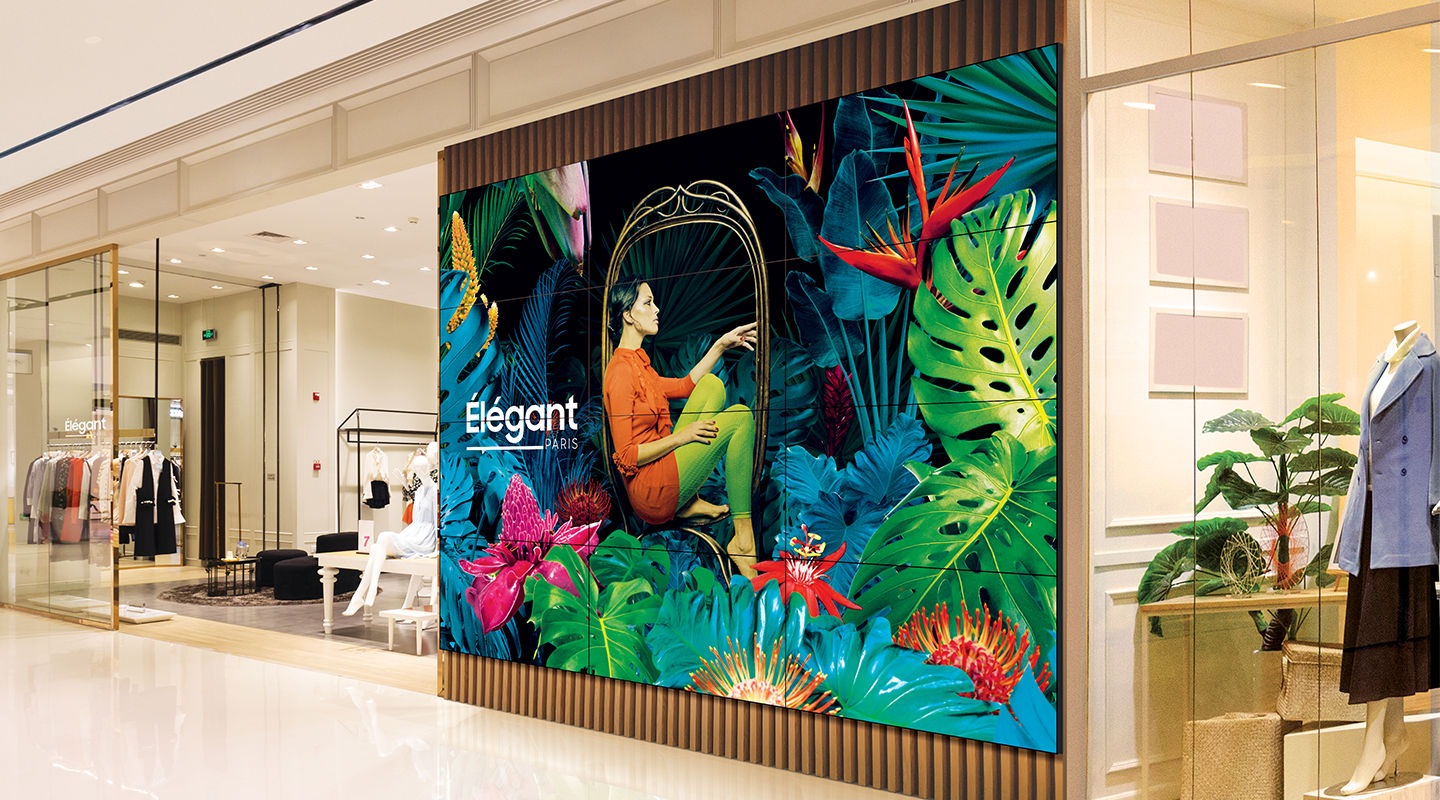

Space-saving solution with extremely narrow frames

With Samsung's VMC-E Series, you can enjoy an impressive and reliable viewing experience around the clock.

The low depth of the display and the brightness of 500 nits provide easily recognizable images and readable messages in many different locations, such as shopping malls, lobbies, conference rooms, control rooms and more.

Convincing content through high-quality images

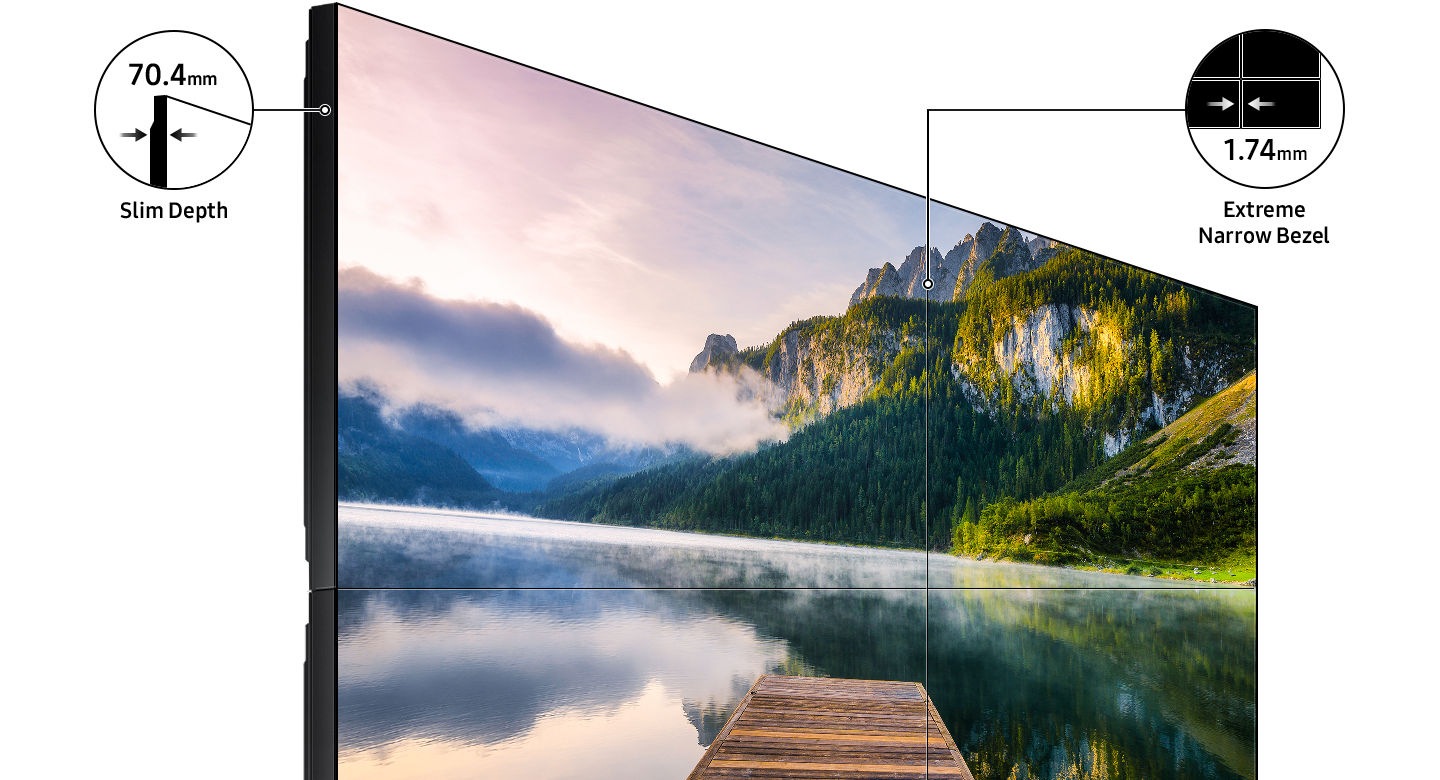

The elegant design with a Cabinet depth of only 70.4 mm offers you high flexibility during installation.

With a width of 1.74 mm, the extremely slim frame ensures fluid image reproduction and opens up an infinite number of possibilities for creating visual experiences that captivate the audience.

* The exact depth depends on the display size.
** “B-to-B” stands for “Panel Bezel to Panel Bezel” (“Bezel Bezel”).
*** “Active Area to Active Area” may vary depending on the model and actual installation environment.

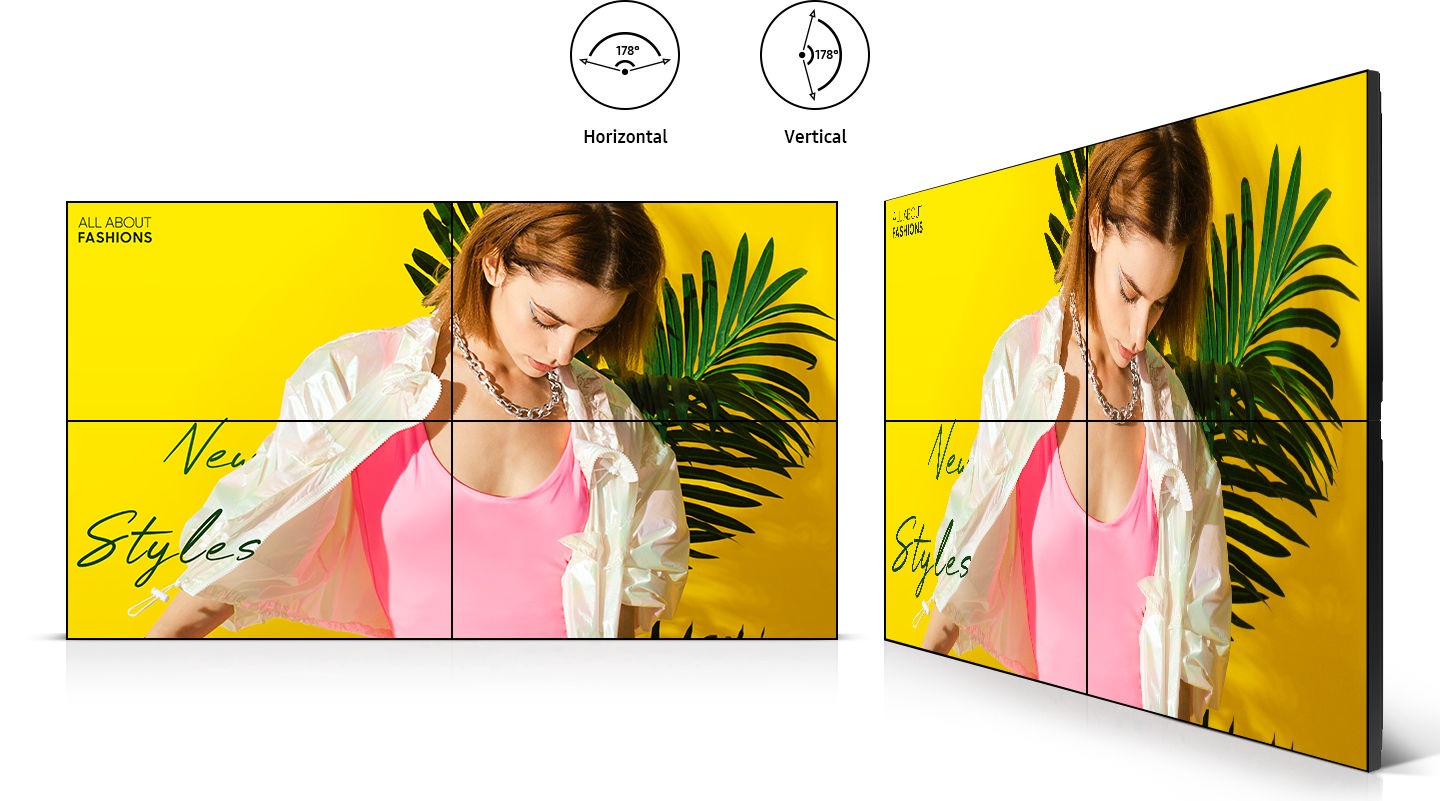

A good view from every angle

Thanks to the wide viewing angle, the contents shown are very visible even if you are not directly in front of the display.

Your viewers get clear details and vivid colors, regardless of where the display is located.

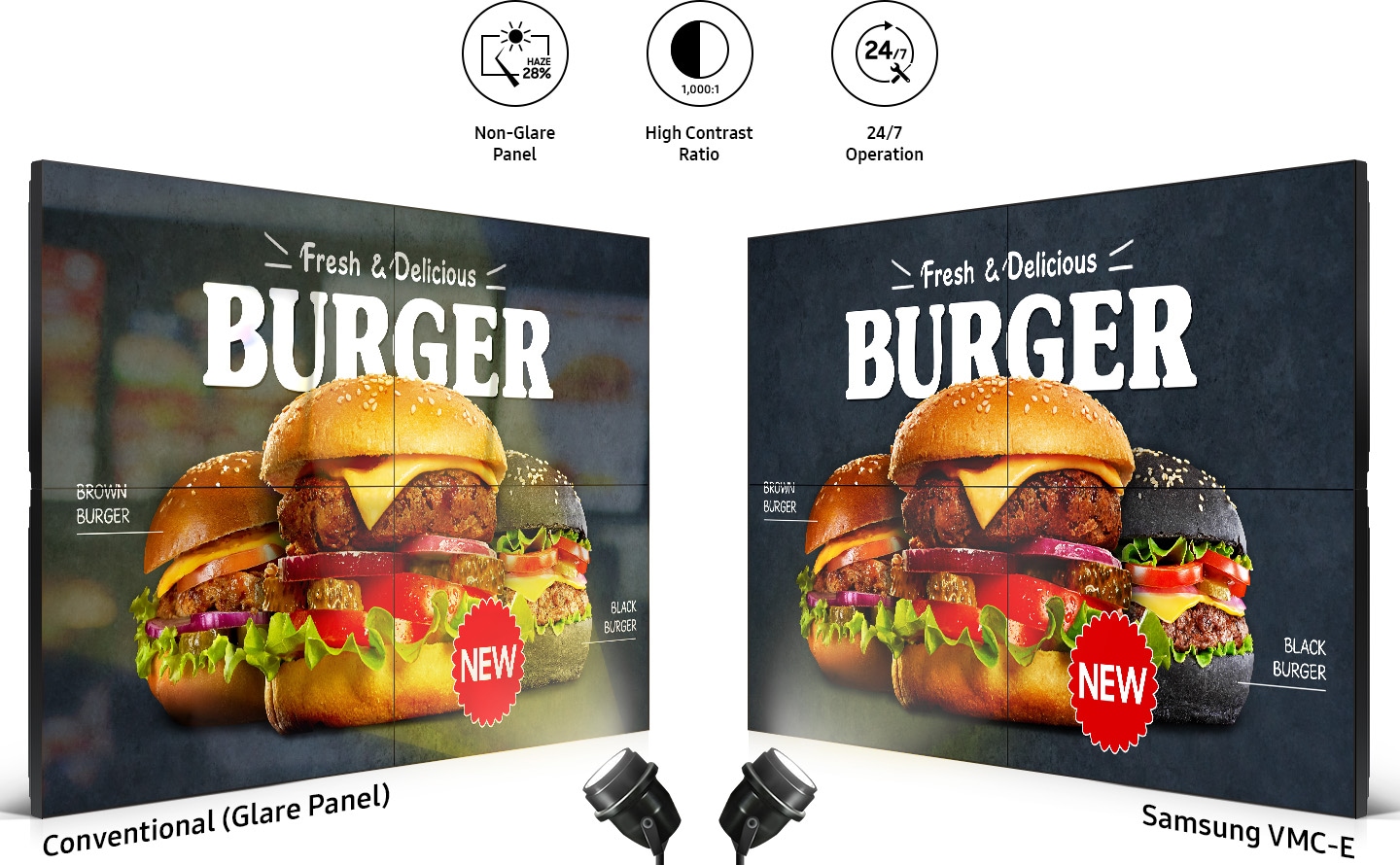

Lively images at almost any time

Glare-free panels distribute the light evenly across the display, ensuring lively and precise content.

In conjunction with the high contrasts and 24/7 operation, important information and images are displayed impressively sharply around the clock – regardless of the ambient light.

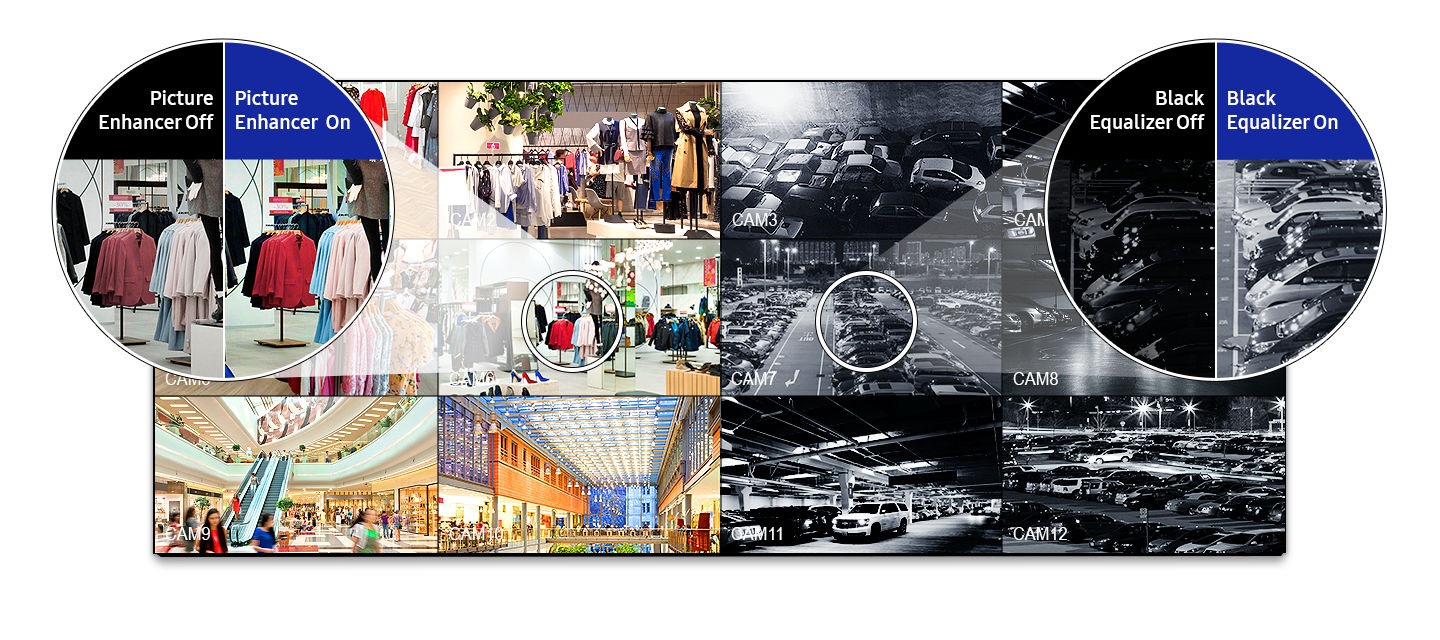

Image enhancement technology

Samsung's powerful image enhancement technology ensures that all content is clearly played back.

With the help of Picture Enhancer Mode, color saturation and contrast ratio can be changed by adjusting the gamma curve.

The Black Equalizer Mode can brighten dark images, making details easier to see.

Display

• Size Diagonal: 55"
• Panel type: IPS
• Screen resolution: 1.920 x 1,080
• Pixel Pitch (H x V): 0.63 x 0.63
• Brightness (type): max. 500 nit
• Contrast ratio: 1,100:1
• Viewing angle (H / V): 178/178
• Response time: 8 ms
• Color scale: 72%
• Glass treatment: 28%
• H-scanning frequency: 57.3 kHz 70 kHz
• Maximum pixel frequency: 78 MHz
• V-scanning frequency: 47 Hz - 63 Hz
• Contrast Ratio (Dynamic): 140,000:1
• Operation Time Support: 24/7

Connectivity

• HDMI In: 2
• DP In: 1
• DVI In: 1
• Version of HDMI: 2
• Version of DP: 1.2
• Version of HDCP: 2.2
• USB: 1
• IR In: Yes
• Audio input: Yes
• Audio output: Stereo Mini Jack
• Video output: Yes
• Current output: No
• RS232 In: Yes
• RS232 Out: Stereo Mini Jack
• RJ45 In: Yes
• WiFi: No

Operating current

• Power supply: AC100-240 V 50/60 Hz
• Power consumption (on mode): 250 W
• Power consumption (sleep mode): 0.5 W

Dimensions

• Overall dimensions (W x H x T): 1211 x 681.7 x 69.9 mm
• Dimensions Packaging (W x H x D): 1414 x 844 x 257 mm

Weight

• Total weight: 16.8 kg
• Weight with packaging: 25.1 kg

Operating conditions

• Temperature: 0°C to 40°C
• Humidity: 10 - 90%

Mechanical specifications

• VESA mount: 600 x 400 mm
• Mount width: 0.44 (even)
• Bezel Color: Black
• Frame material: Glouting

Optional functions

• Mounting: Yes
• Foot: No

Eco-fashion

• Energy efficiency: class G

Certification and compliance

• EMC: FCC (USA) Part 15, Subsection B Class B CE (Europe): EN 55032:2015 + A11:2020 / EN 55035:2017 + A11:2020 / EN IEC 61000-3-2:2019 / EN 61000-3-3:2013 + A1:2019 VCCI (Japan): VCCI-CISPR32:2015 KC (Korea): KS C 9832 / KS C 9835 RCM (Australia)17625.1-2012 BSMI (Taiwan): CNS 13438
• Security: CB (Europe): IEC 62368-1/EN 62368-1 CCC (China): GB 4943.1-2011 (Singapore): PSB + IEC 62368-1NOM (Mexico): without tuner: NOM-019-SCFI-1998IRAM (Argentina): IRAM + IEC 62368-1 SIRC (Saudi Arabia): SASO + IEC 62368-1 BIS (Indi)EAC (Russia): EAC + IEC 60950-1 BSMI (Taiwan): BSMI + IEC 60950-1 RCM (Australia): IEC 62368-1/AS/AS/NZS 62368-1 UL (USA): cUL62368-1 CSA (Canada): cUL
