Samsung Interactive E-Board WA65D

Спецификации на Samsung Interactive E-Board WA65D 65’’ 3840x2160 8 ms

Samsung Interactive E-Board WA65D LH65WADWLGCXEN, 8806095575728

65" 3840x2160, 60 Hz, ADS, 8 ms, 400 cd/m2, 1200 : 1, Quad-Core A55, 8GB RAM, 64 GB Storage, IR Touch, 2x12W, Mirroring, Remote Management, Wi-Fi, BT, 3xHDMI, RJ45, RS232C, Android 13, Black

65 Inch Interactive E-board (Android) WAD - LH65WADWLGCXEN

• Samsung interactive display WAD series offers a dynamic, engaging experience designed for the classroom of the future.
• A variety of screen mode options, including split screen mode and multi-window mode, enables users to easily present and multitask.
• Up to nine screens can be shared simultaneously for maximum productivity in real time, ensuring every student is included.

Unlimited Learning Possibilities

Introducing the Interactive Display WAD series, for engaging educational experiences. Based on Android OS, it provides a familiar and intuitive user experience. Download apps through Google Play and use pre-installed apps like YouTube and Chrome to stay productive and open a new era of education.

An intuitive UX that fits your needs

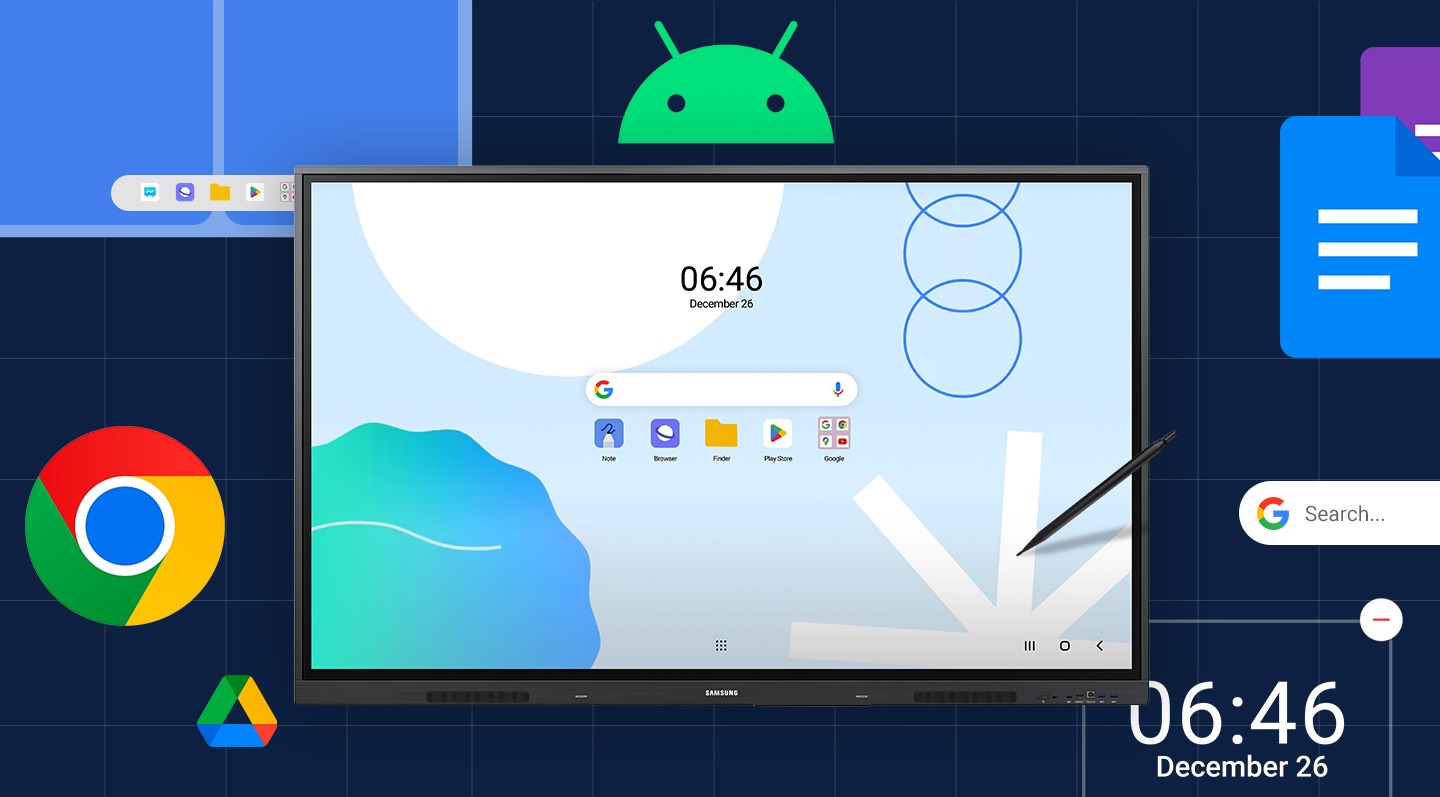

Powered by Android™

The WAD series offers familiarity to its users. It's compatible with other Android devices and provides a variety of widgets and an easily customisable home screen. These features create more flexibility in building an environment that suits various learning needs.

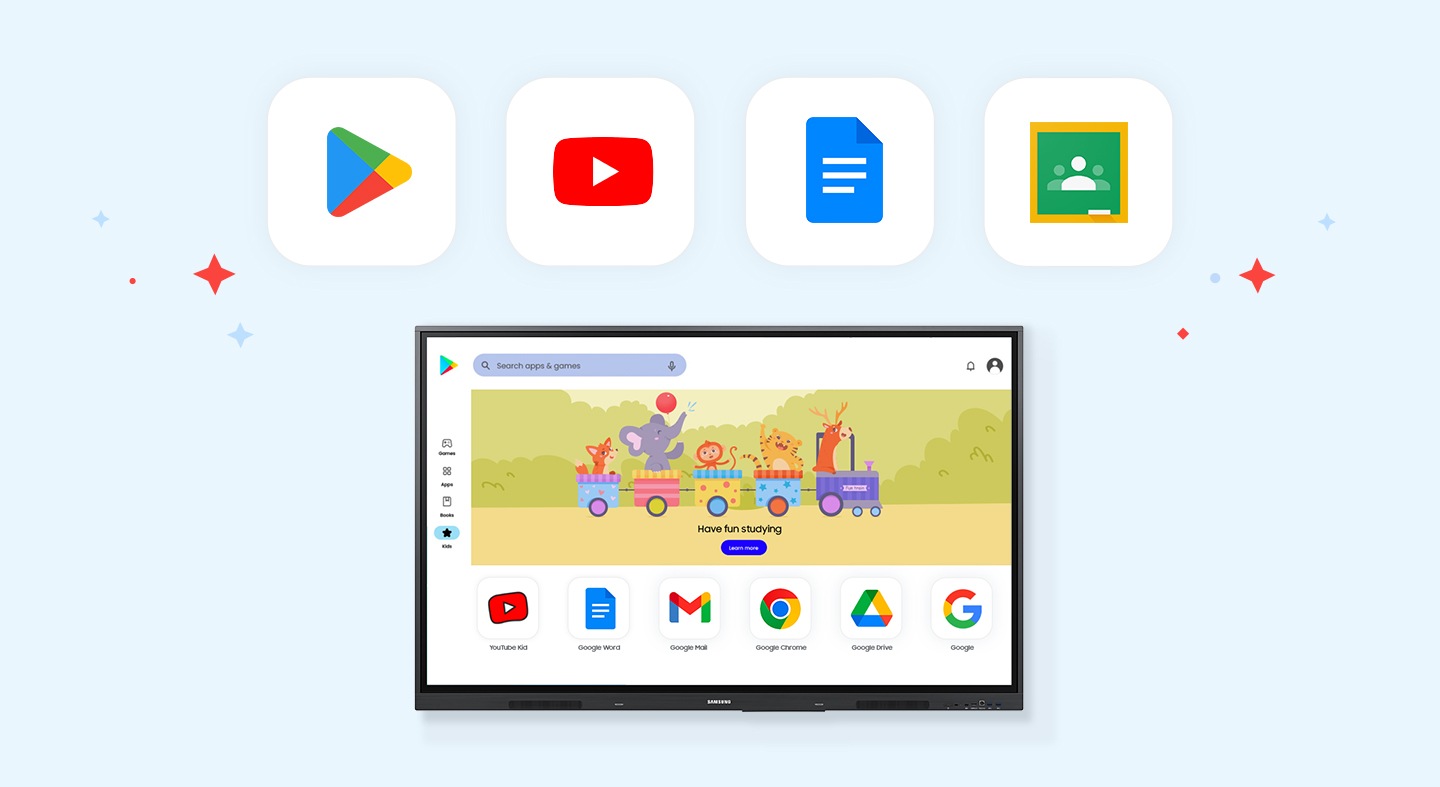

Effortless access to Google services
EDLA Certification

With an EDLA certification, the WAD series supports a variety of Google services like Google Play and YouTube. This access to major educational apps like Google Classroom leads to increased efficiency and enhanced communication with students.

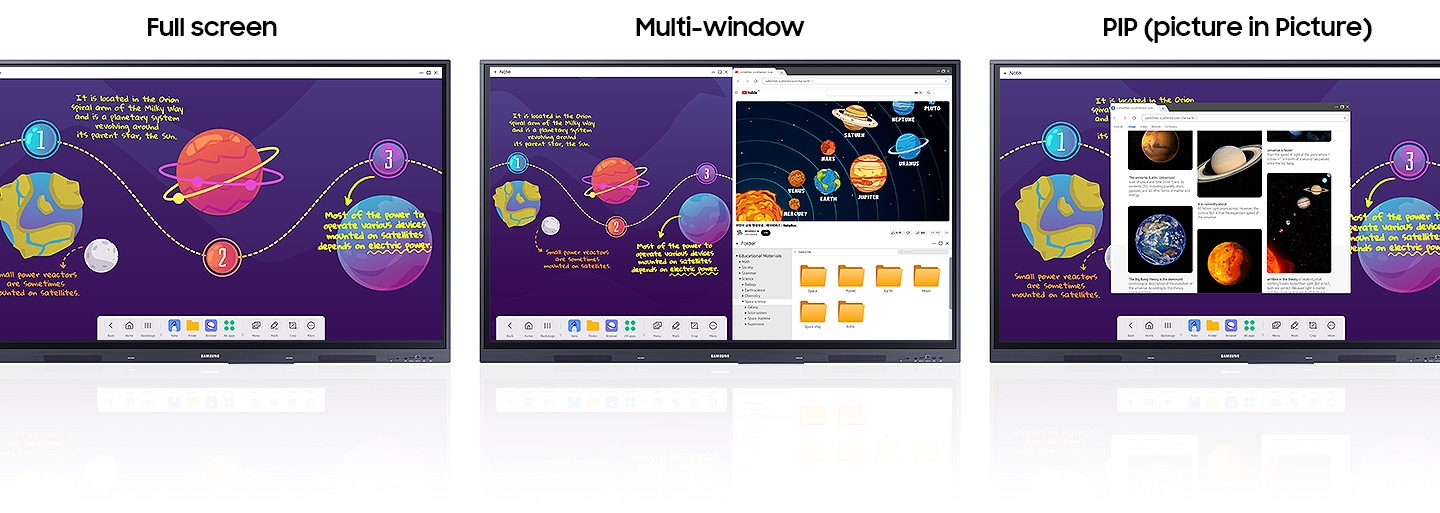

Display multiple screens simultaneously
Easy Multitasking

Various screen modes, including split-screen and multi-window, enable teachers to easily display information and multitask at the same time on the WAD series. This flexibility provides convenient access to all the screens required to create engaging learning environments.

Specifications

Display

• Diagonal Size: 65"
• Panel Type: ADS
• Resolution: 3,840 x 2,160
• Pixel Pitch (HxV): 372(H)x372(V)
• Brightness (Typ): 400 nit
• Contrast Ratio: 1,200:1
• Viewing Angle (H/V): 178/178
• Response Time: 8ms
• Colour Gamut: 72%
• Glass Haze: 25%
• H-Scanning Frequency: 135KHz
• Maximum Pixel Frequency: 78MHz
• V-Scanning Frequency: 60Hz
• Contrast Ratio (Dynamic): N/A
• Operation Time Support: 12/7

Connectivity

• HDMI In: 3
• DP In: N/A
• DVI In: N/A
• Version of HDMI: 2
• Version of DP: N/A
• Version of HDCP: 2.1
• Tuner In: N/A
• USB: 5 (2.0 X1, 3.0X4)
• IR In: Yes
• HDBaseT In: N/A
• Audio In: Stereo Mini Jack
• Audio Out: Stereo Mini Jack
• Video Out: Yes
• Power Out: N/A
• RS232 In: Yes
• RS232 Out: Yes
• RJ45 In: Yes
• RJ45 Out: Yes
• WiFi: Yes
• 3G Dongle: N/A
• Bluetooth: Yes

Power

• Power Supply: AC100-240V 50/60Hz
• Power Consumption (Off Mode): N/A
• Power Consumption (On Mode): 385W
• Power Consumption (Sleep Mode): 0.5W↓

Dimension

• Set Dimension (WxHxD): 1488 x 897 x 88 mm
• Package Dimension (WxHxD): 1628 x 1024 x 208 mm

Weight

• Set Weight with Stand: 33.9 kg
• Package Weight: 42.9 kg

Operation Conditions

• Temperature: 0℃~40℃
• Humidity: 10 ~ 90%

Mechanical Specification

• VESA Mount: 600 x 400 mm
• Bezel Width: 16.4mm(U), 16.4mm(L/R), 44.9mm(B)
• Bezel Color: Space Gray
• Frame Material: Non-Glossy

Optional Feature

• Touch: Yes
• Mount: N/A
• Stand: N/A

SoC

• OS Version: Android-13
• Flash Memory Size: 64GB

Eco

• Energy Efficiency Class: N/A

Touch

• Touch Technology: IR

Certification and Compliance

• EMC: Part 15, Subpart B Class A KS C9832, KS C9835 EN55032:2015/A11:2020/A1:2020,EN 55035:2017/A11:2020 EN 61000-3-2:2019/A1:2021 ?? ? ? ? ? ? EN 61000-3-3:2013/A1:2019/A2:2021 EN 61000-3-2:2019/A1:2021 ?? ? ? ? ? ? EN 61000-3-3:2013/A1:2019/A2:2021 EN 61000-3-2:2019/A1:2021 ?? ? ? ? ? ? EN 61000-3-3:2013/A1:2019/A2:2021 EN 55035:2017/A11:2020 EN 61000-3-2:2019/A1:2021 ?? ? ? ? ? ? EN 61000-3-3:2013/A1:2019/A2:2021 J55032 , VCCI-CISPR32 JIS C61000-3-2 GB9254-2021 GB17625.1-2012 CNS13438 (ITE EMI) Class A /? AS/NZS? CISPR 32 EN55032:2015/A11:2020/A1:2020,EN 55035:2017/A11:2020
• Safety: IEC 62368-1 Edtion 3&IEC 60950-1 UL62368-1 edition 3 GB4943.1-2022 PSB+ IEC 62368-1 NOM-019 K 62368 IRAM+ IEC 62368-1 EAC+ IEC 62368-1 INMETRO+ IEC 62368-1 SASO+ IEC 62368-1 BSMI+ IEC 62368-1 IEC 62368-1/AS/NZS 62368-1 IEC60950-1 / IS13252
