Samsung QB24C-T LH24QBCTBGCXEN

Спецификации на Samsung QB24C-T LH24QBCTBGCXEN 23.8’’ 1920x1080 14 ms

Samsung QB24C-T QBC-T Series LH24QBCTBGCXEN - 61 cm (24") (60.5 cm (23.8")) LCD-Display- Full HD , 8806095303710

24 Inch Interactive Display QBC-T : LH24QBCTBGCXEN

• Small display, Big impact
• 10 point multi-touch. Fast, effective touch capabilities
• EMS Class B & IP5X. Safe operation & reliable performance

Expand commercial space with compact display

Get the most out of every space with Samsung QB24C-T small digital signage. The compact display provides sharp messaging with its Full HD resolution.

Its enhanced internal solutions and intuitive home screen UX make it easy to use, also ensuring reliable performance for any business use.

Fast, effective touch capabilities
10 point multi-touch

The QB24C-T provides 10-point multi-touch, while fast response time powers an intuitive interface that allows customer-driven search and action, creating new customer interactions that drive purchases.

Connect with convenience

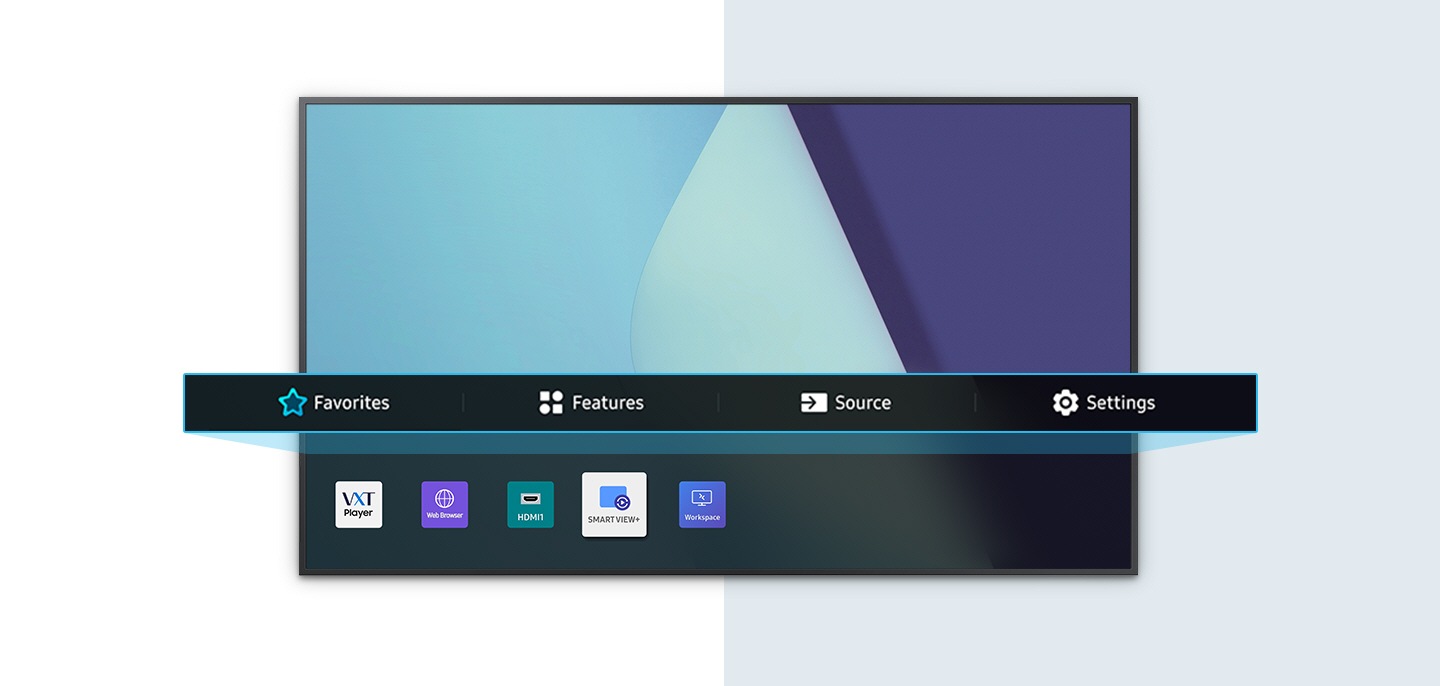

Home UI

QB24C boasts greater usability with an upgraded home screen UI. Popular categories like Features, Sources and Settings are displayed on the same screen for convenient availability. The Favorites folder grants users quick, easy access to frequently used features in a single click.

Convenient, clean display control
Center IR

With center IR, each display receives IR signals directly to the panel, allowing easy and convenient remote control. When mounted, the display doesn't require an IR receiver cable extension. Built-in Wi-Fi allows wireless remote management for both content and display.

Specifications

Display

• Diagonal Size: 23.8"
• Panel Type: ADS
• Resolution: 1,920 x 1,080
• Pixel Pitch (HxV): 0.2745 x 0.2745 mm
• Brightness (Typ): 250 (Typ, w/o glass)
• Contrast Ratio: 1000:1(without glass)
• Viewing Angle (Horizontal/Vertical): 178/178
• Response Time: 14ms
• Colour Gamut: 72% (NTSC)
• Glass Haze: 25(without glass)
• H-Scanning Frequency: 56~84.5KHz
• Maximum Pixel Frequency: 148.5MHz
• V-Scanning Frequency: 48~75Hz
• Contrast Ratio (Dynamic): Mega
• Operation Time Support: 16/7

Connectivity

• HDMI In: 1
• DP In: N/A
• DVI In: N/A
• Version of HDMI: 1.4
• Version of DP: No
• Version of HDCP: 2.2
• Tuner In: N/A
• USB: 1
• IR In: Yes
• HDBaseT In: N/A
• Audio In: No
• Audio Out: Stereo Mini Jack
• Video Out: N/A
• Video Out: N/A
• RS232 In: Yes
• RS232 Out: N/A
• RJ45 In: Yes
• RJ45 Out: N/A
• WiFi: Yes
• 3G Dongle: N/A
• Bluetooth: Yes

Power

• Power Supply: AC100-240V 50/60Hz
• Power Consumption (Off Mode): N/A
• Power Consumption (On Mode): 38.5W
• Power Consumption (Sleep Mode): 0.5 W

Dimension

• Set Dimension (WxHxD): 547.9 x 334.4 x 34.6 mm
• Package Dimension (WxHxD): 620 x 419 x 122 mm

Weight

• Set Weight with Stand: 4.0 kg
• Package Weight: 5.2 kg

Operation Conditions

• Temperature: 0 °C~ 40 °C
• Humidity: 10 ~ 80%, non-condensing

Mechanical Specification

• VESA Mount: 100 x 100 mm
• Bezel Width: N/A
• Frame Material: Non-Glossy

Optional Feature

• Touch: Yes
• Mount: No
• Stand: No

SoC

• OS Version: Tizen 7.0
• Flash Memory Size: 8GB

Eco

• Energy Efficiency Class: N/A

Touch

• Touch Technology: Capative

Certification and Compliance

• EMC: Class B FCC (USA) Part 15, Subpart B; KCC/EK (Korea) Tuner : KN32 / KN35; Tunerless : KN32 / KN35 CE (Europe) EN55032 : 2012 or 2015; EN55024:2010 or EN 55035:2017 VCCI (Japan) VCCI CISPR32:2016; CCC(China) GB/T9254-2008; GB17625.1-2012 BSMI (Taiwan) CNS13438 ( ITE EMI ) CNS14336-1 ( ITE Safety ) CNS15663 (RoHS); C-Tick (Australia) AS/NZS CISPR32:2015; GOST(Russia/CIS) ROCT CISPR 24-2013; ROCT CISPR 22:2005
• Safety: CB (Europe) : IEC60950-1/EN60950-1CCC (China) : GB4943.1-2011PSB (Singapore ) : PSB+IEC60950-1NOM (Mexico ) : NOM-001-SCFI-1993IRAM (Argentina ) : IRAM+IEC60950-1SASO (Saudi Arabia ) : SASO+IEC60950-1BIS(India) : IEC60950-1 / IS13252NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998KC(Korea) : K 60950-1EAC(Russia) : EAC+IEC60950-1INMETRO(Brazil) : INMETRO+IEC60950-1BSMI(Taiwan) : BSMI+IEC60950-1RCM(Australia) : IEC60950-1/AS/NZS 60950-1UL(USA) : cUL60950
