Samsung IEA Indoor LED P2.5 LH025IEACLS/XY

Спецификации на Samsung IEA Indoor LED P2.5 LH025IEACLS/XY 25’’ 384x216 -

Samsung LH025IEACLS Transparent (mesh) LED - 384 x 216 Pixel, 8806092296497, LH025IEACLS/EN

IEA Indoor LED P2.5 LH025IEACLS/XY

• Full-sized cabinet for easy installation and affordability
• Flexible design options
• Clear, accurate picture with HDR technology
• Efficient UHD delivery with S-Box

Captivate potential customers

Samsung’s IER series LED displays deliver stunning picture quality at a cost-efficient price point. This displays can be custom-fit for the specific space requirements, giving customers a more immersive experience.

Easy and affordable installation

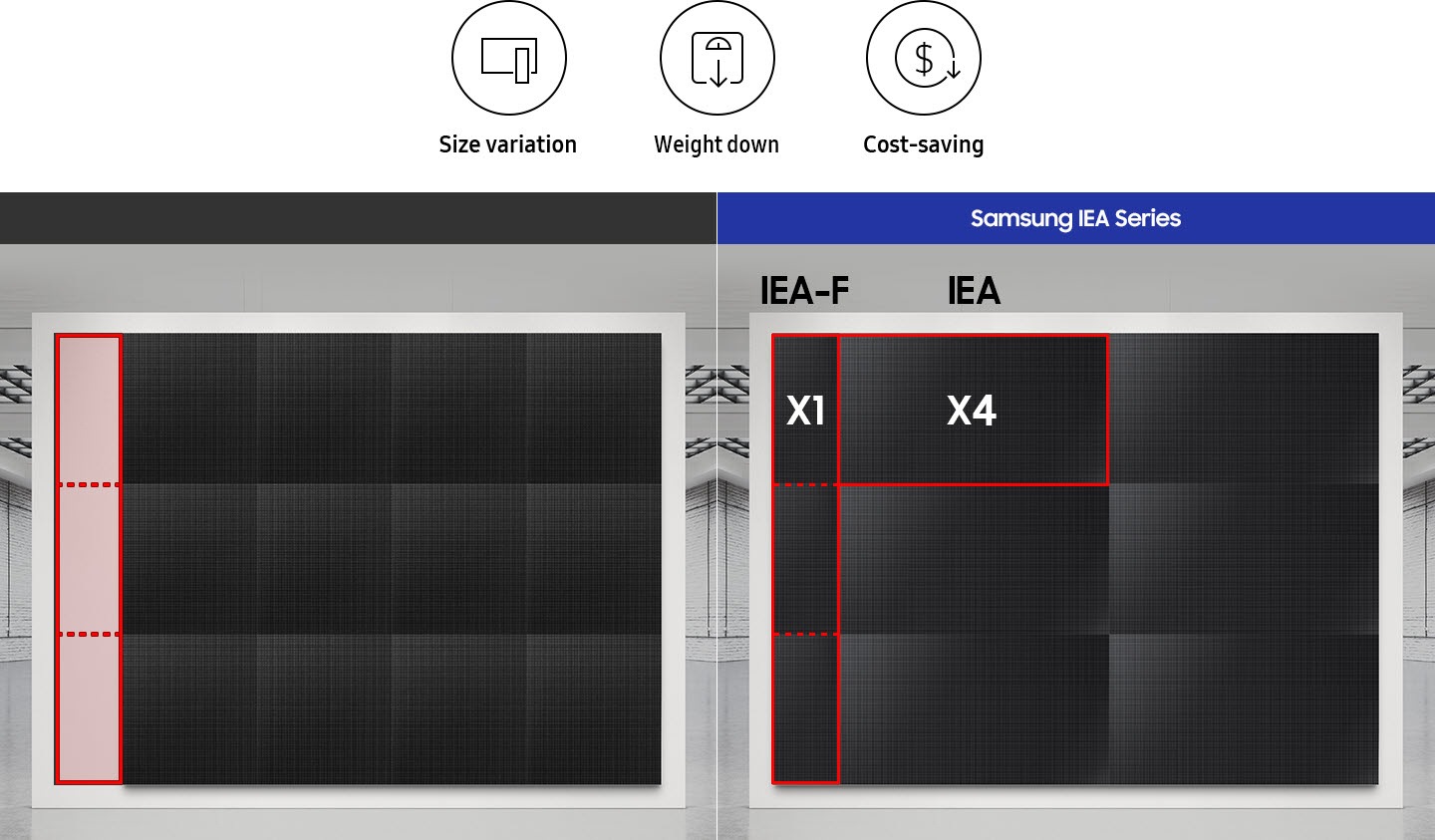

Two cabinet sizing options

The LED IEA series supports two cabinet types. One version features a larger, lighter screen, simplifying installation. The other version is a quarter cabinet which provides more flexibility in design.

Flexible design for various indoor settings
Easy and convenient installation

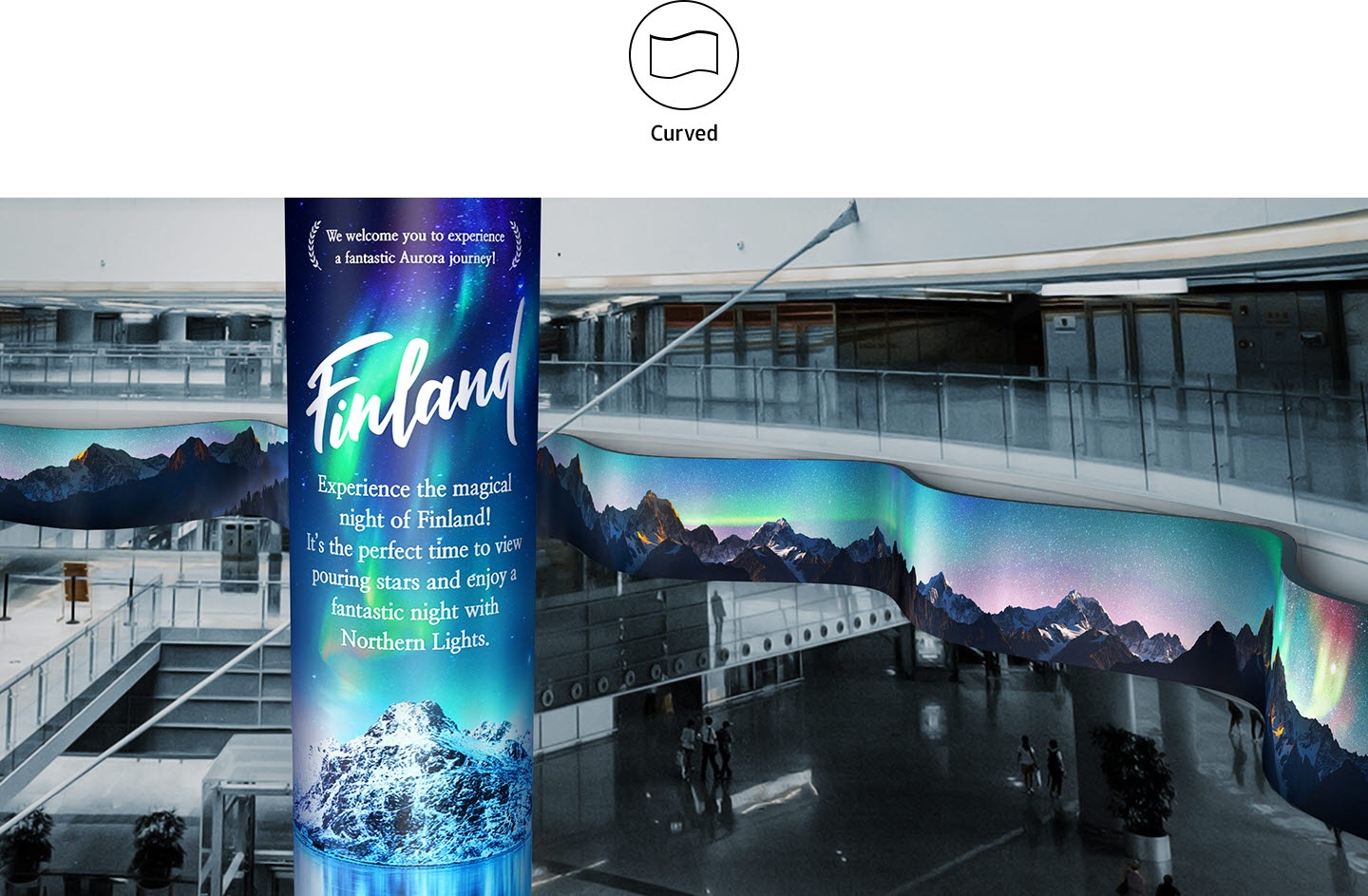

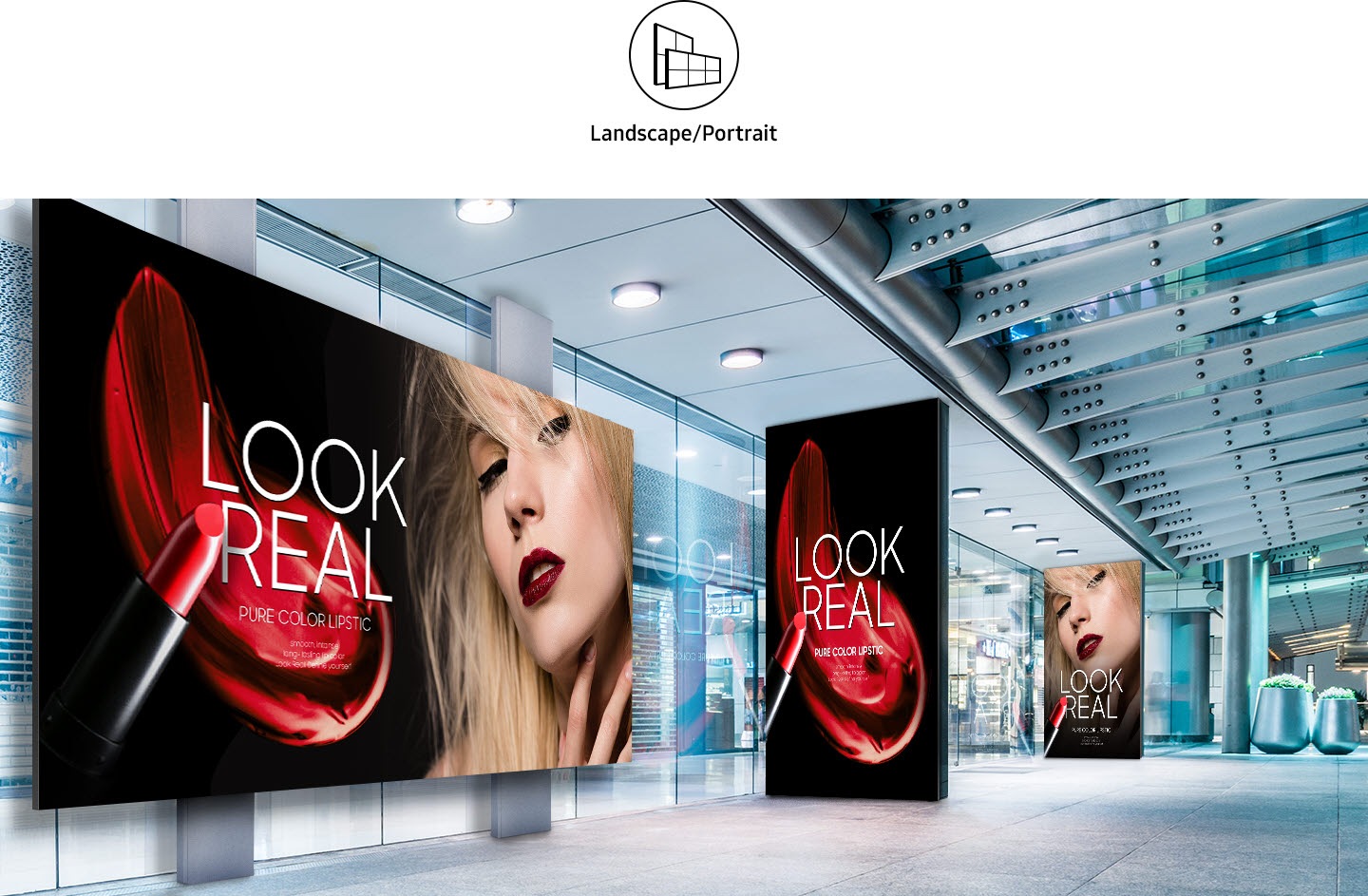

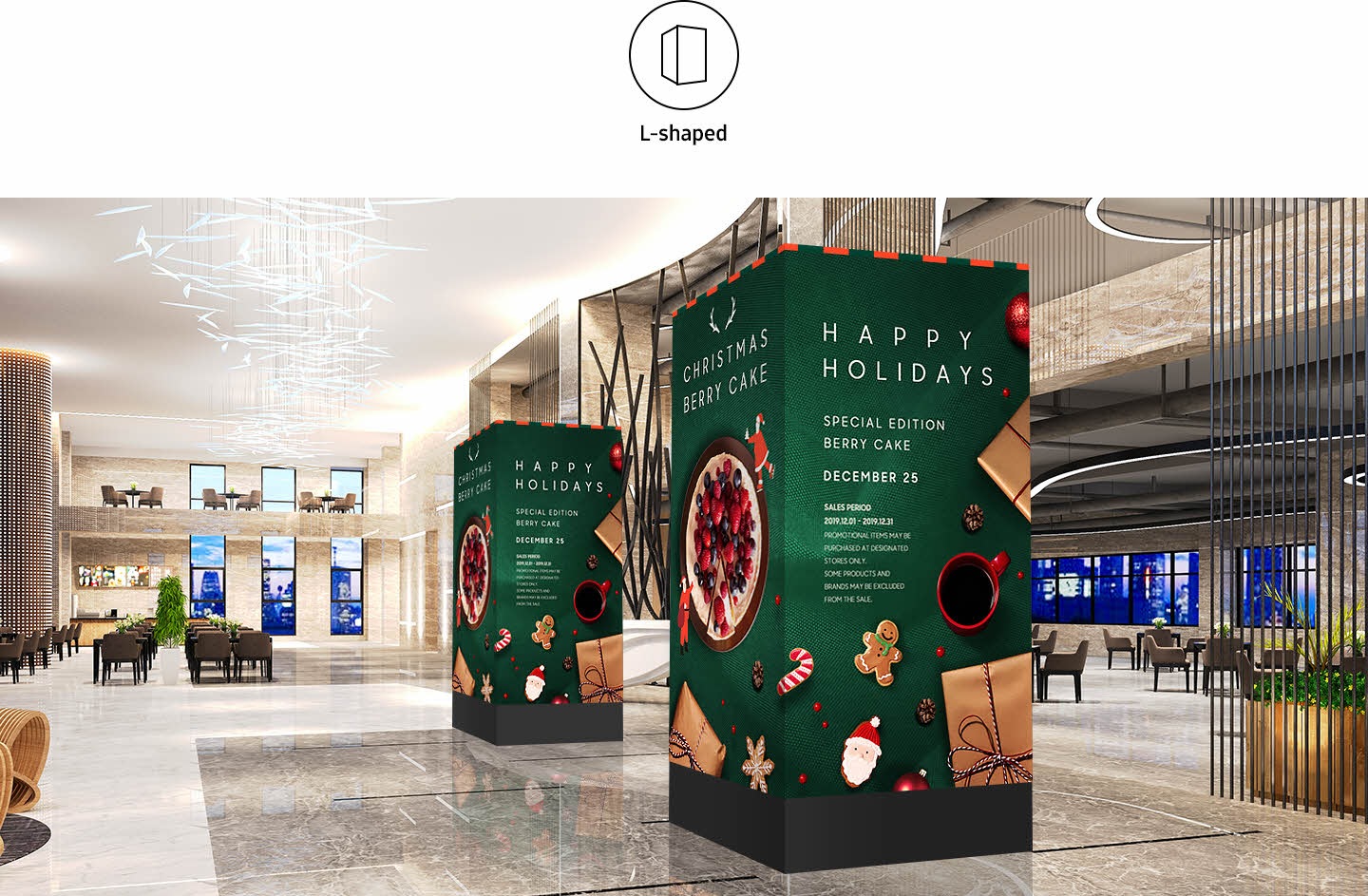

The IEA series’ advanced design provides flexibility for virtually any indoor retail or other business environment. With support of portrait and landscape orientation — and even curved* and l-shaped installations — content can be displayed to meet the preferred layout for virtually any store location.

Flexible design for various indoor settings
Easy and convenient installation

The IEA series’ advanced design provides flexibility for virtually any indoor retail or other business environment. With support of portrait and landscape orientation — and even curved* and l-shaped installations — content can be displayed to meet the preferred layout for virtually any store location.

Flexible design for various indoor settings
Easy and convenient installation

The IEA series’ advanced design provides flexibility for virtually any indoor retail or other business environment. With support of portrait and landscape orientation — and even curved* and l-shaped installations — content can be displayed to meet the preferred layout for virtually any store location.

*Image simulated for illustrative purposes *Not applicable for convex. Concave up to 12,000R

Clearly refined visuals providing optimum viewing experience
Dynamic Peaking and Inverse Tone Mapping

LED HDR leverages advanced refinement technologies for true-to-life picture presentation. Dynamic Peaking and Inverse Tone Mapping enhance content to optimum peak brightness levels with incredible contrast and without shine, and in-depth Colour Mapping helps ensure an accurate expression of colours*.

Clearly refined visuals providing optimum viewing experience
Dynamic Peaking and Inverse Tone Mapping

LED HDR leverages advanced refinement technologies for true-to-life picture presentation. Dynamic Peaking and Inverse Tone Mapping enhance content to optimum peak brightness levels with incredible contrast and without shine, and in-depth Colour Mapping helps ensure an accurate expression of colours*.

Clearly refined visuals providing optimum viewing experience
Dynamic Peaking and Inverse Tone Mapping

LED HDR leverages advanced refinement technologies for true-to-life picture presentation. Dynamic Peaking and Inverse Tone Mapping enhance content to optimum peak brightness levels with incredible contrast and without shine, and in-depth Colour Mapping helps ensure an accurate expression of colours*.

*Picture quality depends on quality and resolution of source content. Performance may vary depending on installation environment. *Image simulated for illustrative purposes

Specifications

• Operation Conditions
• Working Temperature: 0℃~+40℃/10~80%RH
• IP Rating²: IP20

Physical Parameter

• Pixel Pitch: 2.5mm
• Pixel Configuration: 384 X 216
• Diode Type: 3-in-1 2121

Optical Parameter

• Brightness: 500nit
• Contrast Ratio⁵: 2500:1
• Viewing Angle (Horizontal/Vertical): 150/150°
• Color Temperature: 6,500K+-500K(floating Bin)

Electrical Parameter

• Video Rate: 60 Hz
• Input Voltage (alternating current): 100~240VAC
• Power Frequency: 50/60Hz
• Power Consumption (Max): 347 W/㎡
• Refresh Rate⁴: 3840 Hz

Certification and Compliance

• Safety: Safety 60950-1
• EMC: EMC Class A

Television

• Type: LED display unit
• Image Aspect Ratio: 16:9
• Image Contrast Ratio: 2500:1
• Viewing Angle: 150°
• Brightness: 500 cd/m²
• Enhanced Refresh Rate: 3840 Hz
• Diagonal Size: 25,4 in
• Diagonal Size (metric): 64,5 cm
• Indoor / Outdoor: Indoor
• HDR Capable: Yes
• Modes: Portrait mode, Landscape mode
• Design: Flexible design
• HDR Technology: LED HDR
• Color Temperature: 6500K

Connections

• Connector Type: HDMI, DisplayPort, DVI

Power Device

• Type: Power supply
• Power Consumption Operational: 347 Watt
• Voltage Required: AC 100-240
• Frequency Required: 50/60
• Nominal Voltage: AC 120/230 V
• Power Consumption Stand by: 347 Watt
• Video Wall Power Consumption (Max): 347 W/m²

LED Display Unit

• Pixel Pitch: 2,5 mm
• LED Type: 3-in-1 2121
• Pixel Configuration: 1 red, 1 green, 1 blue
• Resolution: 384 x 216

Dimensions & Weight

• Width: 96 cm
• Depth: 7,95 cm
• Height: 54 cm
• Weight: 10,8 kg

Miscellaneous

• Color Category: Black
