Phanteks XT View Matrix Black

Спецификации на Phanteks XT View Matrix Black E-ATX

Phanteks XT View Matrix black, 886523304081, PH-XT523VM1_DBK01

XT View Matrix
XTreme space, Cooling & Value

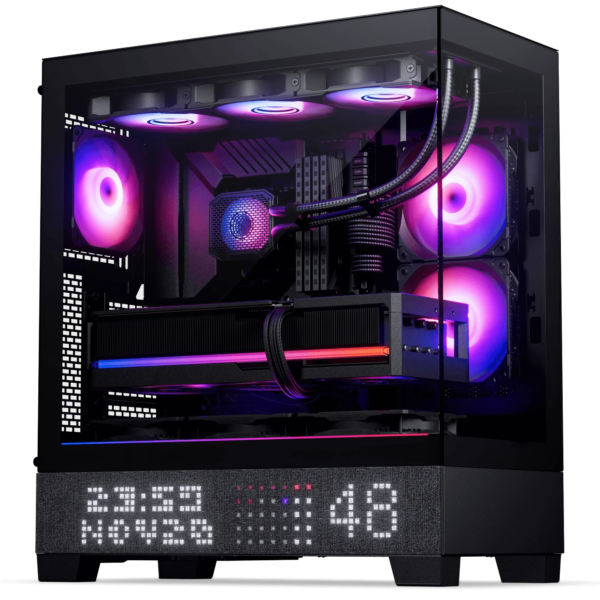

The XT View Matrix combines smart design and modern innovation with a unique 600-LED Matrix Screen elegantly hidden behind the fabric panel, bringing lighting and information to life in a subtle, integrated way.

Built for today’s powerful hardware, the XT View Matrix offers exceptional cooling capacity with support for up to 9 fans and dedicated radiator space at the top. Its spacious layout easily fits the largest GPUs, with room to spare for cable management, and supports the latest rear-connector motherboards to achieve a truly zero-cable setup.

System Information, Reimagined

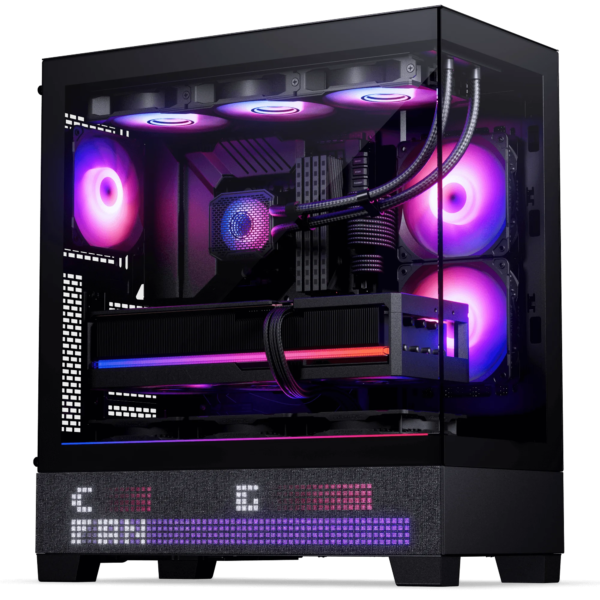

Matrix 600

• Integrated 600-LED Matrix screen hidden behind the fabric interior for a clean, seamless system display.
• Customize system stats, time, date, lighting effects, and animations through the NexLinq App for Windows.
• Fine mesh fabric covers the Matrix 600 to subtly diffuse the LED light for improved readability and visual depth.
• Hardware-driven Matrix operation ensures smooth visuals with minimal CPU impact.
• Designed as part of the Phanteks NexLinq ecosystem for unified system monitoring and control.

Computing with a View

• Near-seamless glass panels.
• Plenty of space for the most powerful graphics cards.
• Highly durable wear- and UV-resistant fabric.

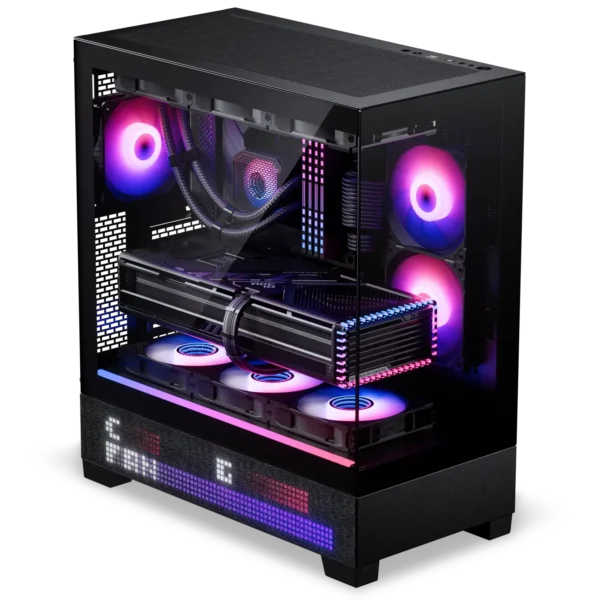

Cool and Powerful

• Dedicated top 360 radiator space in the top.
• Triple 120mm positions on the midplate for direct GPU cooling.
• Supports a total of 9x 120mm fan locations.

Integrated Lighting

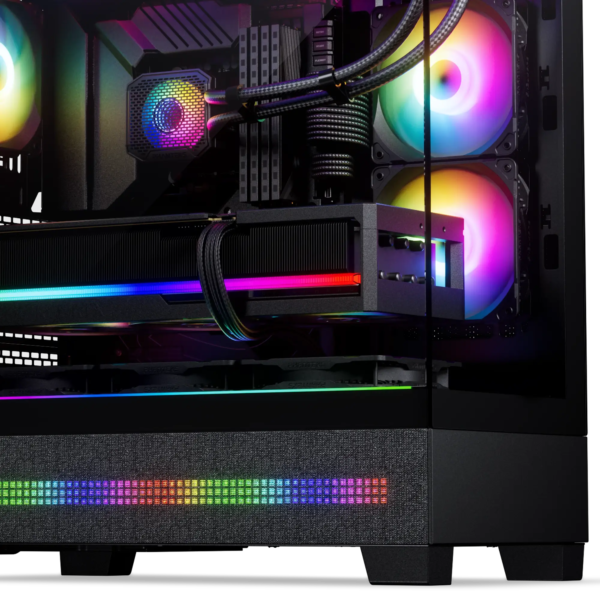

• Smooth and diffuse D-RGB lines run from top to bottom of the Evolv X2.
• 3x built-in D-RGB LED strips are pre-installed and connected.
• The Matrix display visually complements the integrated D-RGB lighting, adding an additional layer of system expression.

To operate the D-RGB lighting, it must be connected to a Phanteks controller or an A-RGB equipped mainboard. We strive to make it as easy to use and compatible as possible.

Storage

• Bottom Storage Bracket
• Supports 2x 3.5” HDD drives or 1x 3.5” HDD and 2x 2.5” SSD drives.

Fan Positions

• 3x 120 mm top fans.
• 1x 120 mm rear fan.
• 3x 120 mm bottom fans.

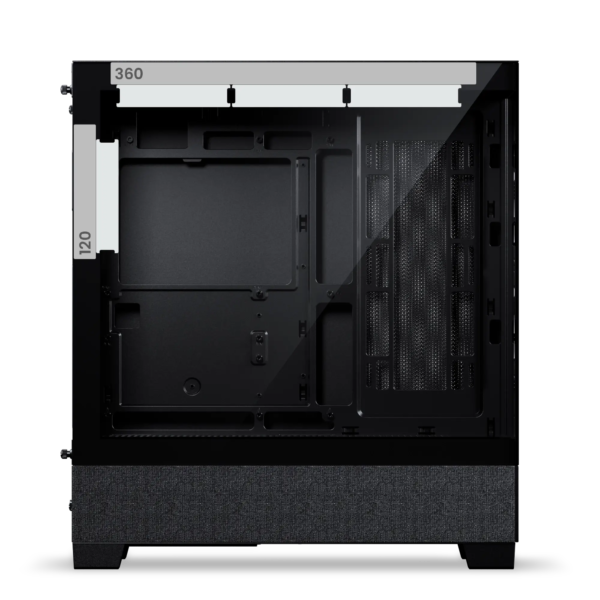

Radiator Positions

• Max. 360 top radiator up to 410 x 130 x 38 mm
• Max. 120 rear radiator

Specifications

General

• Model No.: PH-XT523VM1_DBK01
• UPC Code: 886523304081
• Case Dimensions: 454 x 228 x 588 mm | 17.87 x 8.98 x 23.15 in
• From Factor: Mid-Tower
• Mainboard Support: *E-ATX | ATX | Micro-ATX | Mini-ITX: *Up to 280 mm wide
• Materials: Steel chassis | Aluminum panels | Tempered glass window | ABS plastic | Mesh fabric
• Color: Black
• Expansion Slots: 7
• Vertical GPU Support: Yes: Riser cable & bracket sold separately
• Internal 2.5″ Positions: 2: + 1x 3.5″ HDD
• Internal 3.5″ Positions: 2: + 0x 2.5″ SSD
• Front I/O:
  • 2x USB 3.0
  • 1x USB-C 3.2 Gen2x2
  • 1x Microphone | Headphone combo
  • D-RGB color button
  • D-RGB mode button
  • Power button
  • Reset button

Matrix Display

• LED Amount: 600
• Power Input: 5V | 4.3A
• Fabric Material: Polyester
• Connectors: Mainboard USB 2.0 header 500 mm
• SATA 500 mm

Fans

• 120 | 140
• Total Fans: 9 | 3
• Top: 3 | 2
• Front: – | –
• Side: 2 | –
• Rear: 1 | 1
• Bottom: 3 | –

Radiator

• 120 | 140
• Top: Max. 360 | –
• Front: – | –
• Side: Max. 240 Only with vertical GPU bracket | –
• Rear: – | –
• Bottom: – | –

Clearance

• CPU Cooler: Height: 184 mm | 7.24 in
• GPU: Length: 415 mm | 16.33 in
• GPU: Width: 184 mm | 7.24 in
• Power Supply: 270 mm | 10.62 in
• Top 360 Radiator: Length x Width x Height: 415 x 138 x 60 mm | 16.34 x 5.43 x 2.36 in
• Side 240 Radiator: Length x Width x Height: 305 x 120 x 62 mm | 12.00 x 4.72 x 2.44 in Only with vertical GPU bracket

Extra

• Net Weight: 7.91 kg | 17.44 lbs
• Gross Weight: 9.51 kg | 20.97 lbs
• Warranty: 5 Years Limited: Learn more
• Scope of Delivery:
  • 1x XT View Matrix chassis
  • 1x Storage bracket Pre-installed
• Accessory Box
  • 30x Zip ties
  • 1x Stand-off removal tool
  • 1x D-RGB mainboard adapter 500 mm
• Screws:
  • 30x Mainboard | SSD screws
  • 4x Power supply screws
  • 8x HDD screws
  • 4x Thumb screws
  • 4x Fan Screws 30 mm UNC6-32
  • 1x Mainboard stand-off
