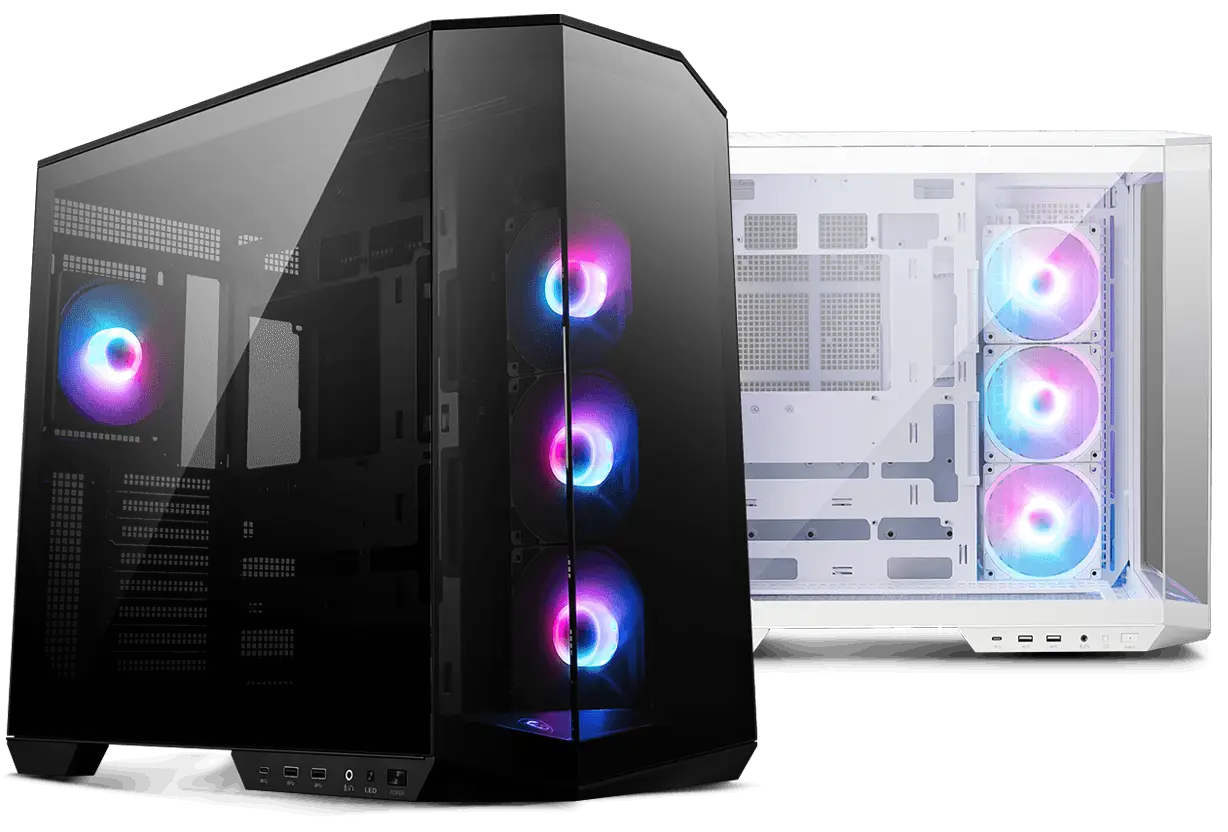

MSI MAG PANO 100R PZ White

Спецификации на MSI MAG PANO 100R PZ White ATX

MSI Midi MAG PANO 100R PZ White, 4711377231572, 306-7G26W22-HH9

MAG PANO 100R PZ / WHITE

• Supported ATX and Micro-ATX Back-connect motherboard.
• Supports 360 mm radiator on the top, side and bottom
• 270-degree panoramic tempered glass.
• Pre-installed with 3 x 120 mm ARGB Reverse-blade fan at the side and 1 x 120 mm ARGB fan at the rear.
• 1-to-4 ARGB-Fan control board.
• Synergize with a compatible MSI motherboard through bridging with a USB 20Gbps Type-C (20Gbps) port for high speed data transmission.
• Removable dust filter at the top, side and bottom being easily removed for cleaning.
• UNI front panel cable make your DIY process easier and create more possibilities to your system.

Drawing inspiration from the MAG logo, create a distinctive chassis design that embodies the unique MAG characteristics. The appearance design of the case adopts the MAG series brand symbol lines.

To meet the desire to show the ARGB PC build, the MAG PANO 100 Series comes with a 270-degree panoramic display, get more enhancement of aesthetically pleasing and cleanliness.

Chamfering Technique

Each piece of 4 mm tempered glass is cut at an angle to minimize every edge gap to make case appearance look more beautiful.

FEATURES

Support Back-Connect Motherboard
Supporting ATX and Micro-ATX Back-connect PROJECT ZERO motherboards enables easy installation without the worry of forgetting to connect cables, which might otherwise require disassembling graphics cards and coolers.

Upgraded Airflow Layout
At the bottom, there‘s a 40 mm clearance for optimal airflow, offering various intake and exhaust configuration choices.

Additionally, it supports the flexibility of mounting a 360mm radiator in a push-pull configuration, giving you the option to install it either on the side or bottom

270-degree Panoramic Display
Drawing inspiration from the MAG logo, create a distinctive chassis design that embodies the unique MAG characteristics. The front interior of the chassis incorporates a space for displaying figurines, complemented by a 270-degree panoramic tempered glass, transforming it into a showcase-style chassis.

Multi-function Storage Bracket
The multi-function storage bracket serves as a convenient tool for SSD installation and cable management, maintaining a clean and aesthetic appearance in the main chamber.

Switchable PCIe Brackets
Vertical GPU bracket supports installation of graphics card vertically without installing extra bracket and also can install 2 x 60 mm fans in the same time.

Pre-build with Reverse-blade Fan
Pre-installed on the side are reverse blade fans, allowing the unobstructed display of the ARGB fan's beauty without any interference from fan frames.

1 to 4 ARGB-FAN Control Board
This fan control board supports up to 4 x ARGB fan function. Allow you to use the LED switch button to adjust the ARGB lighting intuitionally.

SPECIFICATIONS

• Product Name MAG PANO 100R PZ
• Case Form Factor Mid Tower
• Motherboard Form Factor Support Regular: ATX / Micro-ATX / Mini-ITX
• Back-connect: ATX / Micro-ATX
• I/O Ports
  • 1 x USB 20Gbps Type-C
  • 2 x USB 5Gbps Type-A
  • 1 x Audio-Out / Mic-in
  • 1 x LED Switch Button
  • 1 x Power Button
• Drive Mount Support
  • 3 x 2.5”
  • 2 x 2.5”/3.5” combo
• Expansion Slots 8
• Maximum GPU Length 400 mm / 15.75 inches
• Maximum CPU Cooler Height 166 mm / 6.54 inches
• Power Supply Support ATX
• Maximum PSU Length 200 mm / 7.87 inches
• Fan Size Support
  • Top: 3 x 120 mm / 3 x 140 mm
  • Front: NA
  • Rear: 1 x 120 mm
  • Side: 3 x 120 mm / 2 x 140 mm
  • Bottom: 3 x 120 mm / 2 x 140 mm / 2 x 160 mm
• Pre-installed Fan Size
  • Side: 3 x 120 mm
  • Rear: 1 x 120 mm
• Pre-installed Fan Type
  • Side: 3 x ARGB Reverse-blade
  • Rear: 1 x ARGB
• Radiator Size Support
  • Top: 120 / 240 / 360 mm
  • Front: NA
  • Rear: 120 mm
  • Side: 120 / 240 / 360 mm
  • Bottom: 120 / 240 / 360 mm
• Dimensions (DxWxH) 518.7 x 290 x 482 mm / 20.42 x 11.42 x 18.98 inches
