Fractal Design Meshify 2 Mini Black TG Dark Tint

Спецификации на Fractal Design Meshify 2 Mini Black TG Dark Tint Micro ATX

Fractal Design Meshify 2 Mini Black TG Dark Tint FD-C-MES2M-01

The Meshify 2 Mini offers an excellent combination of airflow and flexibility, in a form-factor optimized for mATX. The bold yet refined exterior design, with its asymmetric angular mesh front, is complemented by a flush TG panel and a fully removable top.

• Iconic angular mesh front provides filtered airflow with a bold, stealth-inspired aesthetic
• Compact yet roomy interior makes the most of mATX with high space efficiency and robust component support
• Open interior layout creates a smooth airflow path from front intake to rear exhaust

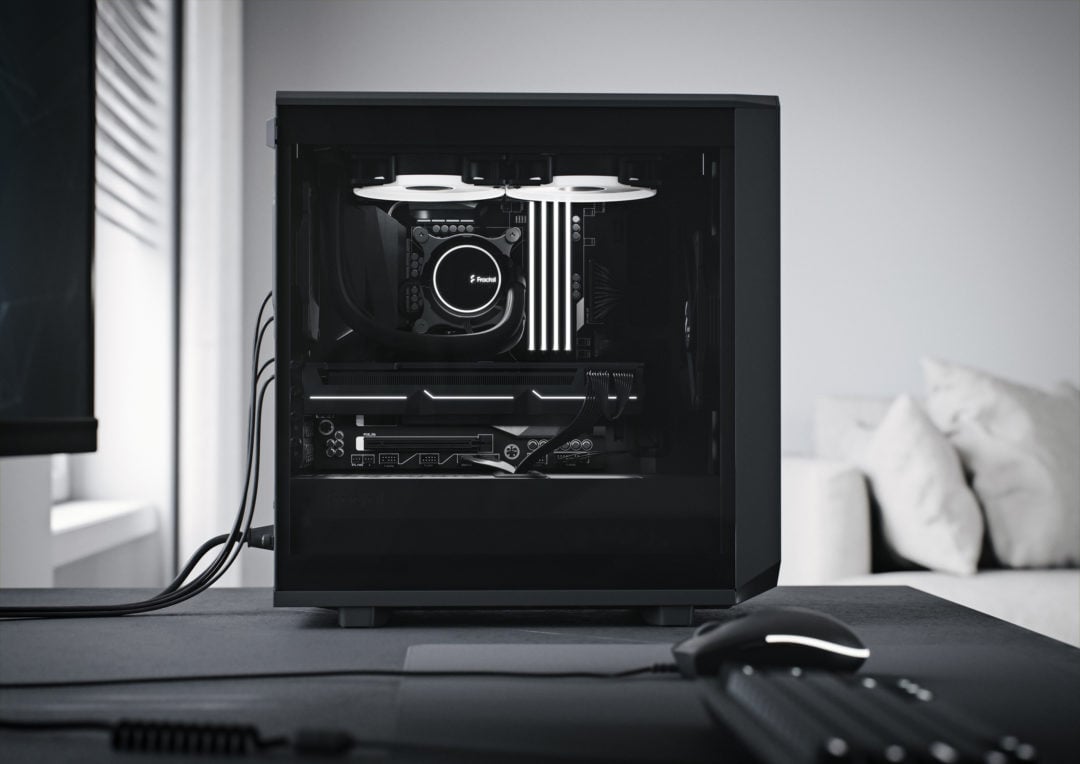

Slick and streamlined

• Compact yet roomy interior makes the most of mATX with high space efficiency and robust component support
• Room for GPUs up to 306 mm long including front fans with 331 mm total space
• Ventilated PSU shroud with two-part removable cover for optimal cable concealment and front radiator support

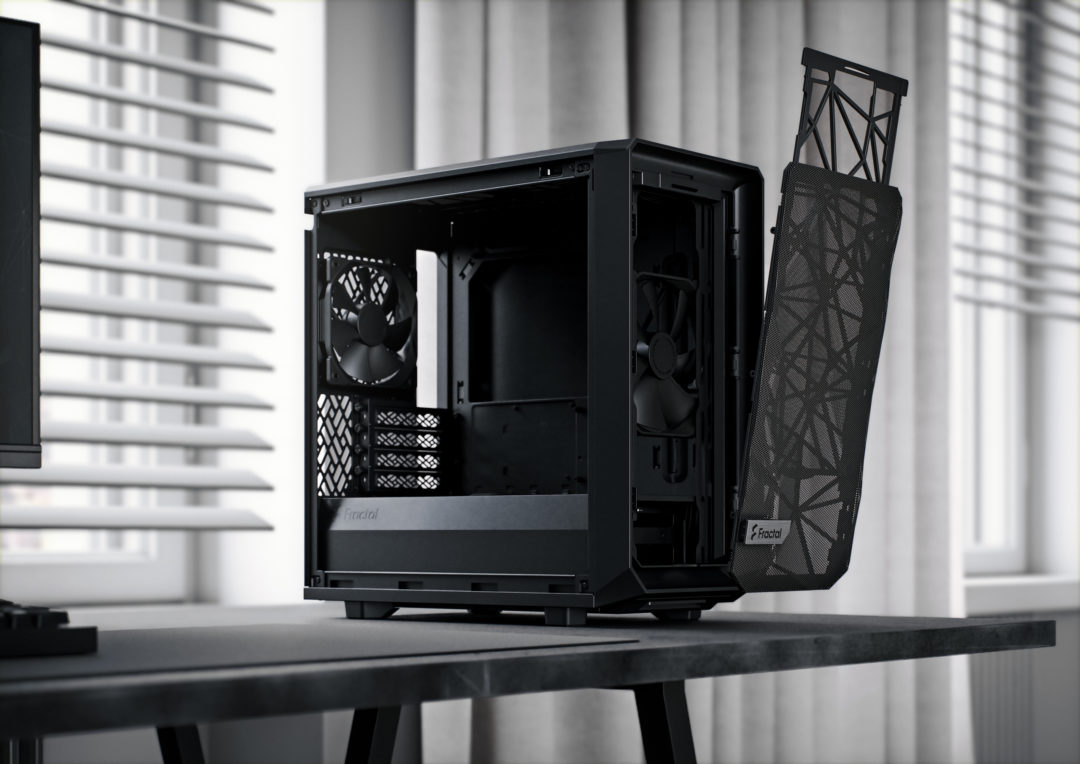

Detachable front filter

• Front panel design with hinged removable mesh filter and tether-free bezel for easier access to front fan mounts
• Double layered front filter with detachable nylon for increased airflow

Refined airflow

• The open interior layout creates a smooth airflow path from intake to rear exhaust
• Install up to 7x 120 mm or 4x 140 mm fans (1x 120 mm and 1x 140 mm Dynamic X2 GP fans included)

Specifications

• 3.5"/2.5" drive mounts: 2 (included)
• Dedicated 2.5" drive mounts: 4 (2 included)* max 8 mm drive height for mounts behind motherboard plate
• Expansion slots: 4
• Front interface: 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio I/O, Power button, Reset button
• Total fan mounts: 7x 120 mm or 4x 140 mm
• Front fan: 3x 120/ 2x 140 mm (1x Dynamic X2 GP-14 included)
• Top fan: 2x 120/140 mm
• Rear fan: 1x 120 mm (1x Dynamic X2 GP-12 included)
• Bottom fan: 1x 120 mm (requires removal of HDD cage)
• Dust filters: Top, front and bottom
• Cable routing space: 15-25 mm
• Cable routing grommets: Yes
• Fixed cable straps: Yes
• Tool-less push-to-lock: Top, front and side panels
• Captive thumbscrews: HDD, SSD and, PSU brackets
• Left side panel: Tempered glass
• Right side panel: Steel

Compatibility

• Motherboard compatibility: mATX / DTX / Mini-DTX / Mini ITX
• Power supply type: ATX
• Front radiator: Up to 240/280 mm
• Top radiator: Up to 240 mm
• Rear radiator: 120 mm
• Bottom radiator: 120 mm (without HDD Cage)
• PSU max length: 165 mm recommended with HDD cage (200 mm without HDD cage)
• GPU max length: 331 mm, 306 mm with front fan
• CPU cooler max height: 167 mm
• RAM max height: 35 mm

Dimensions

• Case dimensions (LxWxH): 396 x 205 x 406 mm
• Case dimensions w/o feet/protrusions/screws: 384 x 205 x 390 mm
• Net weight: 6,62 kg
• Package dimensions (LxWxH): 457 x 277 x 462 mm
• Gross weight: 7,68 kg

Other

• Package contents: Meshify 2 Mini case, User manual, Accessory box
• SKU: Black TG: FD-C-MES2M-01, White TG: FD-C-MES2M-02
• EAN: Black TG: 7340172702641, White TG: 7340172702658
• UPC: Black TG: 843276102647, White TG: 843276102654
• JAN: Black TG: 4537694278973, White TG: 4537694278980
• Warranty: 2 Years
