Fractal Design Meshify 2 Nano Black TG Dark Tint FD-C-MES2N-01

Спецификации на Fractal Design Meshify 2 Nano Black TG Dark Tint FD-C-MES2N-01 Mini-ITX

Fractal Design Meshify 2 Nano Black TG Dark Tint FD-C-MES2N-01

The Meshify 2 Nano offers ITX form-factor enthusiasts plenty of scope for creative builds, with excellent compatibility for its size.

The flexible design and angular asymmetry are complemented by a flush TG panel to showcase your finished build.

• Compact yet spacious interior accommodates all Mini ITX motherboards
• Iconic angular mesh front provides filtered airflow with a bold, stealth-inspired aesthetic
• Open interior layout creates a smooth airflow path from front intake to rear exhaust

A classic evolved

Robust cooling

• Pre-installed Dynamic X2 GP 1x 120 mm and 1x 140 mm fans ensure smooth airflow with minimal noise
• Install up to 6x 120 mm or 3x 140 mm fans and front radiators up to 280 mm
• Room for GPUs up to 306 mm long including front fans with 331 mm total space

All access

• Fully removable top panel and a top fan bracket that opens to provide excellent interior access and easy cable routing
• Easy-to-clean filters on the front, top and base with full PSU coverage and convenient front access
• Front filter with double layered detachable nylon for increased airflow

Slick and streamlined

The open interior layout creates a smooth airflow path from intake to rear exhaust

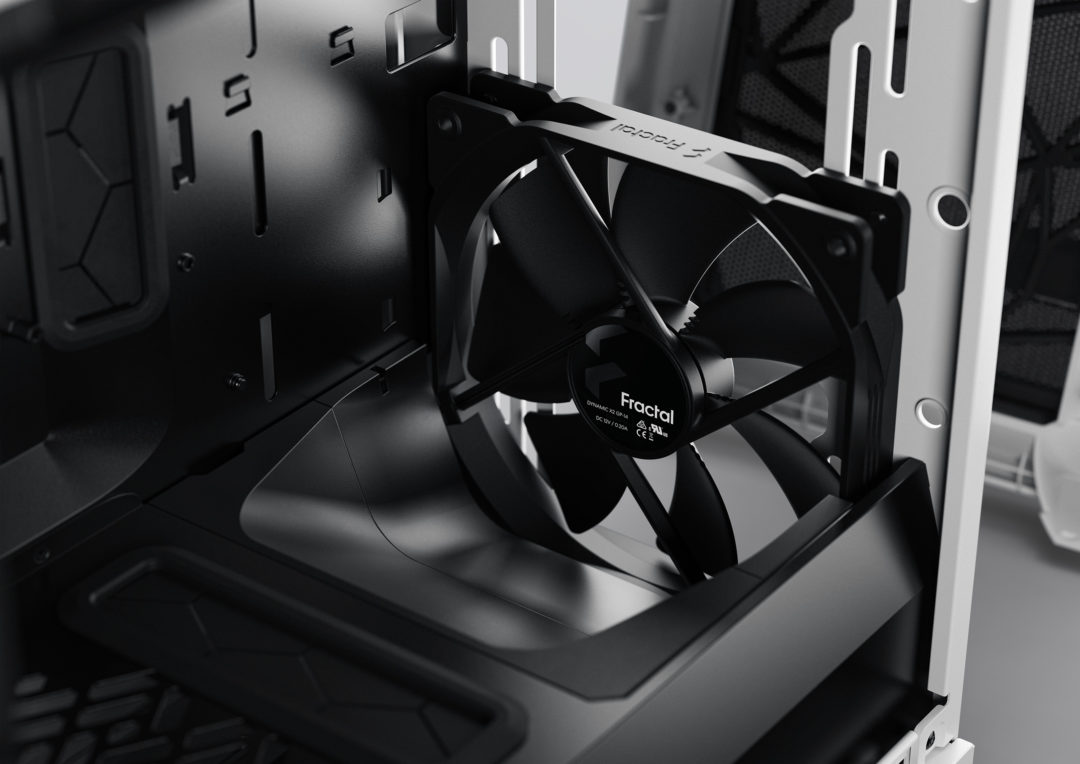

Guided airflow

• Two-part modular air duct for increased GPU airflow
• Bridgeless PCI expansion slots ensure unrestricted GPU exhaust

More in store

• Flexible storage option supporting one 3.5” drive and three 2.5’’ drives
• Integrated cable guides with cable straps further simplify cable management behind the board

Bolt-free glass

• Seamlessly integrated TG panel with steel frame support and bolt-free top-latching mechanism
• Front panel design with hinged removable mesh and tether-free bezel for easier access to front fan mounts

Specifications

• 3.5"/2.5" drive mounts: 1 (included)
• Dedicated 2.5" drive mounts: 3 (2 included)
• Expansion slots: 2
• Front interface: 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio I/O, Power button, Reset button
• Total fan mounts: 6x 120 mm or 3x 140 mm (Top 140 mm fans needs to be max 15 mm thick)
• Front fan: 2x 120/140 mm (1x Dynamic X2 GP-14 included)
• Top fan: 2x 120 or 1x 140 slim fan (max 15 mm thick)
• Rear fan: 1x 120 mm (1x Dynamic X2 GP-12 included)
• Bottom fan: 1x 120 mm (requires removal of HDD tray)
• Dust filters: Top, front and bottom
• Cable routing space: 15-25 mm
• Cable routing grommets: Yes
• Fixed cable straps: Yes
• Tool-less push-to-lock: Top, front and side panels
• Captive thumbscrews: SSD and PSU brackets
• Left side panel: Tempered glass
• Right side panel: Steel

Compatibility

• Motherboard compatibility: Mini ITX / Mini-DTX
• Power supply type: ATX
• Front radiator: 120/240, 140/280 mm (316 mm max height, 146 mm max width, 280 recommended in “push” configuration for easier fit)
• Top radiator: N/A
• Rear radiator: 120 mm
• Bottom radiator: N/A
• PSU max length: 165 mm recommended (200 mm without HDD-tray and modular air duct)
• GPU max length: 331 mm 306 mm with front fan
• GPU max thickness: 57 mm / 2.8 slot
• CPU cooler max height: 167 mm

Dimensions

• Case dimensions (LxWxH): 396 x 205 x 361 mm
• Case dimensions w/o feet/protrusions/screws: 384 x 205 x 345 mm
• Net weight: 5.9kg (TG)
• Package dimensions (LxWxH): 412 x 277 x 462 mm
• Gross weight: 7.1kg (TG)

Other

• Package contents: Meshify 2 Nano case, User manual, Accessory box
• SKU: Black TG: FD-C-MES2N-01, White TG: FD-C-MES2N-02
• EAN: Black TG: 7340172702627, White TG: 7340172702634
• UPC: Black TG: 843276102623, White TG: 843276102630
• JAN: Black TG: 4537694278959, White TG: 4537694278966
• Warranty: 2 Years
