MSI MEG MAESTRO 700L PZ

Спецификации на MSI MEG MAESTRO 700L PZ E-ATX

MSI MEG MAESTRO 700L PZ

The MEG, an artifact infused with the ancient world's mystical powers, breathes its divine essence into the creation of the MEG MAESTRO 700L PZ.

Crafted in unparalleled artistry and technological brilliance, this chassis proudly bears the emblem — a tribute to the timeless legacy of the MEG.

ALUMINUM UNIBODY CHASSIS

The casing presents a meticulously designed feature with an intricate hairline texture, creating an elegant and distinctive appearance. This texture not only enhances the overall aesthetics but also reflects a meticulous attention to detail.

The coding on the chassis reflects the unique ideas and creativity of each individual when it comes to their PC BUILD.

This case features a one-piece 270-degree tempered glass with a safety film , providing a panoramic view of the interior without obstructive metal at the corners, ensuring a seamless showcase of internal components.

HARDWARE COMPATIBILITY

The gaming cases offers extensive support for the installation of your hardware components.

Supporting Back-connect motherboards not only simplifies the installation process but also makes it easy to cable management. Additionally, it prevents interfering with cables in front of the motherboard, keeping the interior of the case a lot cleaner.

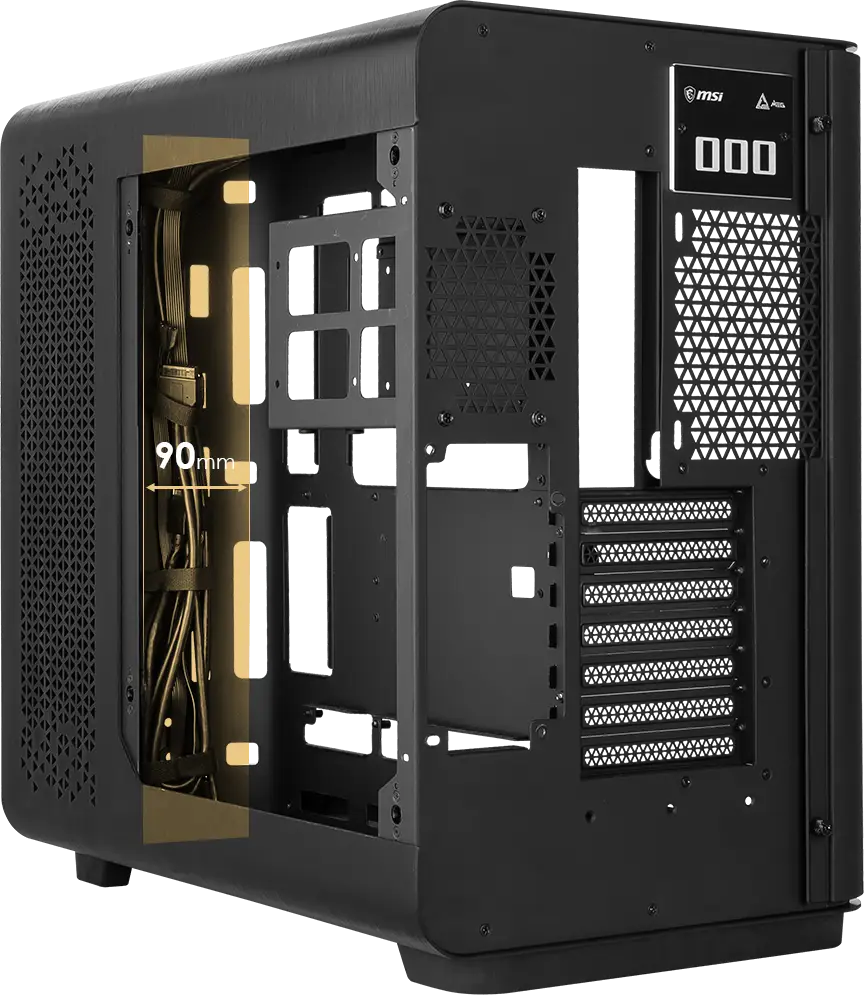

Enlarge cable routing space

This case reserves ample space for cable routing, ensuring expedited and simplified cable management processes.

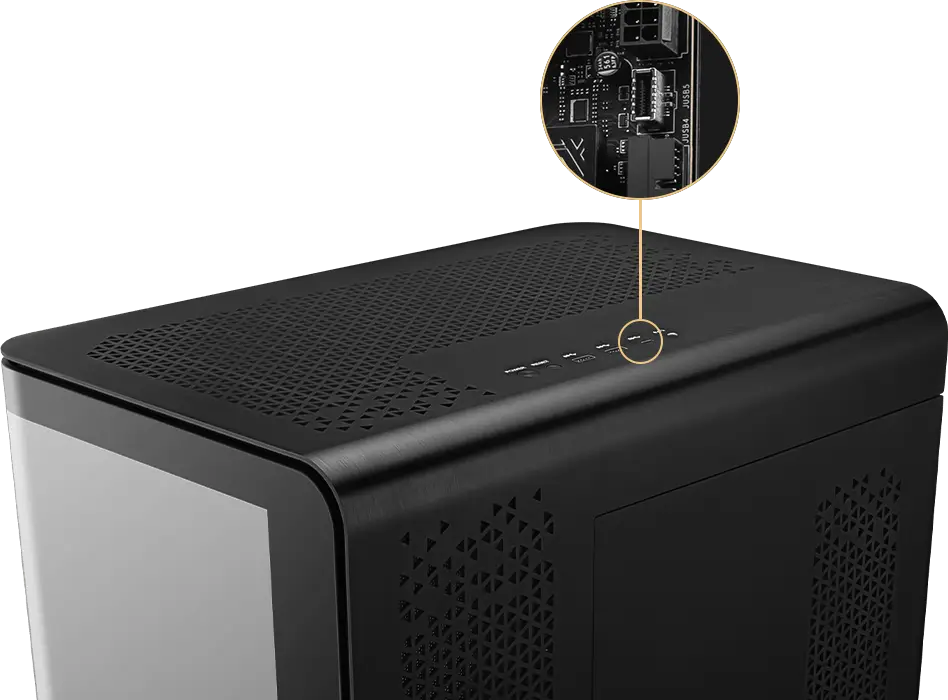

usb 3.2 Gen 2x2 Type-C

Synergize with MSI motherboard through bridging with a USB 3.2 Gen 2x2 Type-C port for 20 Gbps high speed data transmission.

FEATURES

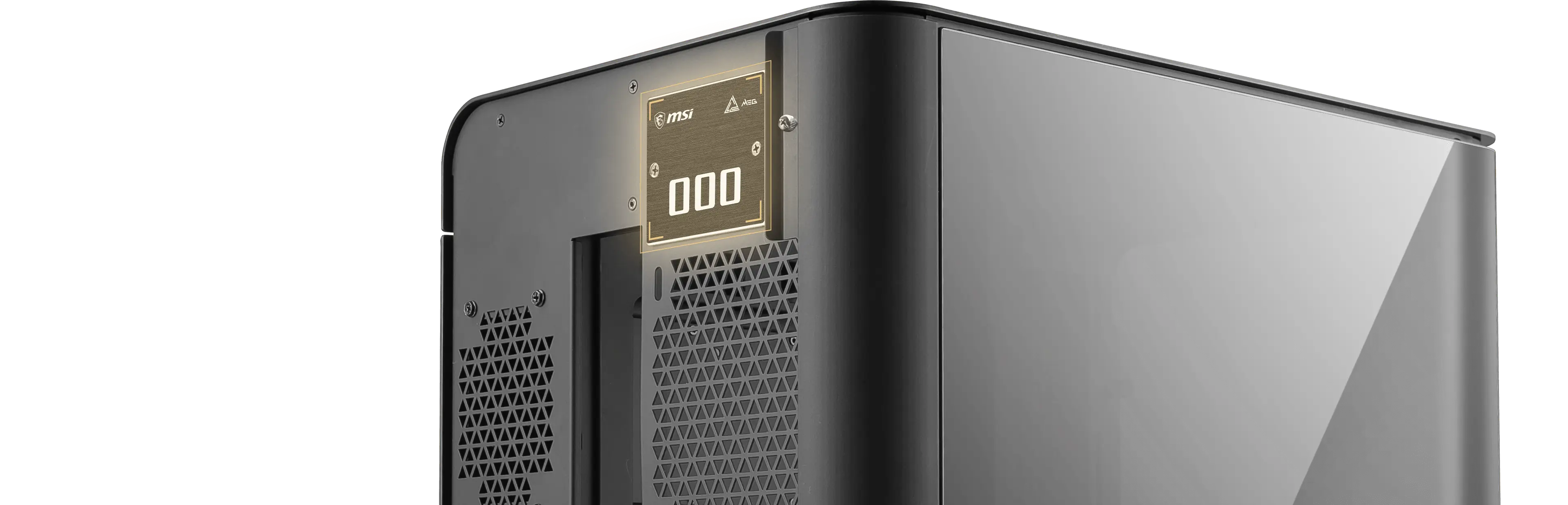

Exemplary Craftsmanship
The limited edition chassis with unique encoding and design with 2.5 mm thick aluminum right side panel with the NCT cutting triangular ventilation, the whole chassis has more than 3600 triangular holes to improve heat dissipation.

Triple 360 mm Radiator Support
The top/side/bottom panels can support 360 mm AIO liquid cooler or a custom liquid cooling loop with more than one radiator.

Support Back-Connect Motherboard
Supporting ATX back-connect motherboards enables easy installation without the worry of forgetting to connect cables, which might otherwise require disassembling graphics cards and coolers.

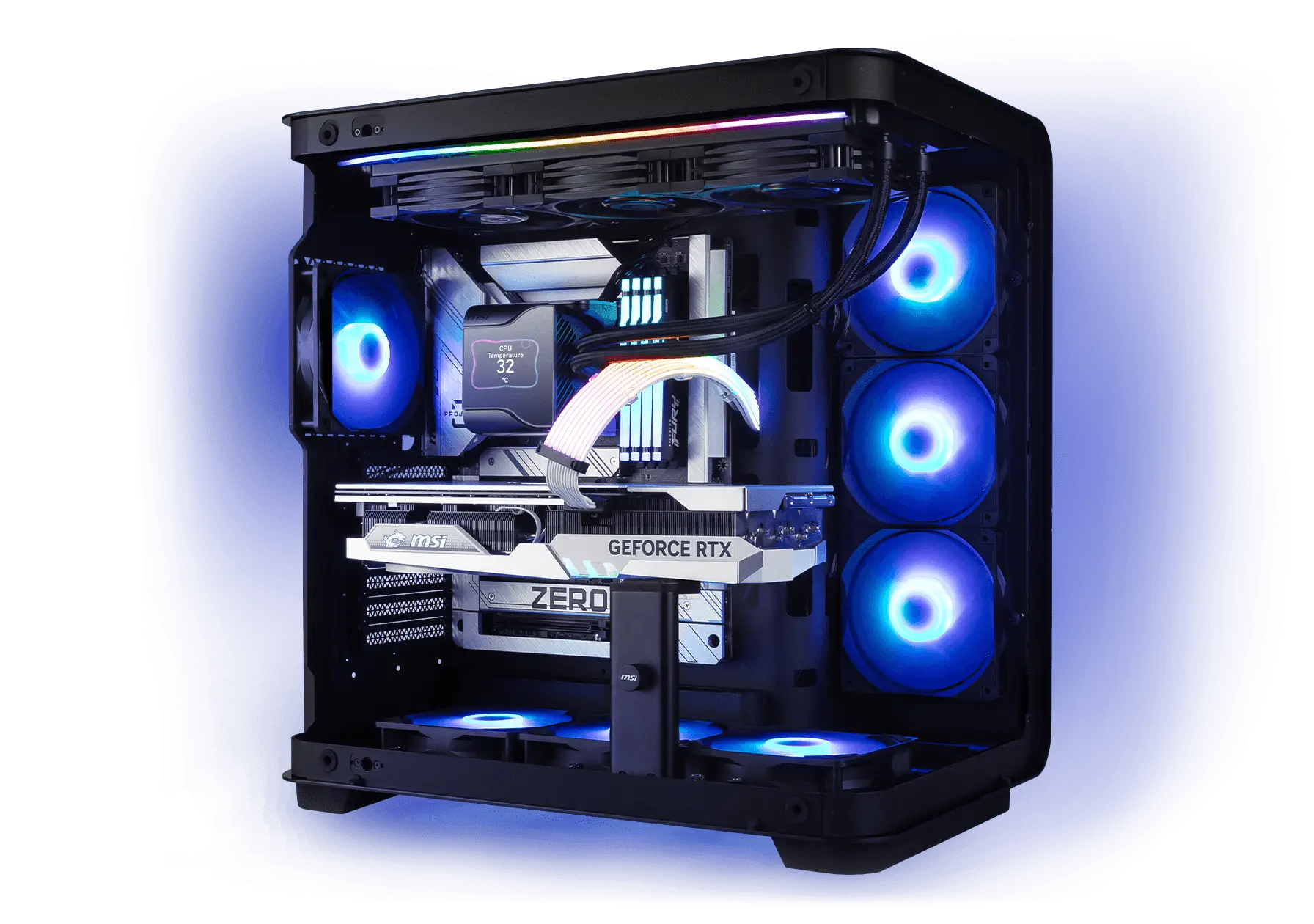

Graphics Card Support
Exclusive horizontal graphics card stand is able to support longer and winder high-end graphics card. Also end users can choose to use the embedded vertical graphics card bracket to display graphics card for various system build show case.

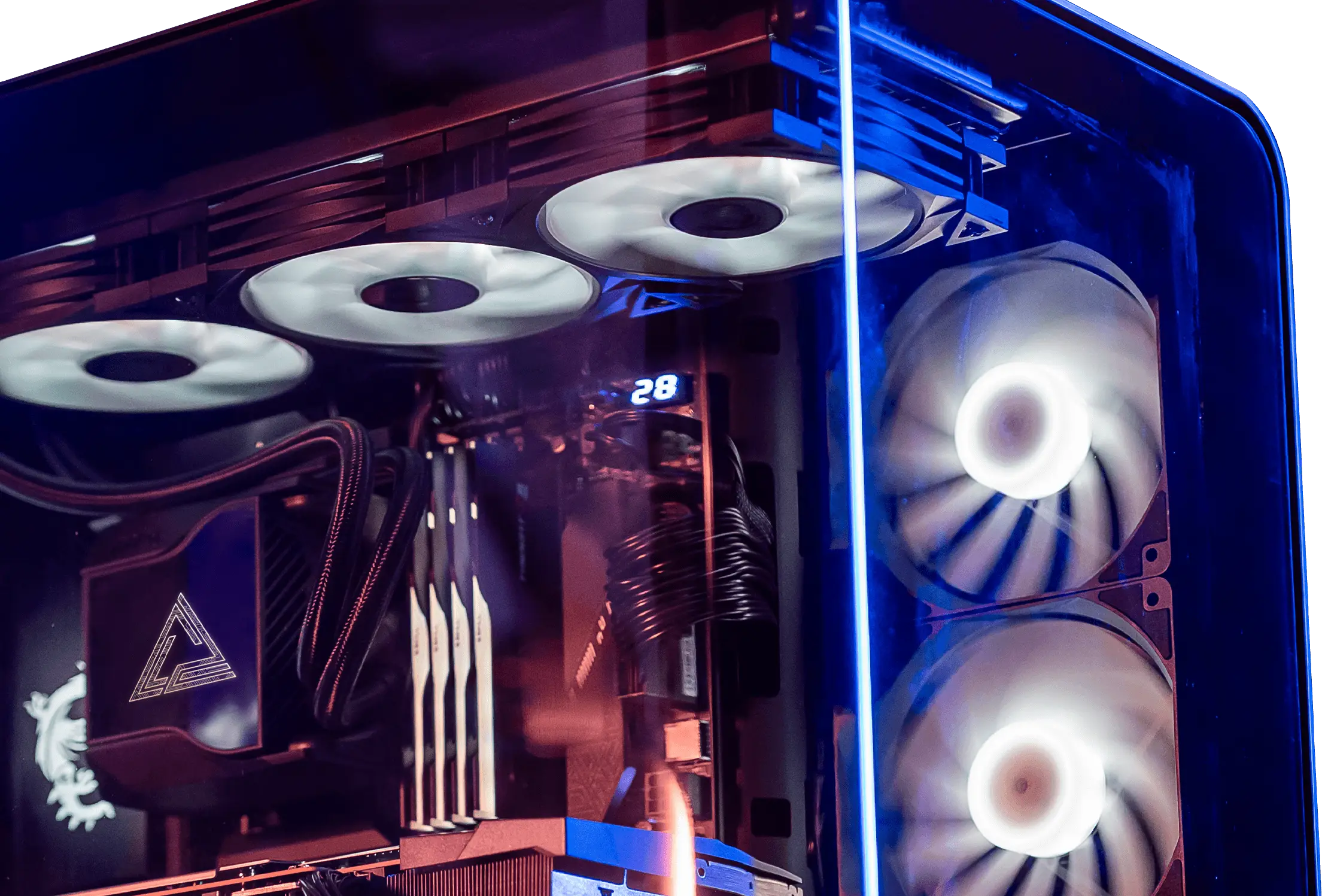

Single piece 270-Degree Panoramic Display
Show off the components by a single piece 270-degree panoramic tempered glass, transforming it into a showcase-style chassis.

Dual Chamber Construction
The dual chamber structure design provides users can build system without difficulty of cable management.

SPECIFICATIONS

• Product Name MEG MAESTRO 700L PZ
• Case Form Factor Mid-Tower
• Motherboard Form Factor Support
  • E-ATX (up to 305 x 280 mm)
  • ATX (Back-connect supported)
  • M-ATX / ITX
• I/O Ports
  • 1 x Power Button
  • 1 x Reset Button
  • 2 x USB 3.2 Gen 1 Type-A
  • 1 x USB 3.2 Gen 2x2 Type-C
  • 1 x Audio-Out / Mic-in
• Drive Mount Support 2 x 2.5”/3.5" combo bay
• Expansion Slots 7
• Maximum GPU Length 430 mm / 16.93 inches
• Maximum CPU Cooler Height 170 mm / 6.69 inches
• Power Supply Support ATX
• Maximum PSU Length 230 mm / 9.06 inches
• Fan Size Support
  • Top: 3 x 120 mm / 3 x 140 mm
  • Front: NA
  • Rear: 1 x 120 mm
  • Side: 3 x 120 mm
  • Bottom: 3 x 120 mm / 3 x 140 mm
• Pre-installed Fan Size NA
• Pre-installed Fan Type NA
• Radiator Size Support
  • Top: 120 / 240 / 280 / 360 mm (thickness: 80 mm)
  • Front: NA
  • Rear: 120 mm
  • Side: 120 / 240 / 360 mm (thickness: 80 mm)
  • Bottom: 120 / 240 / 280 / 360 mm
• Dimensions (DxWxH) 470 x 300 x 474 mm / 18.5 x 11.81 x 18.66 inches
